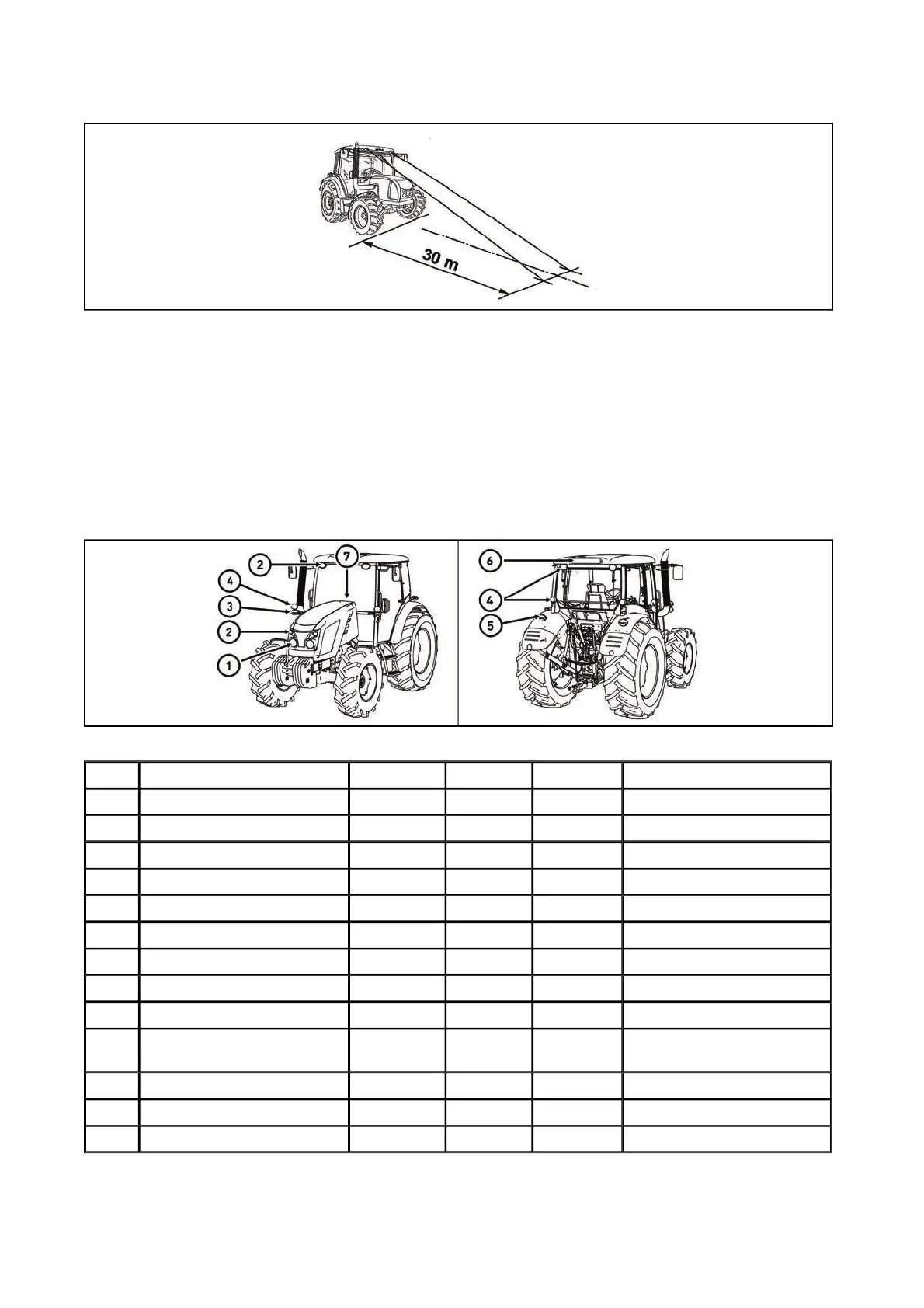

Checking the adjustment of the cab roof headlights
G611
In the vertical direction there must not be any point of illuminated area lying on the road surface plane to the
left from the longitudinal vertical plane passing through the headlight centre further than 30 m from the front
outline of the tractor.
In the horizontal direction the light beams must be parallel with the longitudinal axis of symmetry of the
tractor.
Check the adjustment of the headlights at the shipping weight of the tractor. The front roof headlights may
only be used when driving on public roads when the tractor carries a frontally attached machine or implement
covering the main headlights (in the tractor grill).
List of lamps
P15N068
Pos. Lamp position Voltage Power Socket Note
1 Main headlights H4 12 V 55/60 W P 43t
2 Lower beam headlights H7 12 V 55 W PX26d
3 Front combined headlights
Turn signal lights P21W 12 V 21 W BA 15s
Position lights R5W 12 V 5 W BA 15s
4 Working and ploughing lights 12 V 65 W PGJ19-5
5 Rear combined lights
Tail lights and brake lights 12 V 5 /21W BAY 15d
Turn signal lights 12 V 21 W BA 15s
6
Registration no. lighting
C5W
12 V 2x5 W SV 8,5-8
7 Dashboard, switches 12 V 2 W W2x4,6d illumination
8 Cabin lighting 12 V 5 W SV 8,5-8 All-glass without base
9 Heating panel lighting 12 V 1,2 W W2x4,6d
