Heating control panel, * ai
r
-condition
Heating valve control (A)
Ventilator control (B)
Switch air-condition (C)

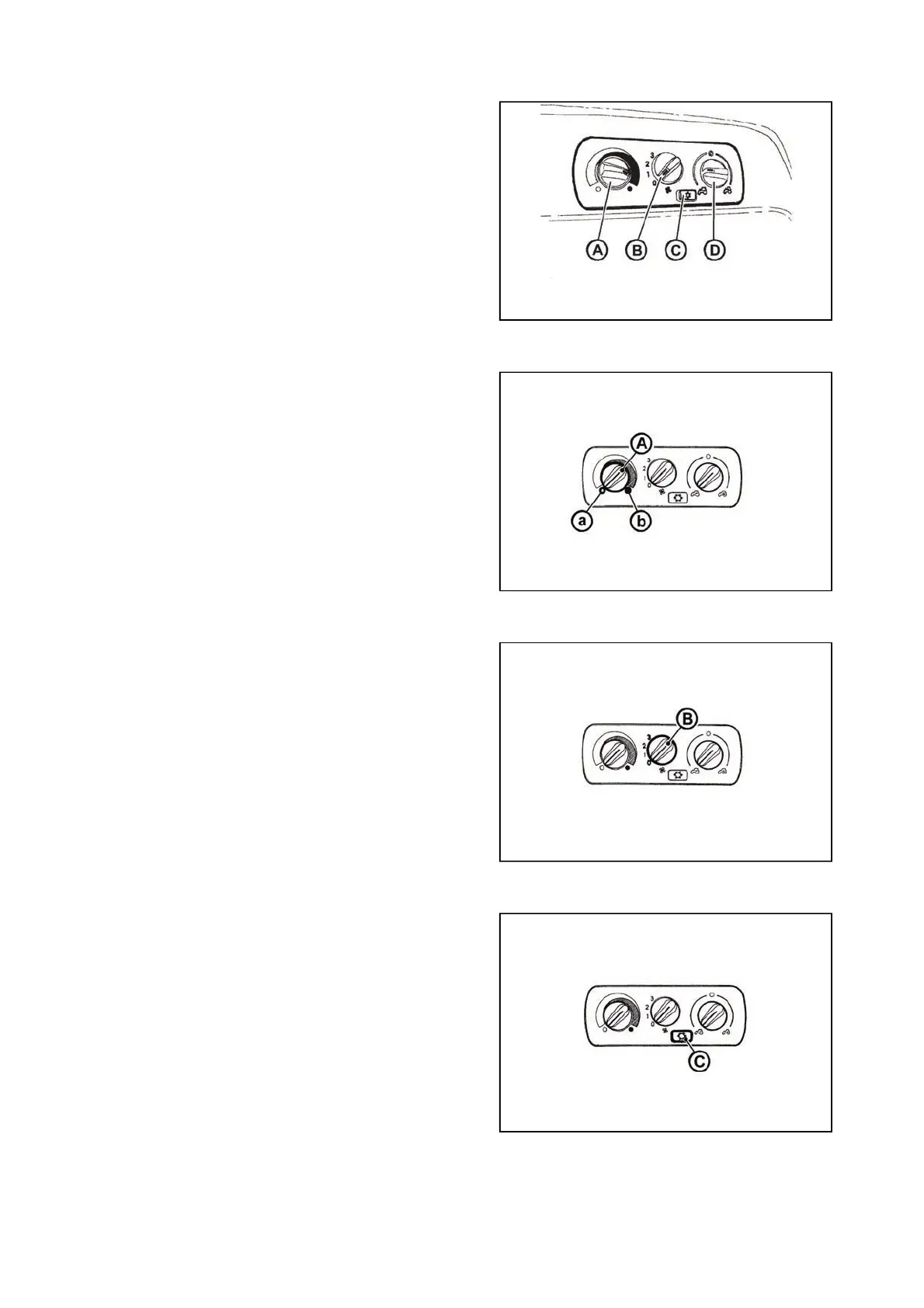

The control panel of the heating and of the air conditioning
is located on the right side of the lower view of the cabin
roof.
A - valve heating controller
B - fan controller
C - air conditioner switch
D - controller of air circulation in the cabin
F13BN009
a - heating valve closed
b - heating valve opened
F_02_16_a
0 - ventilator off
1 - slowly run of ventilator
2 - medium run of ventilator
3 - maximum run of ventilator
F_02_16_b
Do engagement and disengagement of air-condition
system function by switching the switch with a symbol of
snow flake (C).
You will set the air-condition system going by pressing the
switch (the symbol of snow flake lights up).
You will disengage the air-condition system by repeated
press of switch (snow flake symbol switches off).
F_02_17a
