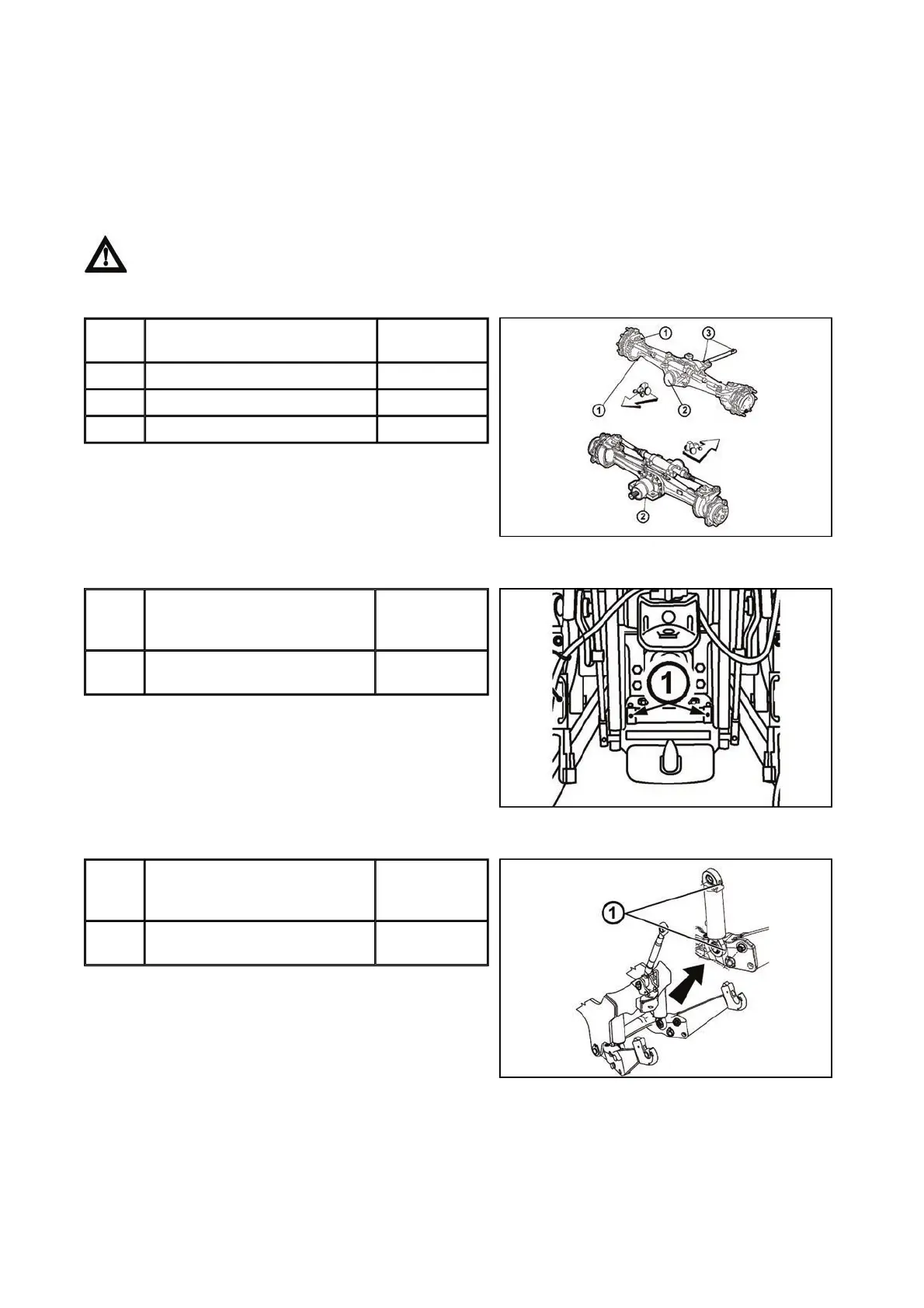

Tractor greasing plan
Safety instructions for lubrication of the tractor
z The tractor maintenance may be performed only by the trained personnel thoroughly familiarized with
operational and safety principles.
z During maintenance of the tractor wear appropriate (specified) personal protective equipment
(occupational footwear, protective gloves, safety goggles, etc.).
z Prior to starting the work, secure the tractor against movement using manual brake.
Lubrication must be performed only when the engine is at standstill!
Solid front drive axle
Hitch for a single-axle semi-trailer
Front three-point hitch
Pos.
No.
Name Number of
lubr. points
1 Kingpins 4
2 Central pin 2
3 Connecting shaft coupling 2
8P
Pos.
no.
Identification No. of
lubrication
points
1 Hook pin bearings 0 to 4
(by version)
01F
Pos.
no.
Identification No. of
lubrication
points
1 Pins of cylinders of the front
three-point hitch
4
02F
