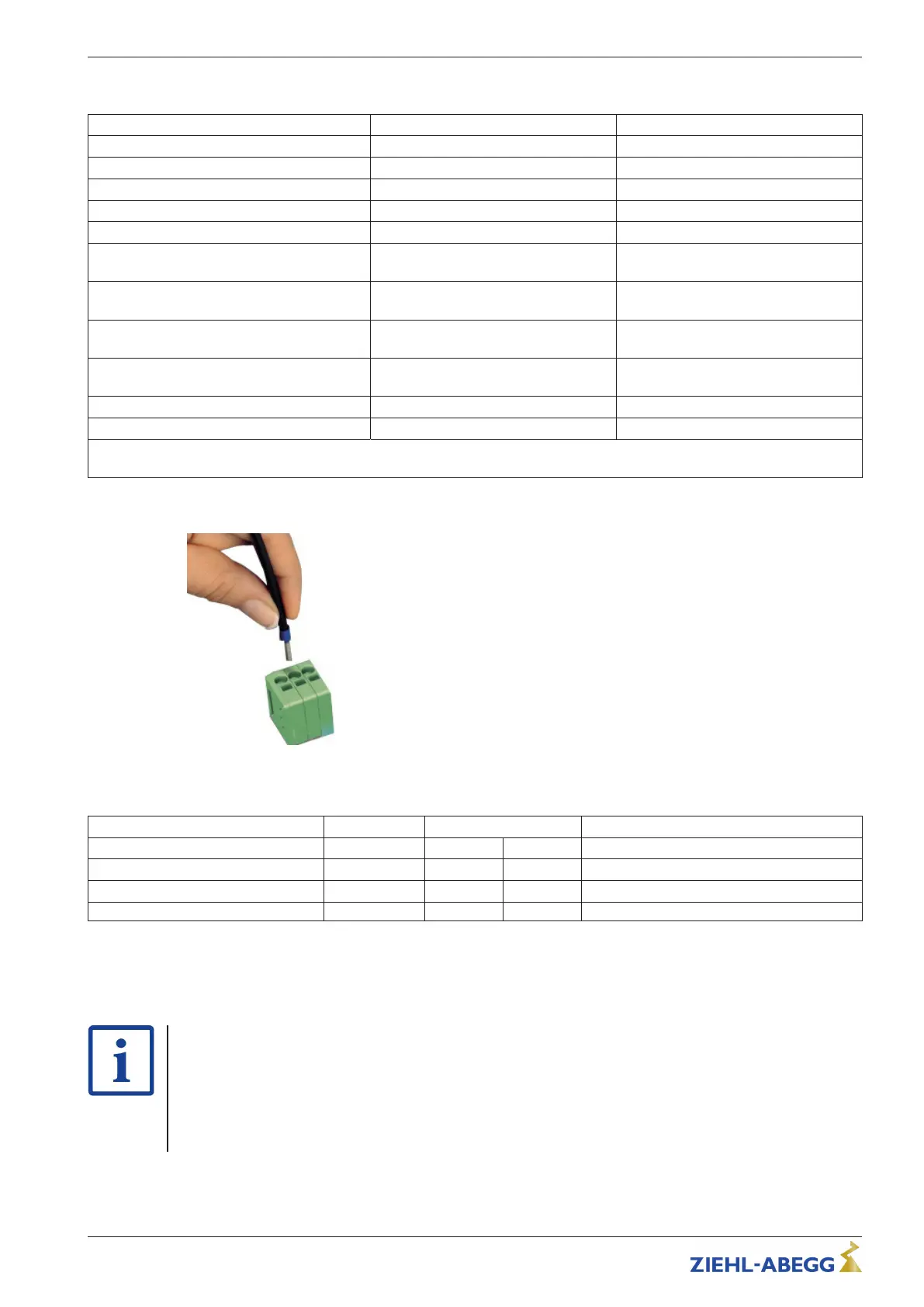

Connection data of terminals
Terminal
Line, relay Brake control
Stripping length 10 mm 10 mm
Conductor cross-section rigid min. 0.2 mm
2
0.2 mm
2
Conductor cross-section rigid max. 4 mm
2
1.5 mm
2
Conductor cross-section flexible min. 0.2 mm
2
0.2 mm
2
Conductor cross-section flexible max. 2.5 mm
2
1.5 mm
2
Conductor cross section flexible with wire end
ferrule without plastic sleeve min.
0.25 mm
2
(stripping length 8 mm) 0.25 mm
2
(stripping length 8 mm)
Conductor cross section flexible with wire end
ferrule without plastic sleeve max.
2.5 mm
2
(stripping length 8 mm) 1.5 mm
2
(stripping length 8 mm)
Conductor cross section flexible with wire end
ferrule with plastic sleeve min.
0.25 mm
2
(stripping length 8 mm) 0.25 mm
2
(stripping length 8 mm)
Conductor cross section flexible with wire end
ferrule with plastic sleeve max.
1.5 mm
2
(stripping length 8 mm) 0.75 mm
2
(stripping length 8 mm)
Conductor cross-section AWG/kcmil min. 24 24
Conductor cross-section AWG/kcmil max. 12 16
The data refer to the connection possibilities of the terminals. The necessary conductor cross section must be dimensioned
according to the respective prevailing conditions.
Push-In Terminals
Rigid conductors and conductors with wire end ferrules can be plugged directly into
the terminal without tools.
Permissible tightening torques M
A
Thread size Tightening torque M
A
Remarks
[Nm] [Lb In]
Cable gland
M16x1.5 2.5
22 Sealing area: cable diameter 4…10 mm
Cover for terminal compartment *
4.0 2.5
22
* Recommended tightening speed maximum 400 min
-1
5.3 Version with connection cables
Information
•
In versions with connecting leads the connection is made to the colour coded wires. Note the cable
bands on the connecting leads and the respective connection diagram.
•
The type, length, colour coding and connection assignment of the connecting leads may vary
depending on the version.
•
Read the following chapter “Version without connection cables” for a new connection to the
terminals in the terminal compartment.
Assembly instructions ECblue Electrical installation
L-BAL-F055D-GB 2021/51 Index 006 Part.-No.
18/56
