8 Programming by hand held terminal A-G-247NW
8.1 Information
The menu language can be set on the hand held terminal type A-G-247NW (see operating instruc-
tions). The text in the graphic display (left column) is shown in the factory-set menu language English.

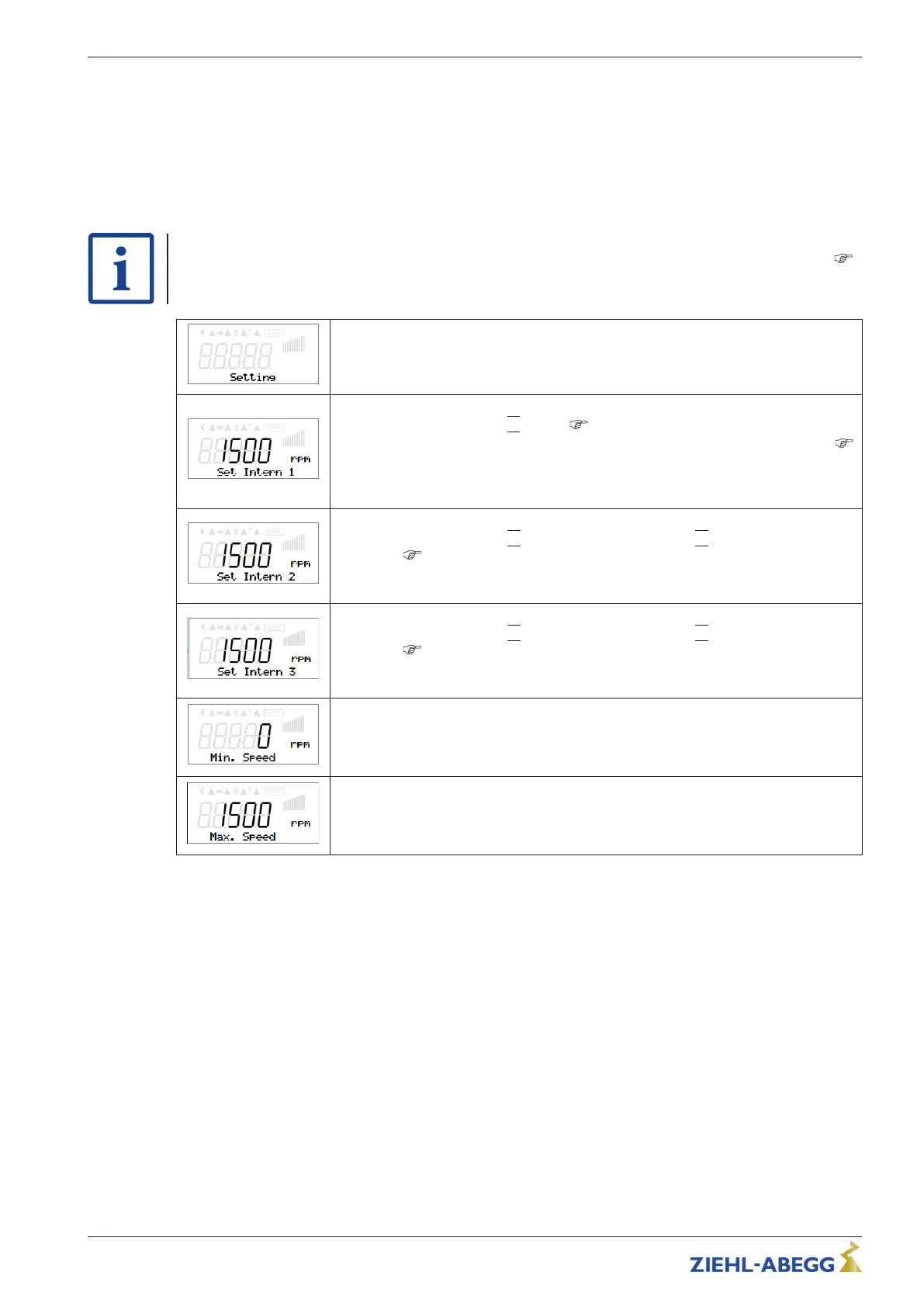

8.2 Menu group Setting
Information
Factory setting: Activation by external signal (0 - 10 V / PWM) at input “E1” (control mode = 0
Controller Setup). I.e. the following settings “Set Internal1”, “Set Internal2”, “Set Internal3” are not
active!
Setting
Set Internal1
Setting only in Controlmode
| 4 | active ( Controller Setup).
Via the inputs “D1” / “E1” it is possible to switch to “Set Internal2” or “Set Internal3” (
IO Setup).
Setting range manual speed setting: 0...100 % (Rated speed)
Factory setting*: 100 % (Rated speed)
Set Internal2
Setting only in control mode
| 5 | active only in control mode | 4 | , if activated via inputs
“D1” / “E1” (
Controller Setup / IO Setup).
Setting range manual speed setting: 0...100 % (Rated speed)
Factory setting*: 100 % (Rated speed)
Set Internal3
Setting only in control mode
| 6 | active only in control mode | 4 | , if activated via inputs
“D1” / “E1” (
Controller Setup / IO Setup).
Setting range manual speed setting: 0...100 % (Rated speed)
Factory setting*: 100 % (Rated speed)
Min. Speed
The basic speed is active in every control mode.
Setting range: 0...100 % (Rated speed)
Factory setting*: 0 %
Max. Speed
The speed limiting is active in every control mode.
Setting range: 100 % (Rated speed)... “Min.Speed”
Factory setting*: 100 % (Rated speed)
* Specifications not binding, these values can differe depending on the software version and customer-specific pre-setting.
Assembly instructions ECblue Programming by hand held terminal A-G-247NW
L-BAL-F055D-GB 2021/51 Index 006 Part.-No.
29/56
