Section 2 Ventilation
100mm
Vent tray
The supplied vent
tray must be fitted. It
provides a safe exhaust
for refrigerant gas in the
unlikely event of a leak.
4mm door buffers
(supplied)
• Cold air is drawn in through the inlet vent and gap provided by the door buffers.
• The inlet vent is positioned in the cupboard side, door or floor.
• Warm air is exhausted through vent tray.
• Observe 100mm inlet / outlet vent separation.
Air inlet options
Air outlet

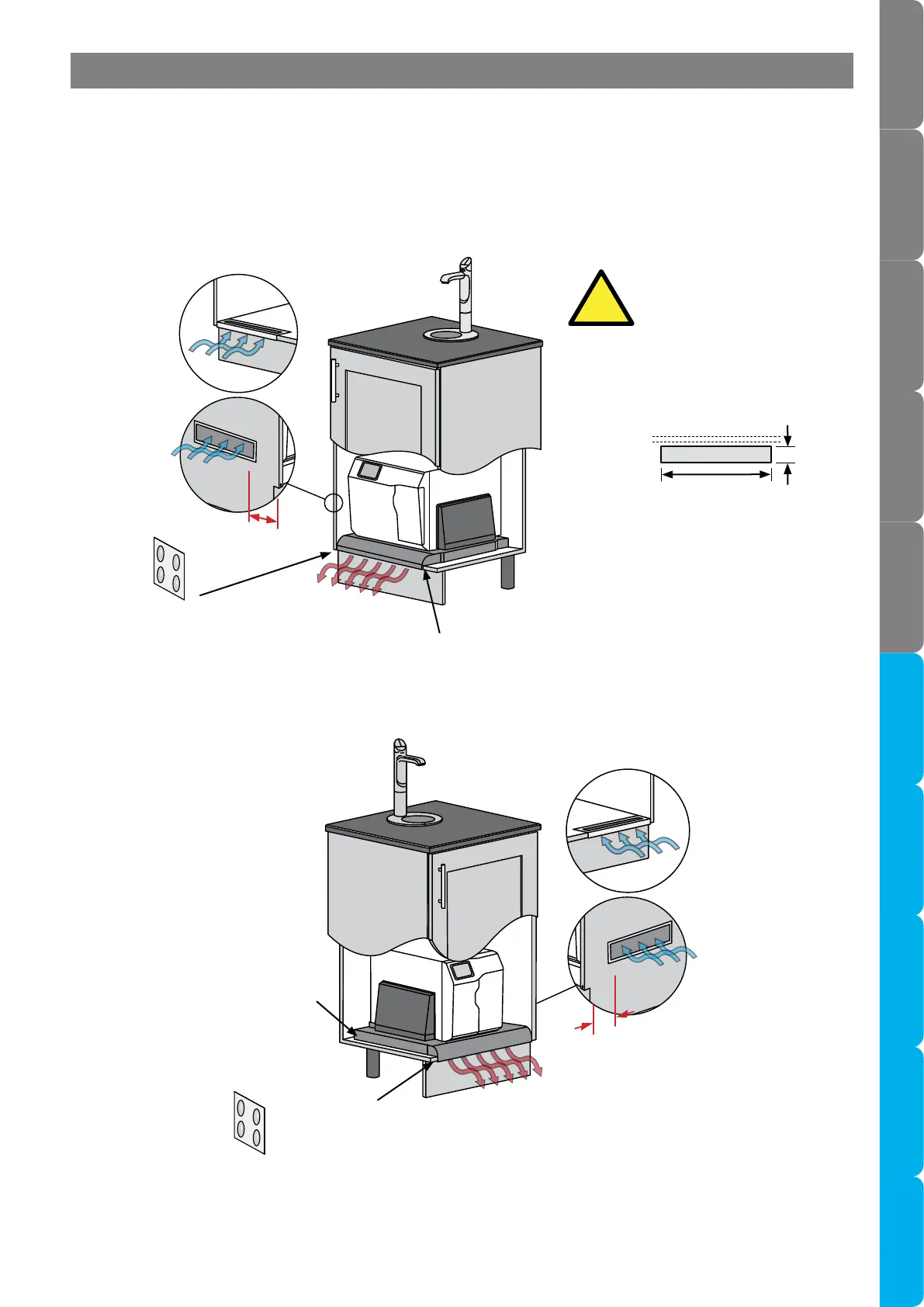

2.2 Models with side vent and tray (BCS60, BCS100; BC40, BC60, BC100; CS100, C100)
Vent tray dimensions
WxDxH (mm):
500 x (515-555) x 40
Vent tray exhaust cut-out
450
40
100mm
Vent tray
4mm door buffers
(supplied)
Air outlet
Air inlet options
