Section 2 Ventilation
2.4 Ambient vented models (BCS20, BCS30 & BCS Home; BC20, BC30 & BC
Home, C40, CS Home, C Home; B60, B100, BA60, BA100, B Home, BA Home)
4mm door buffers
(supplied)

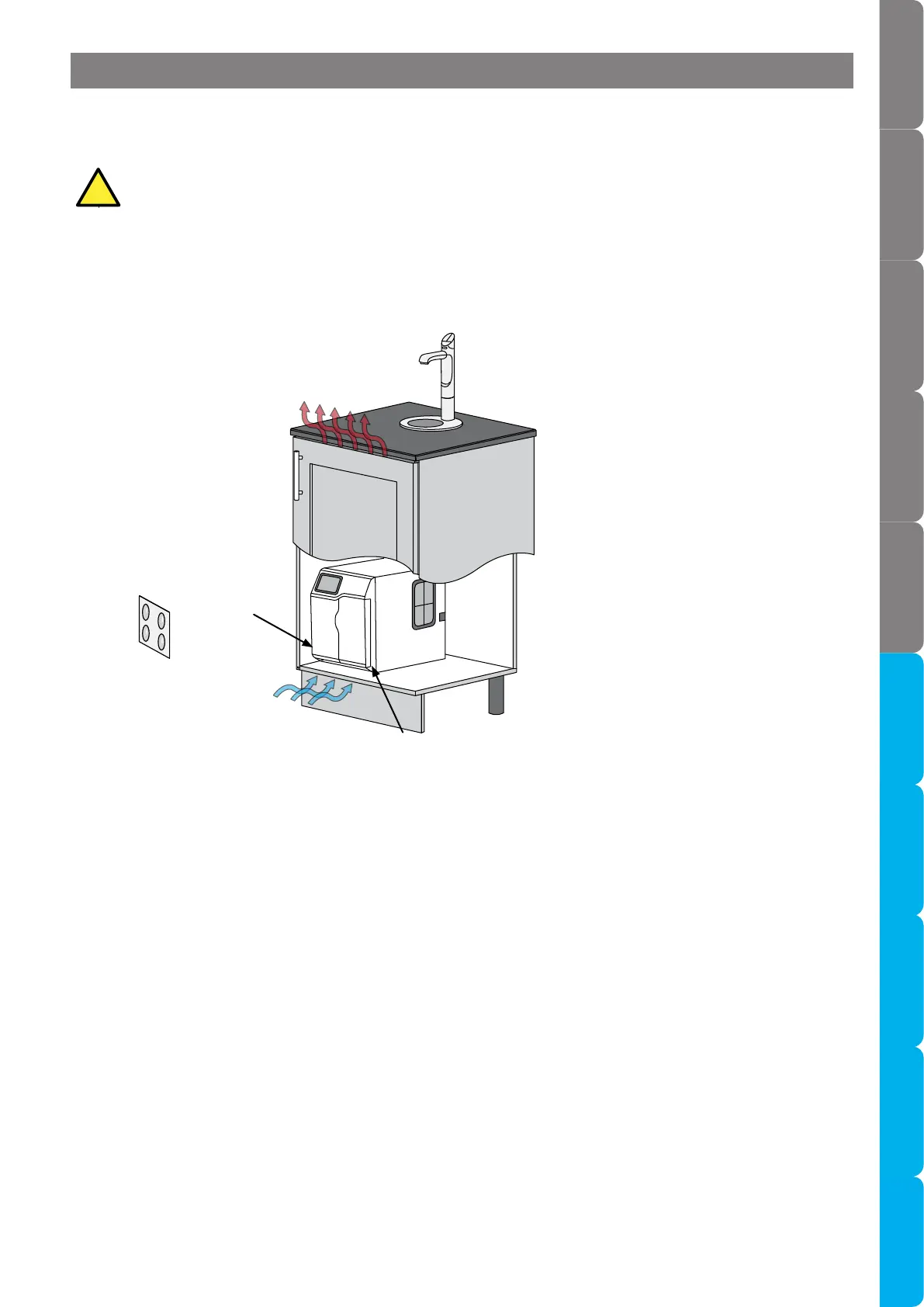

Inlet vent
• Cold air is drawn in through the inlet vent and lower gap provided by the door buffers.
• The inlet vent is positioned in the cupboard side, door or floor.
• Warm air is exhausted through upper gap provided by the door buffers.
Air inlet
Air outlet
This ventilation system must NOT be used for models utilising R290 refrigerant, including ALL
UK chilled models. In the unlikely event of a leak, this system will NOT adequately vent the
refrigerant.
