ZIPWAKE DYNAMIC TRIM CONTROL SYSTEM - FOR INTEGRATION 5
2 SYSTEM OVERVIEW
The Dynamic Trim Control System for integration
incorporates an integrator module and a
state-of-the-art family of durable, fast-acting interceptors perfectly
engineered for boats up
to 30 m (100 ft). The integrator module provides connections for wired system integration
and wireless communication. All Zipwake functions are integrated and controlled from
multifunction display(s) (MFD) or other external/mobile device(s). The user-friendly
interface provides the helmsman with intuitive and precise control of running trim, heel or
heading. The system is fully automatic and significantly enhances the boat’s performance,
fuel economy, comfort and safety.
KEY FEATURES
AUTO PITCH CONTROL
The system will automatically adjust the trim or pitch angle of your boat, minimizing
wave resistance for best performance and comfort at all speeds (chapter 8).
AUTO ROLL CONTROL - FULL AUTO
The system will automatically eliminate uncomfortable and dangerous boat roll in addition
to controlling the trim or pitch angle. The system
constantly works to keep the boat level
or to make balanced (banked) turns (chapter 8).
MANUAL ATTITUDE CONTROL
When in manual mode, the boat’s running attitude (chapter 7) can be controlled from the
interface by using the manual control buttons to adjust the trim and the list angle.
INTEGRATED MONITORING AND SYSTEM CONTROL
The system is monitored and/or controlled from MFD(s), plotter(s) or other external/mobile
device(s) etc. The system can also be controlled by optional Zipwake mini controller(s)
or Zipwake Control Panel(s) (refer to the Series S or E Operator’s manual). The system is
NMEA 2000® certified (chapter 13).

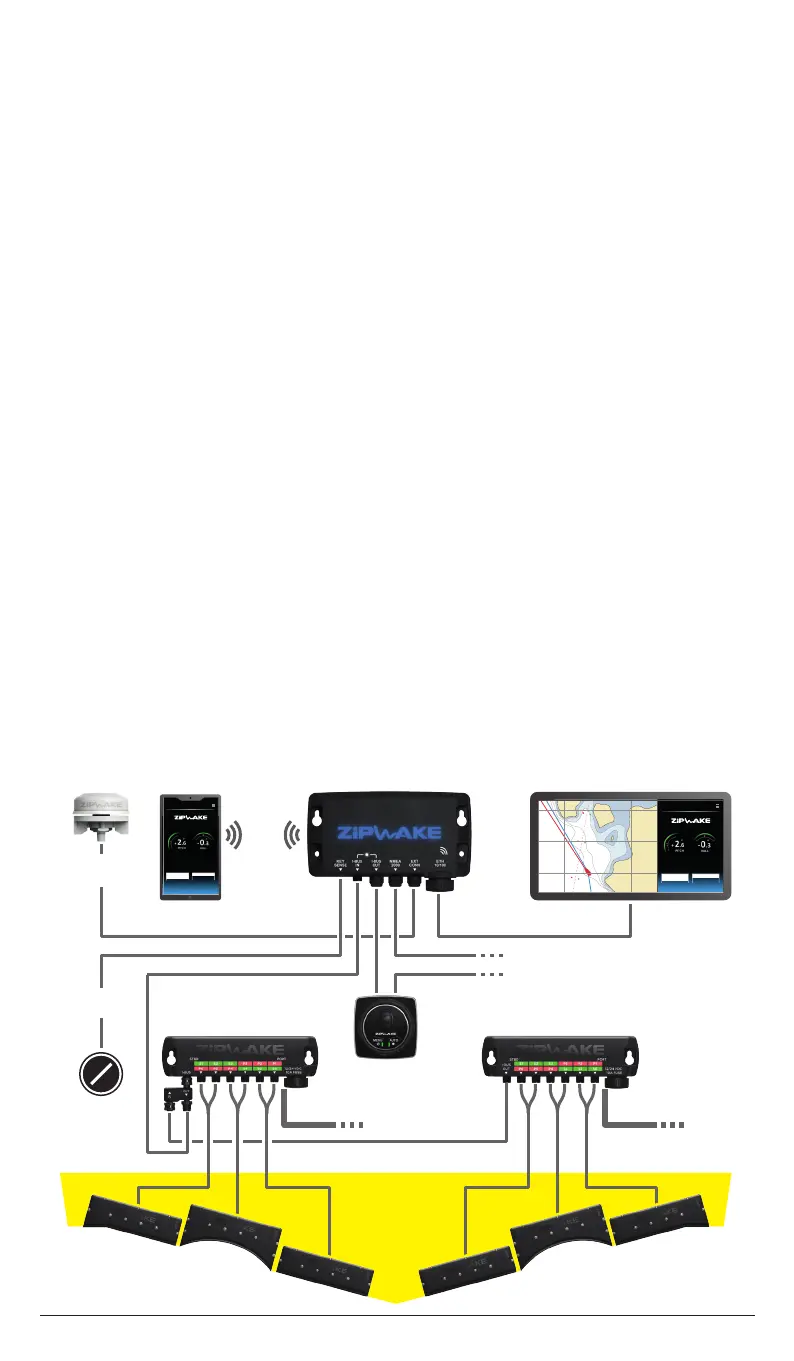

SYSTEM OVERVIEW
83
%
45
%
MANUAL FULL AUTO PITCH
83
%
45
%
MANUAL FULL AUTO PITCH
INTEGRATOR
MODULE
MOBILE
DEVICE
MULTIFUNCTION DISPLAY (MFD)
(Zipwake MFD Application)
External GPS
(optional)
Ignition
key sense
NMEA 2000
Ethernet
DISTRIBUTION
UNIT (DU)
DISTRIBUTION
EXPANSION UNIT (DU-EX)
I-BUS (Can Bus)
INTERCEPTORS INTERCEPTORS
MINI
CONTROLLER
(optional)
Supply 12-32 V DC
Additional mini controllers
and/or control panels (optional)
To Next Page
