EC16 Elevator Control Panel & DEX16 Elevator Floor Extension Board User Manual
P a g e | 34 Copyright©2023 ZKTECO CO., LTD. All rights reserved.

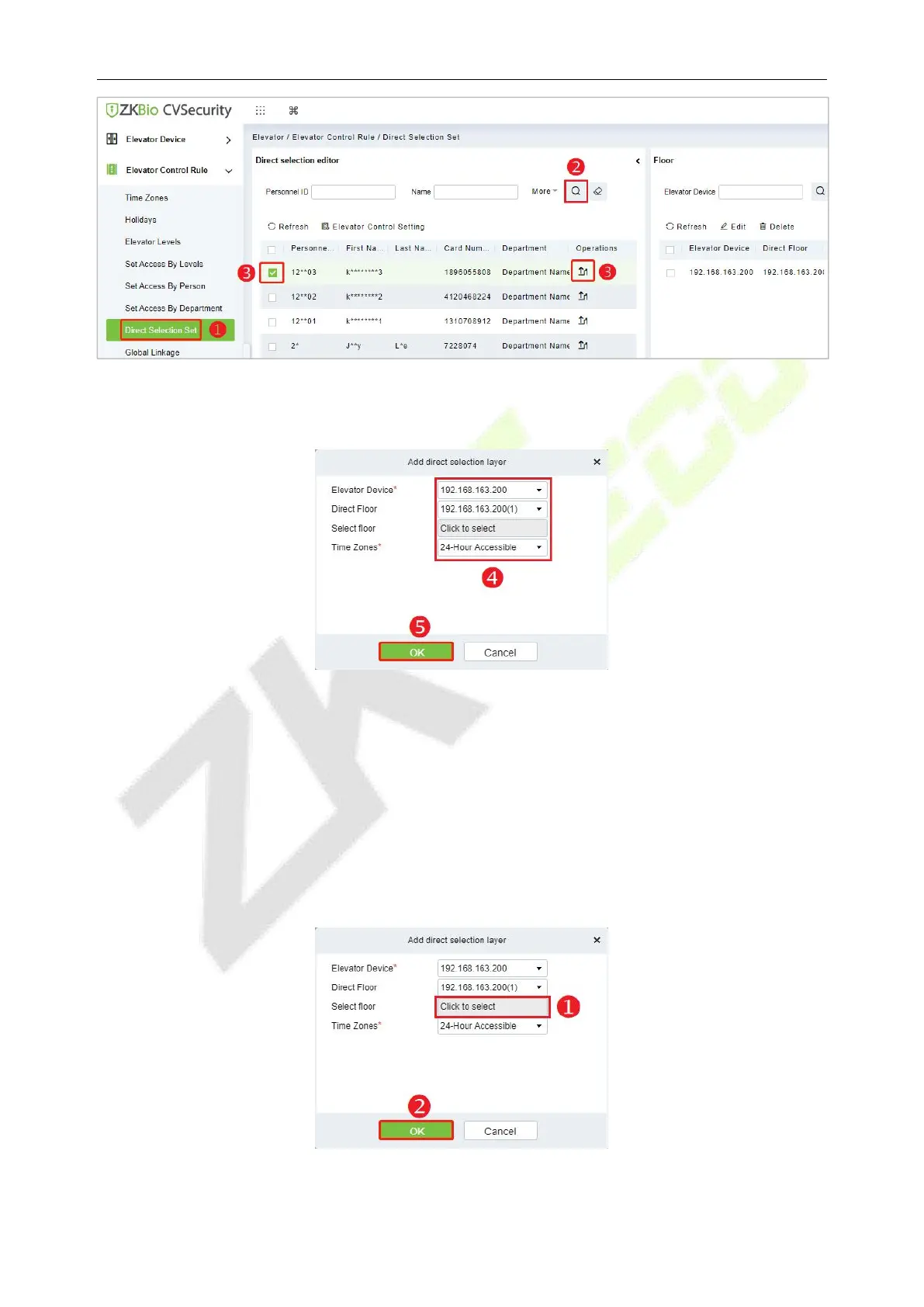

4. In the Add direct selection layer pop-up window, click on the drop-down menu to select the
elevator device, direct floor and time zones.
5. Click [OK] to save and exit.
 Select Floor
1. In the pop-up window of Add direct selection layer, click [Click to select] in the select floor
column to select the floor.
2. Once the setup is complete, the user is allowed to access the authorized floor. Once the user is
authenticated at the reader, he/she can press his/her authorized floor button directly on the floor
panel to light up that floor.
Note: Unauthorized floor buttons will not respond when pressed.
