Zoom G11 User Manual

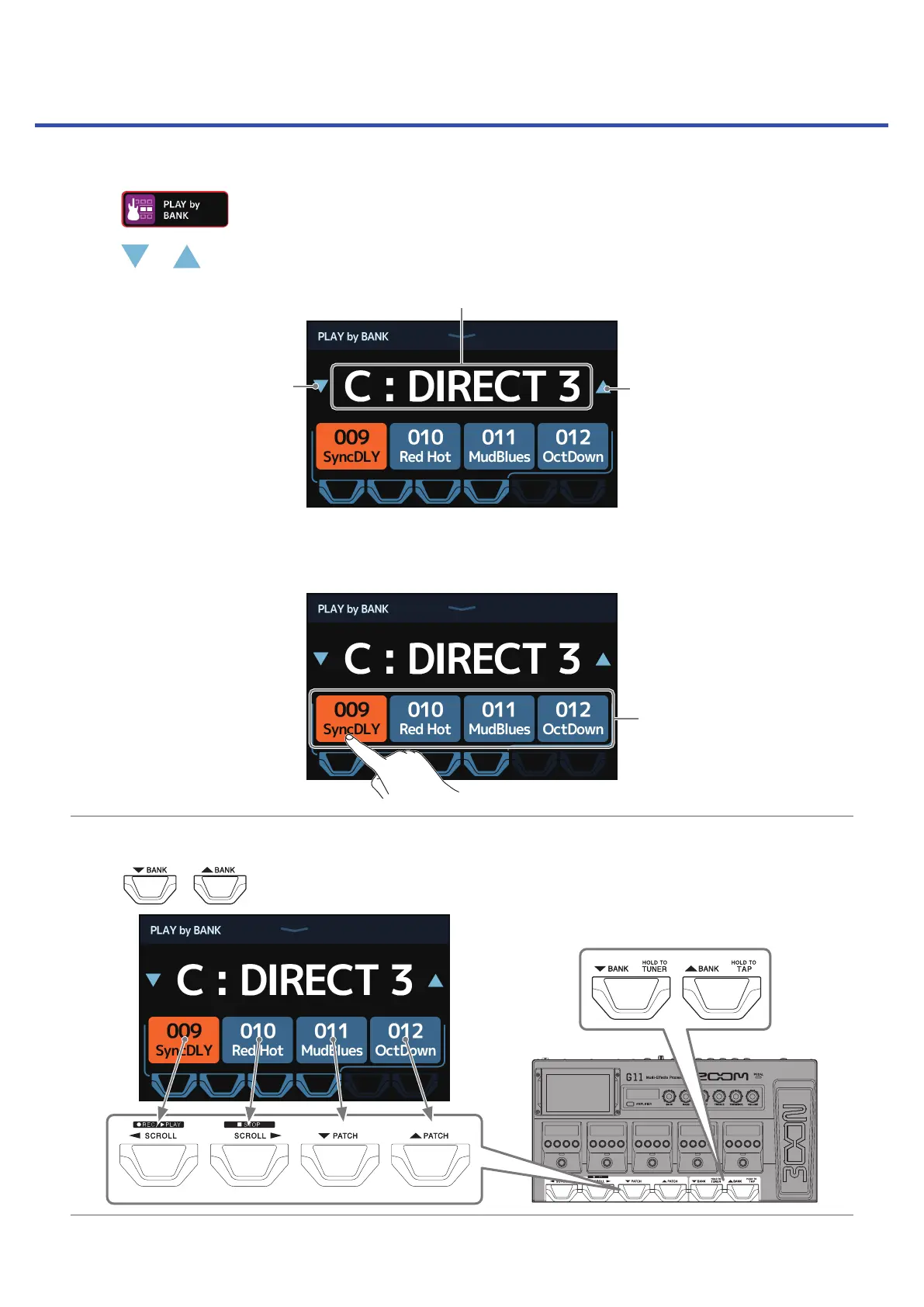

Showing the bank name while performing
A bank can be shown on the touchscreen, and the four patch memories in it can be selected with one touch.
1.
Touch on the Home Screen.
2.
Touch or at either end of the bank name to select the desired bank.
Current bank
Select lower bank Select higher bank
3.
Touch the desired patch memory.
The selected patch memory will be highlighted.
Patch memories in the bank
HINT
When PLAY by BANK is open, the patch memories shown can be selected directly by pressing the footswitches.
Press
/ to select the previous/next bank.
22

Zoom G11 Specifications

General

Type	Multi-effects Processor
USB	1 x Type B
MIDI	In/Out
Software	Zoom Guitar Lab
Amp Models	22
Effects Types	Distortion, Modulation, Delay, Reverb, EQ
Looper	Yes
Display	Color LCD
Inputs	1 x 1/4" (instrument), 1 x 1/8" (aux in)
Outputs	1 x 1/4" (headphones)
Expression Pedal	Yes, built-in
USB Audio Interface	Yes
Power Supply	AC adapter (included)
