Chapter 5 Quick Setup Wizards

ZyWALL USG Series User’s Guide

181

5.5.4 VPN Settings for L2TP VPN Setting Wizard Completed

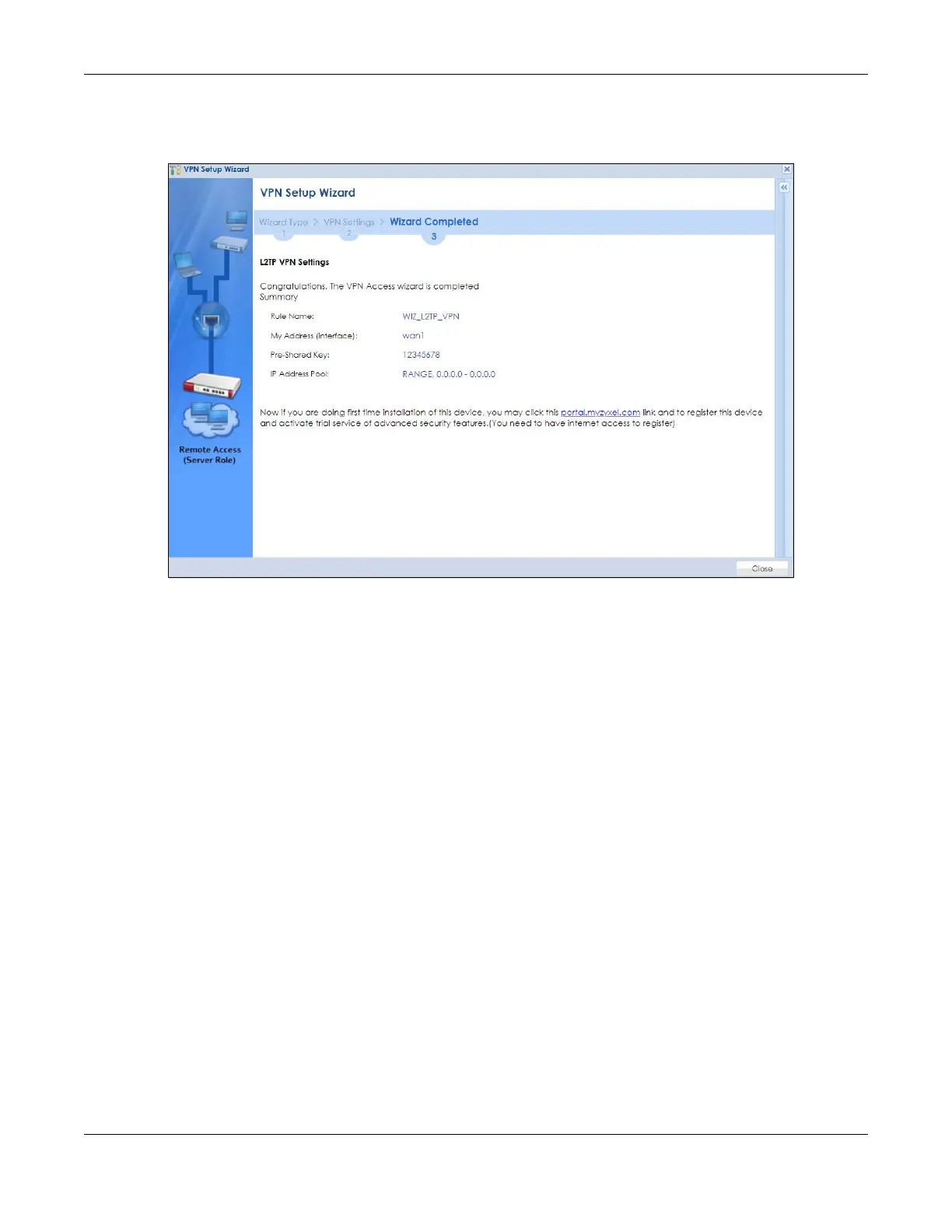

Figure 152 VPN Settings for L2TP VPN Settings Wizard: Finish

Now the rule is configured on the Zyxel Device. The L2TP VPN rule settings appear in the Configuration >

VPN > L2TP VPN screen and also in the Configuration > VPN > IPSec VPN > VPN Connection and VPN

Gateway screen.
