Installation manual 2N® IP Verso
199 / 241
•
•
•
•
•
•
•
•
•
•
OSDP
The OSDP module (Part No. 91550371) is one of the 2N
®
IP Verso modules and provides
communication between a connected device (control panel, door controller) and 2N
®
IP Verso
via the OSDP. The OSDP module provides secure sending of such access data as the access card
ID or PIN code. All the inputs and outputs are galvanically isolated from the2N
®
IP Versosystem
with insulation strength of 500 V DC.

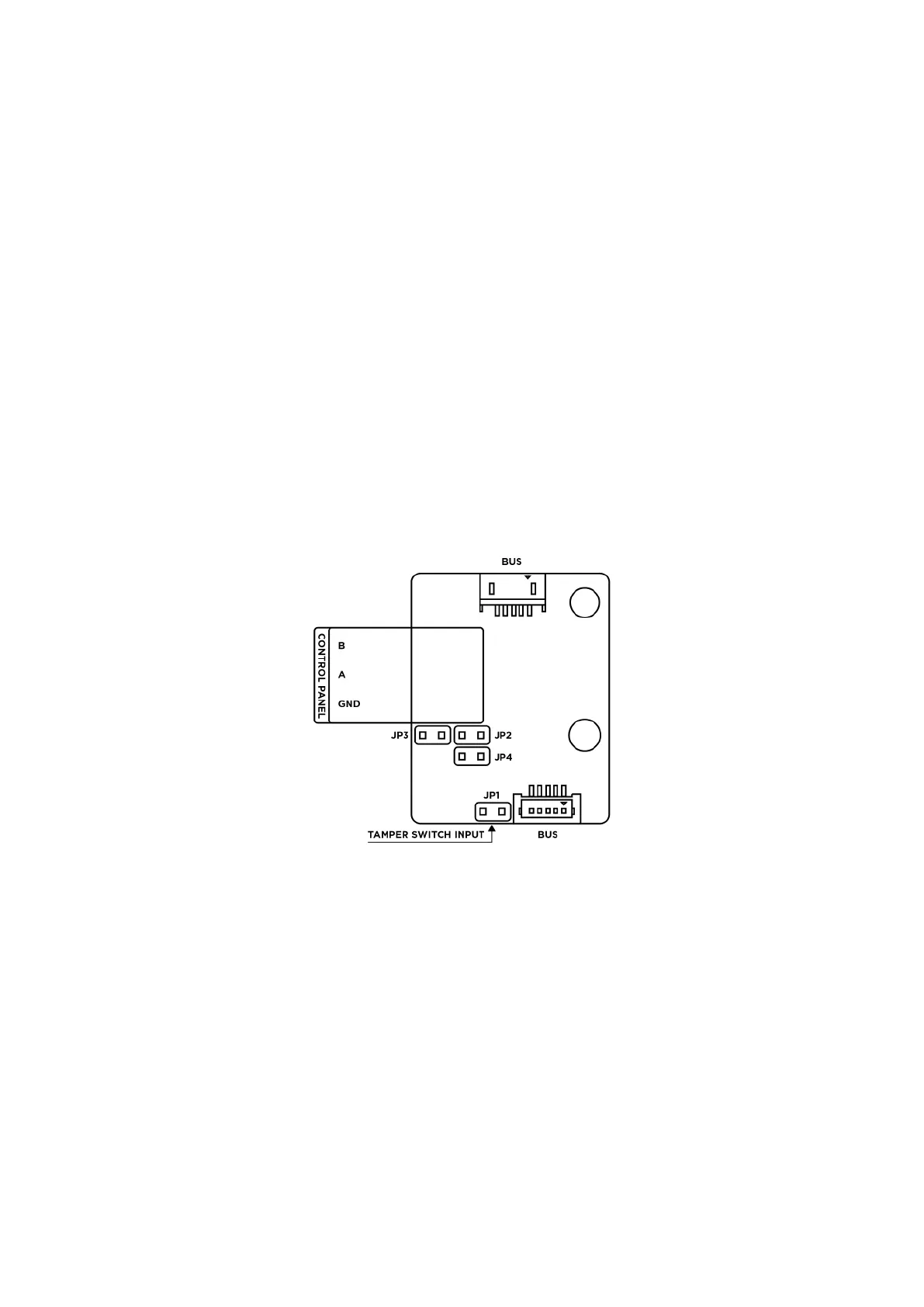

The module contains two VBUS connectors for device bus connection.
These two connectors are interchangeable and can be used either as inputs from the basic
unit or outputs to other modules.
If this module is the last one on the bus, one of the connectors remains unconnected.
The module package includes a 80 mm long interconnecting cable.
The module also includes:
Isolated OSDP bus
Power and pairing mode signaling LED
Tamper switch (9155038) input
Installation Procedure
Having connected the OSDP module to 2N
®
IP Verso via the VBUS, connect the OSDP device to
the module. The OSDP module uses the RS-485 bus for the interface.
Connect the OSDP device as instructed (A to B or B to A) keeping the correct order to avoid
malfunction.
Having logged in to the 2N
®
IP Verso web interface, use the HW / Extending Modules menu to set
the following:
Give the module a user identification (optional).
Choose a group for access data resending, making sure that the settings are identical with
those of the access readers from which the data are to be resent (card ID< PIN).
The settings of the codes to be transmitted are optional.
