5. Configuring The Receiver
In the setup mode, the units of depth measurement, time, date, and date format can be
set. The receiver can be congured to detect only certain frequencies and/or specic
utility markers and activate certain locating modes. User dened frequencies can be
programmed, language of the receiver can be selected, and tone frequencies set.
A. Selecting Depth Units

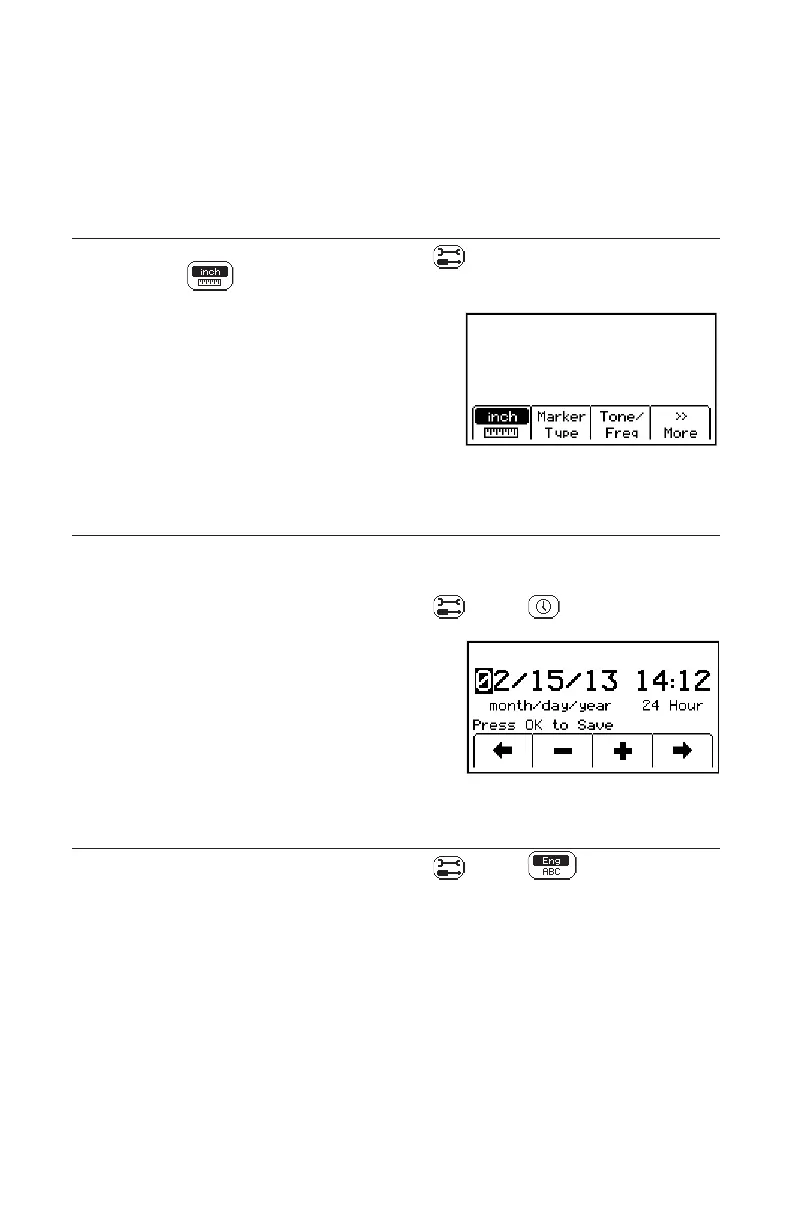

Menu/OK [6:Toggle to MAIN MENU] + >>More [SK:4] + [SK:5] + >>More [SK:d] +
>>More[SK:h] + [SK Toggle:i]
• The soft key command will toggle between inches
(in), centimeters (cm), and feet/inches (ft-in).
B. Setting the Receiver Clock
Set the time, date, and date format of the receiver. Depth and Current measurements are
time and date stamped, as well as read and write marker information (iD units only).
Menu/OK [6:Toggle to MAIN MENU] + >>More [SK:4] + [SK:5] + [SK:b]
• Press the left/right arrow [SK] to highlight the
digit of the date or time to change.
• Press the + or - [SK] to increment or decrement.
• When the date format is highlighted, the format
will toggle between mm/dd/yy and dd/mm/yy.
• Press Menu/OK [6] to save.
C. Selecting a Language
Menu/OK [6:Toggle to MAIN MENU] + >>More [SK:4] + [SK:5] + [SKToggle:a]
The soft key command will toggle between available languages. Alternate languages can
be uploaded to the receiver using the 3M™ Dynatel™ PC Tools software. (Available for
download at www.3M.com/dynatel.)
