54 78-9000-5020-0 Rev C

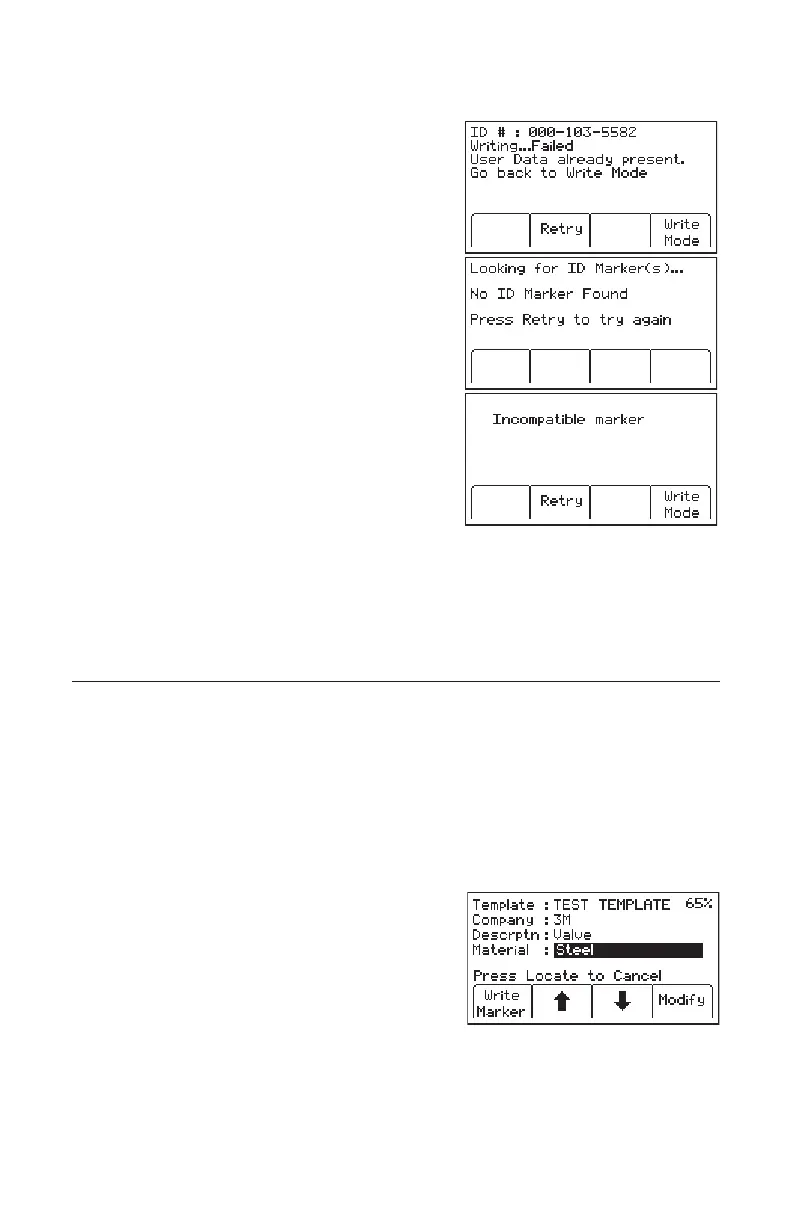

Step 9. The following messages may appear in the
writing process:
Message 1. If the overwrite option was set
to "No" And there was data present on the
target market then the following screen
will be displayed.
Message 2. When writing to a passive
marker or the wrong frequency then the
following will be displayed.
Message 3. This screen indicates that
X-Type marker option was incorrectly set
to "Yes" or "No". Verify the serial number
that is displayed on the marker ends with
an “X” to select "Yes" for X-Type, else
select "No".
Note: Once the marker data has been locked, the information contained on the marker
is PERMANENT. Choosing to permanently lock the marker data is irreversible. Once
the data is locked it can not be overwritten. Assure that the data that is being written is
correct before proceeding.
A. Modifying Marker Data to be Written
To alter the information to be written into the marker:
Step 1. Press Menu [6] + Write Mode [SK].
Step 2. Select a template from the list on the display to be written into the marker by
pressing the up/down arrows [SK] to highlight the preferred template. ‘Last
Written/Read’ is the most recent data that was written to/read from a marker by
the receiver.
Step 3. Press View/Edit [SK].
Step 4. Press the up/down arrows [SK] to highlight
the information to change.
Step 5. Press Modify [SK]. The percentage
displayed in the upper right portion of the
display indicates the remaining memory
available on the marker.
