Step 6. The operator may select User Edit in order
to ‘type’ the modication, or Delete Row to
remove the entire row from the template, or
select Show All to display a list of common
compressed terms.
Note: Using a common compressed term requires
less memory in the marker.
Step 7. Select an option from the list by pressing
the up/down arrows [SK]. Press/OK [5].

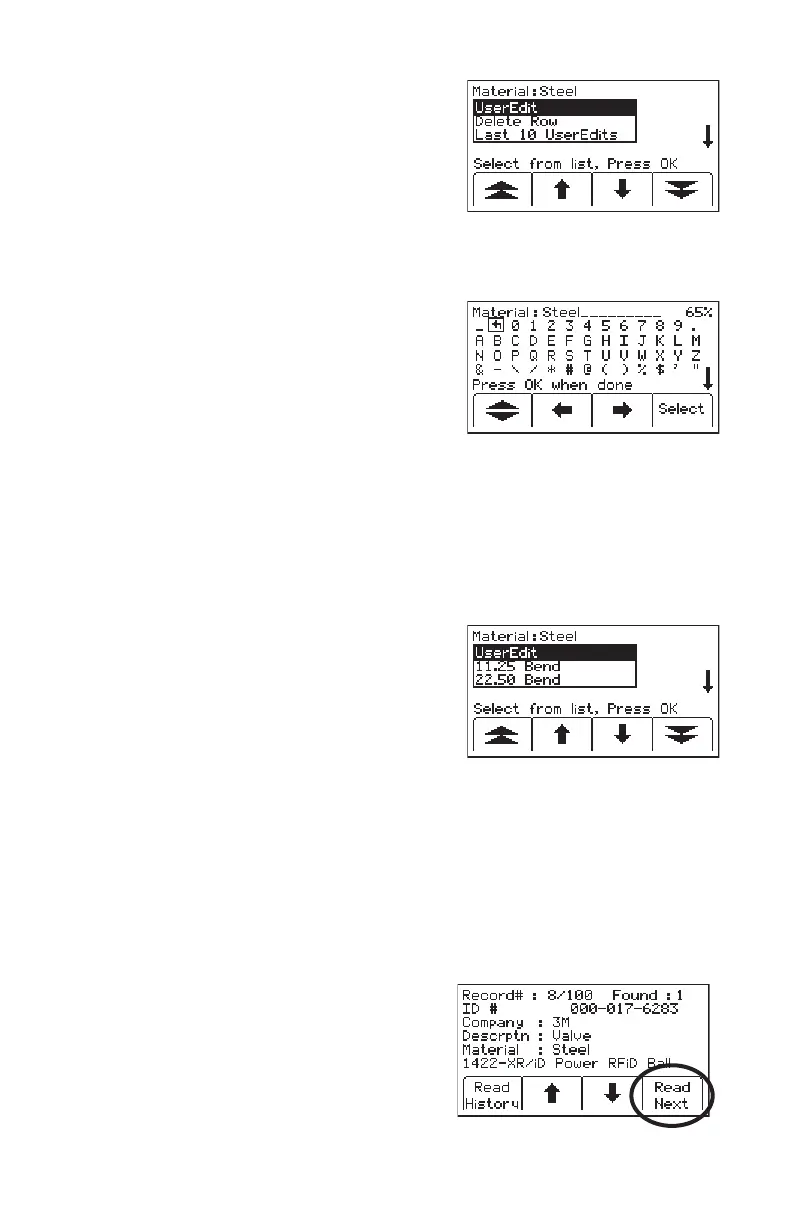

Step 8. If User Edit is selected, the following
display will appear.
Step 9. Move the boxed cursor to the ‘back arrow’
and press Select [SK] to delete the entry to
be modied.
Step 10. Move the boxed cursor by pressing the left/
right arrows [SK] or the Up/ Down Arrow
[SK] to move the cursor to the next row.
Step 11. Press Select [SK] to enter the alphanumeric
character.
− Entry will appear at the top of the
display.
Step 12. Press/OK [5] when entry is complete.
Step 13. If Show All is selected, the following display
will appear.
Step 14. Select a common compressed term from the
list by pressing the up/down arrows [SK].
Step 15. Press/OK [5]. The modication will
automatically populate the marker template.
16. Reading 3M™ iD Markers
The operator can retrieve the data from the 3M
™
iD Marker by pressing Read [SK] on the
Marker Locate display.
The receiver tip should be lowered to the ground to reach maximum read depth.
If more than one 3M
™
iD Marker of the same utility is detected, the receiver will read the
rst marker and display the data from the marker.
The fourth yellow command key will be labeled
“Read Next”. Press this key to extract the data from
the other marker.
