7. Receiver Locating Trace Modes
A. Trace View (T-View)
TRACE [3]
Trace View mode, or T-View, provides an intuitive mapping display showing the utility
path utilizing dynamic directional arrows and a path indication line. This combination
provides an excellent visual representation of the utility path and directional assistance to
assist in pinpointing the target.
Several displays may be seen when using Trace View:

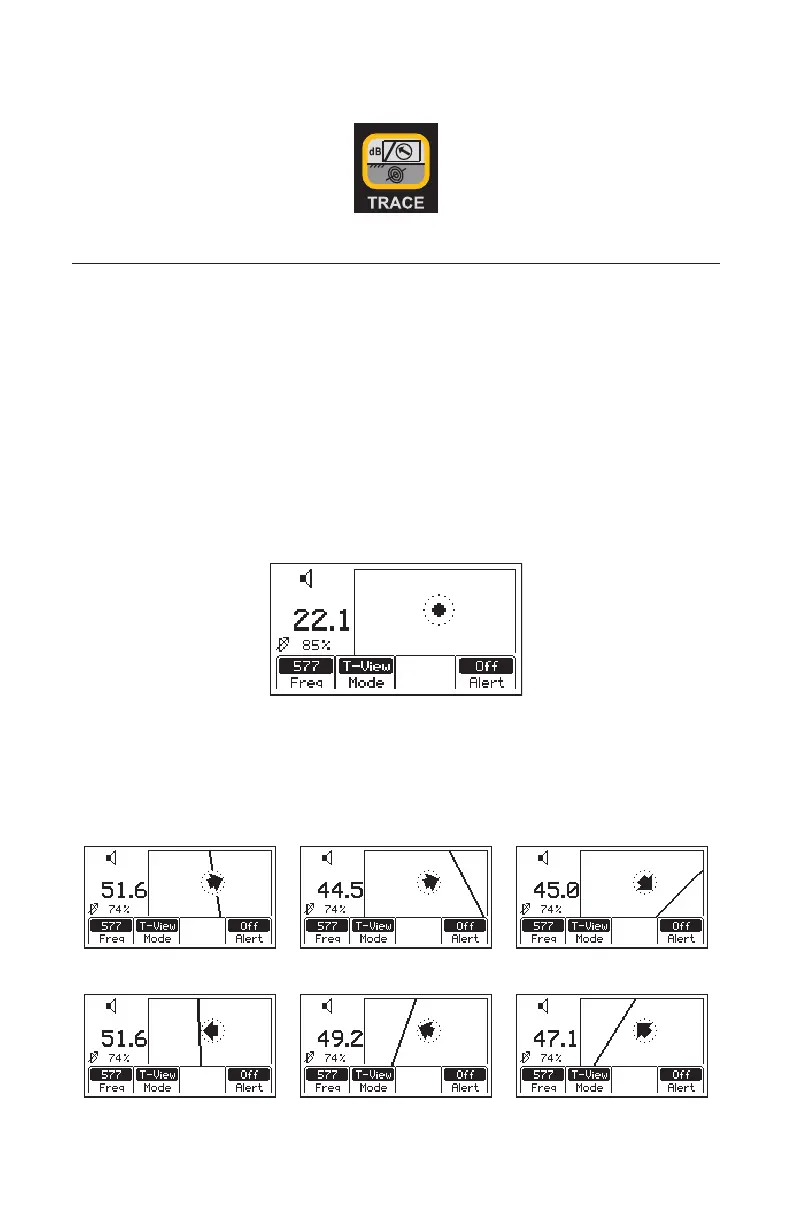

Display 1. When the receiver is outside of the detectable locating signal range, the
display will show a solid circle inside of a dotted circle. At times it may
show the dynamic directional arrow shown in Display 2 and/or the image in
Display 4 below. The images may ash alternately indicating that the receiver
is out of detectable locating signal range. See following example;
Display 2. When the receiver is within the detectable locating signal on the target, a
steady target line will appear on the receiver display representing the target.
The dynamic directional display arrows will guide the operator towards the
target. The receiver volume and the signal strength increase as the target is
approached. See following examples;
Left of Target Path
Right of Target Path
To Next Page
