8. Depth and Current Estimate
Verifying the target path, depth and current can be helpful tools.
• Pinpoint the cable or pipe being located.
• Lower the tip of the receiver to the ground and
press DEPTH [5].

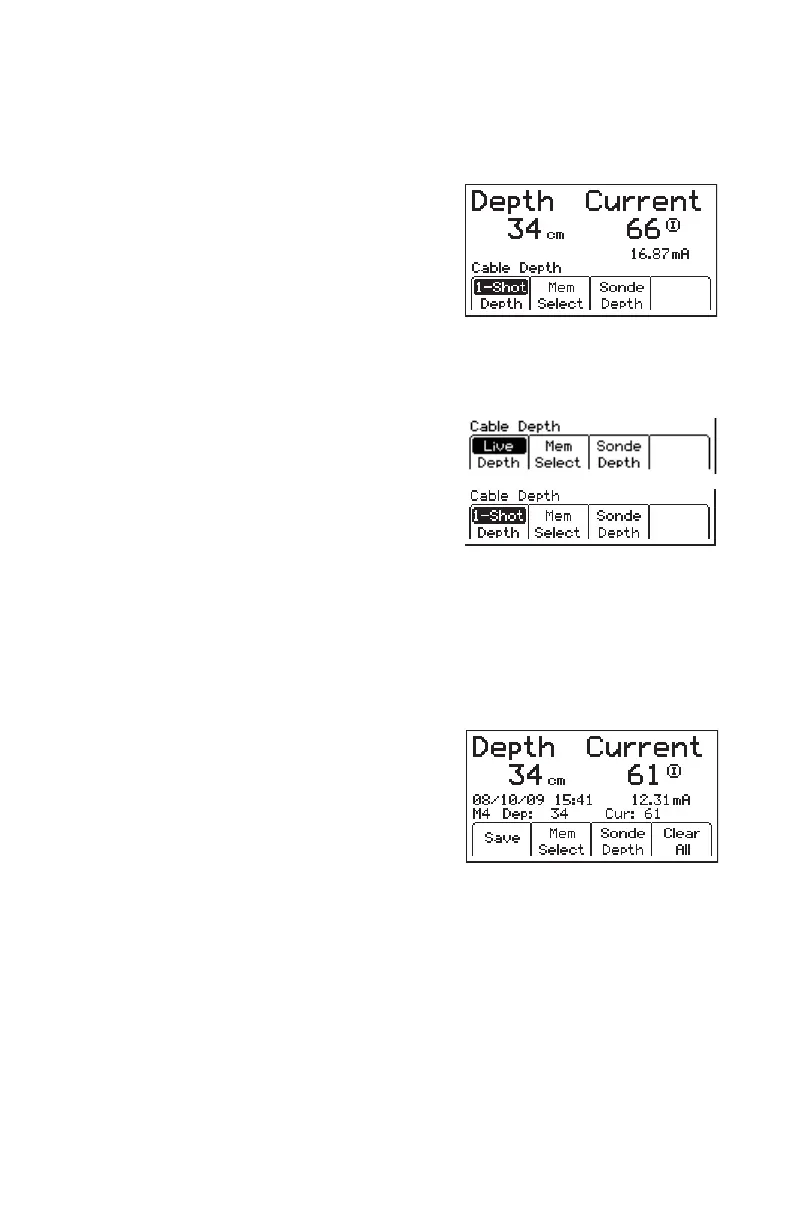

− The depth to the target cable or pipe is displayed
in the units specied in the receiver set up menu.
The bold current reading is a relative current
measurement. This reading can be compared
to the relative current reading that alternately
ashes with the frequency on the transmitter.
The milliamp reading is an actual current
measurement.
− There are two options for measuring depth.
Live depth is a continuous measurement. 1-Shot
Depth is an averaging of the depth reading.
When in 1-Shot mode, the unit will average
the depth reading for three seconds, and then
display the result on the screen. Press Depth [5]
to alternate between the two modes.
− Five depth readings can be saved with the time,
date and relative current measurements.
• Pressing Mem Select [SK] and then Save [SK] will place each entry in sequential order
in memory (M1–M5) until ve readings have been stored. The unit will overwrite
saved entries in excess of ve, beginning with M1.
• Optional step: Press Clear All [SK] to delete all
stored depth information.
− The operator may select a specic memory
location to store the depth readings by pressing
Mem Select [SK]. When the preferred location
appears on the display, press Save [SK]. The
display and memory location will populate with
the current information.
− Each memory location can be reviewed by
pressing Mem Select [SK].
• Press TRACE [3] or DEPTH [5] to return to Locate
mode, or wait until receiver automatically returns
to the Locate mode.
