30 78-9000-5020-0 Rev C

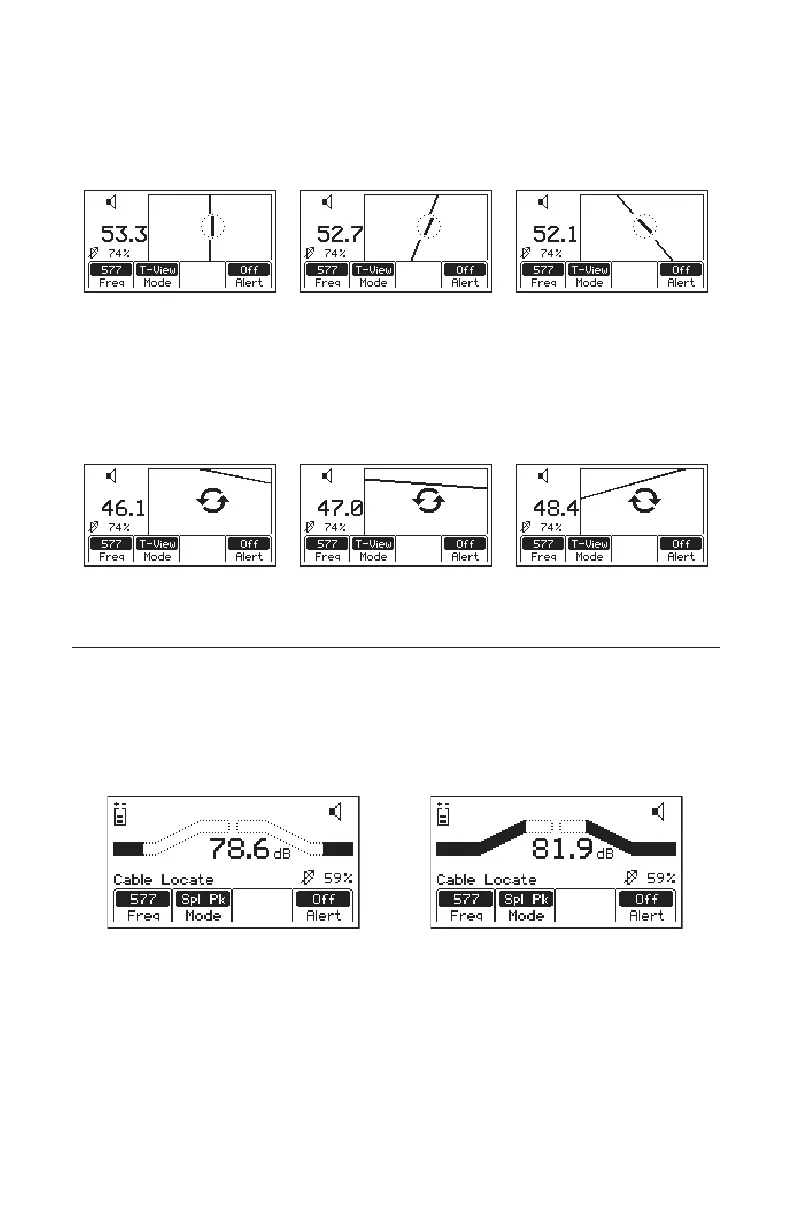

Display 3. As the receiver antenna crosses the target, the receiver volume increases to
a maximum, the signal strength will be at its maximum and the directional
arrow will become a straight line that is closely lined up with the target line
on the display. See following examples;
On Target Path
Display 4. A circle consisting of two arrows appears when the orientation of the receiver
is not at the optimum position in relation to the target. The arrows indicate
that the receiver should be twisted to obtain the optimum position. See
following examples;
Twist Receiver
B. Special Peak (Spl Pk)
TRACE [3] + Mode [SK] + Spl Pk [SK Toggle] or
Menu/OK [6] + Cable/Pipe [SK] + Mode [SK] + Spl Pk [SK Toggle]
Special Peak Mode turns on only the peak antenna closest to the ground. Special Peak
Mode is used in applications such as very deep cables or pipes, or when the signal is too
weak for Directional Peak (Dir Pk).
Left or Right of Target Path Directly Over Target Path
