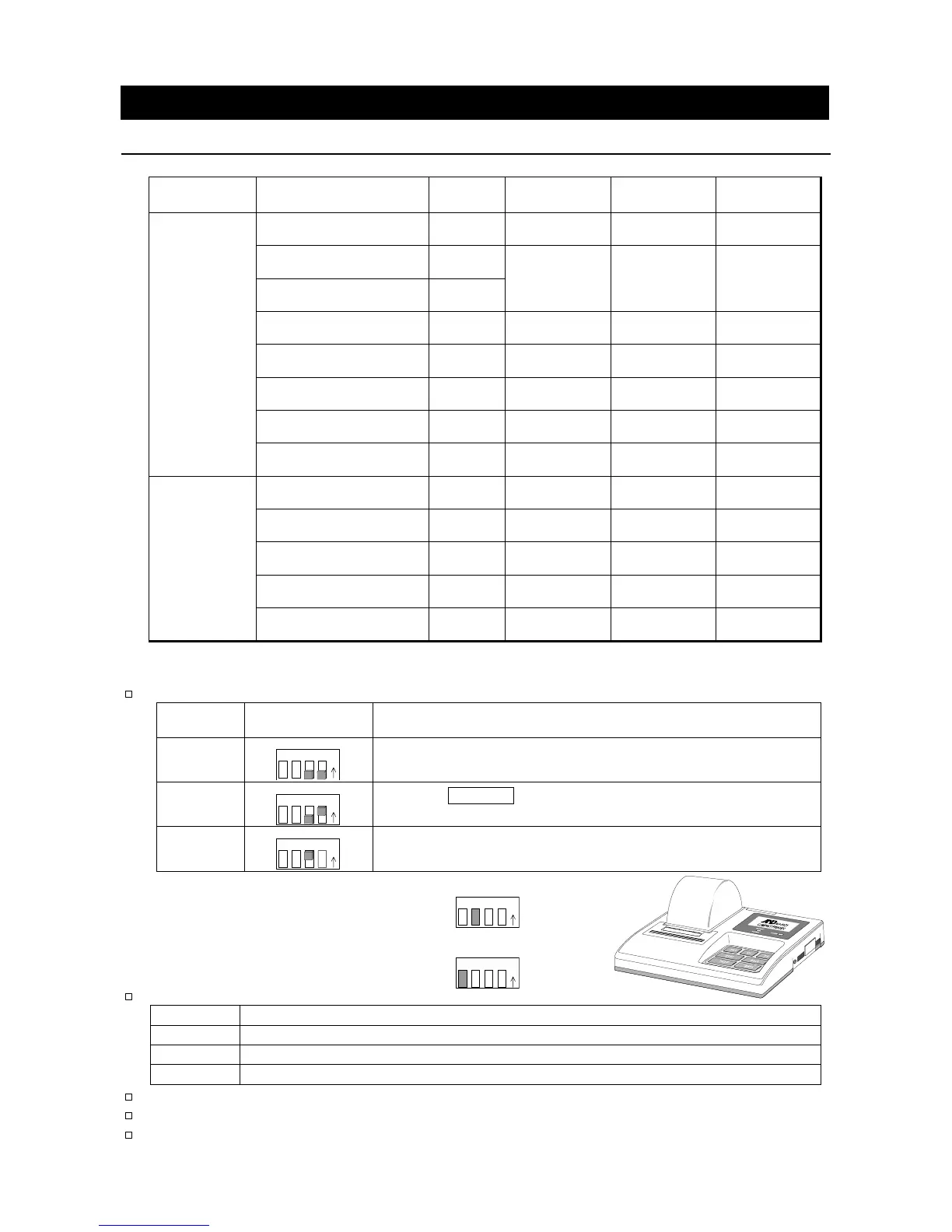

16-2. Connection to peripheral equipment
16-2-1. Connection To The AD-8121B Printer
Preset the following parameters to use the AD-8121B printer.
Class Item and Parameter
Factory
settings
AD-8121B
MODE 1
AD-8121B
MODE 2
AD-8121B
MODE 3
prt
Data output mode
0 0,1,2 3 0,1,2
ap-p
Auto print polarity
0
ap-b
Auto print difference
1
#1
Not
necessary
#1
d-no
Data number output
0 0 0 0,1
5-td
Time/Date output
0 0 0 0,1,2,3
5-id
ID number output
0 0 0 0,1
pU5e
Data output pause
0 0 0 0,1 #2
dout
Data output
at-f
Auto feed
0 0 0 0,1
bp5
Baud rate
2 2 2 2
btpr
Data bit, parity bit
0 0 0 0
Crlf
Terminator
0 0 0 0
type
Data format
0 0 0 1
5if
Serial
interface
Ct5
CTS, RTS control
0 0 0 0
#1 Set parameters when auto print mode A or B (prt 1 or 2) is selected.
#2 Set 1 when multiple lines are printed. Example: When appending ID number, set 1.
Settings of AD-8121B
MODE
AD-8121B
DIP switch
Description
MODE 1
1 2 3 4
MODE
ON
Print at receiving data.
Standard mode, statistic mode
MODE 2
1 2 3 4
MODE
ON
Print by DATA key operation or built-in timer.
Standard mode, interval mode, chart mode
MODE 3
1 2 3 4
MODE
ON
Print at receiving data.
Dump print mode
DIP switch No.3 : Handling unstable data
ON Print
OFF Not printed
DIP switch No.4 : Data input specifications (Interface selection)
ON Current loop
OFF RS-232C
The printer performs as follows, depending on the data memory setting.
Setting Output data
data 0 The weighing data
data 2 The weighing data stored in memory
data 3 The calibration report stored in memory
Refer to "11-2. GLP Report" for print samples.
GF-K series does not output the time and date. Use the calendar function of the AD-8121B.
GF-K series does not store the calibration report in memory.
