VCCX2 Controller Technical Guide
VCCX2 Controller Inputs
The VCCX2 Controller is designed with 8 analog inputs, 4 analog
outputs, 8 binary inputs and 8 relay outputs.
There are also 2 E-BUS Expansion Ports which allow the use of
communicating sensors and the E-BUS Modules.
See Figures 6, this page & Figure 7, page 26 for wiring details.
Detailed wiring for all inputs and outputs are found on the pages
that follow.

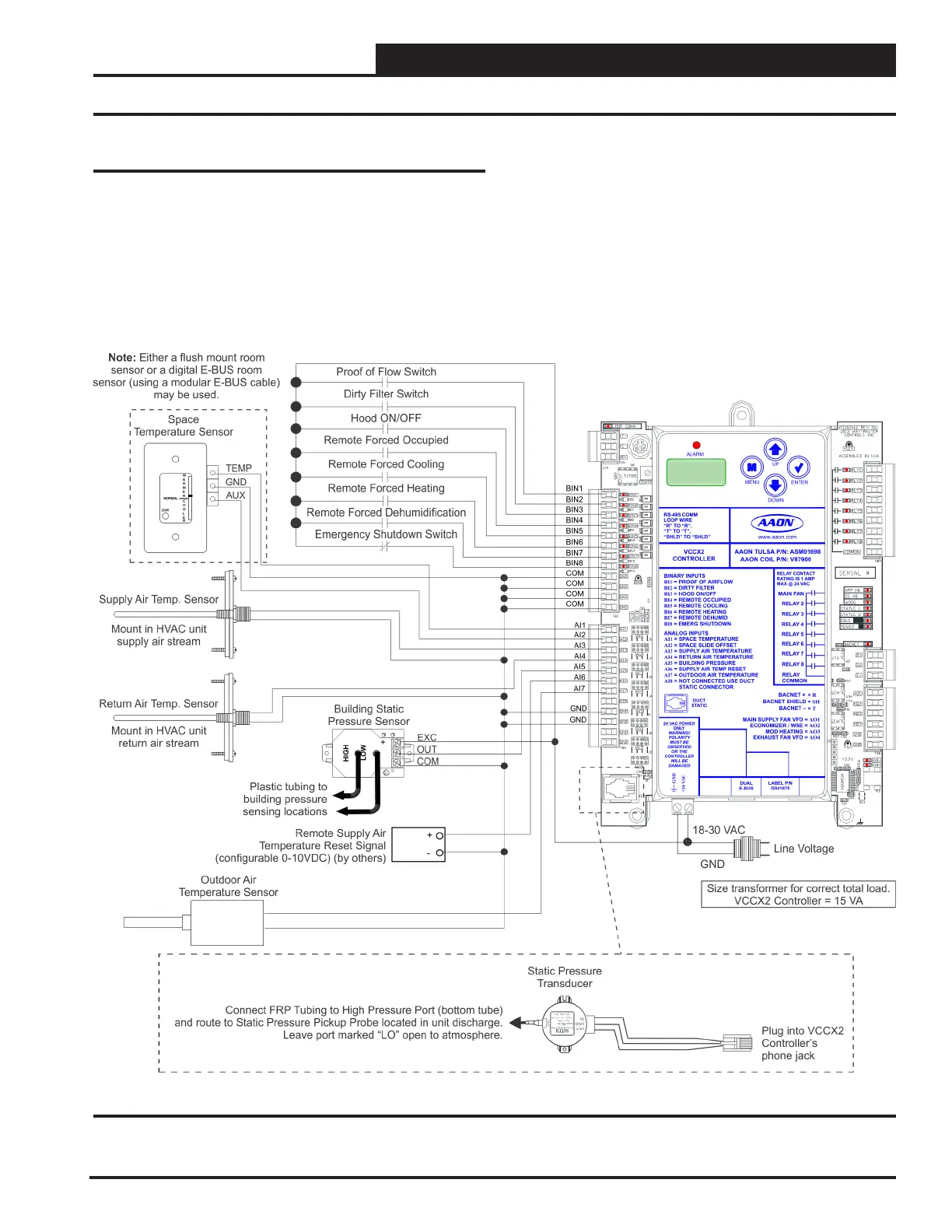

Figure 6: VCCX2 Controller Input Wiring
WIRING
VCCX2 Controller Inputs
