VCCX2 Controller Technical Guide
EBTRON
®
, GreenTrol
TM
, and Paragon
Air Flow Measurement Digital
Transmitters
NOTE: Only the EBTRON
®
GTC116 or HTN104 series,
GreenTrol
TM
GA-200-N Module (with GF series
Airow Station), or Paragon MicroTrans
EQ
series
of MODBUS RTU transmitters are compatible
with the VCCX2 Controller. No other series of
transmitters will work for this application. Contact
AAON Controls for information on other airow
station options.
The E-BUS Adapter Board attaches to the VCCX2 Controller
with an EBC E-BUS cable. The Adapter Board is used for
connecting the EBTRON
®
, GreenTrol
TM
, or Paragon Airow
Measurement Digital Transmitter to the VCCX2 Control System.
You must wire the Airow Measurement Digital Transmitter to
the Adapter Board as shown in Figure 31, this page.
NOTE: The Airow Station’s baud rate needs to be set to
19,200 in order to communicate with the VCCX2
Controller.
NOTE: Up to four EBTRON
®
, GreenTrol
TM
, or Paragon
Airow Measurement Digital Transmitters can be
attached to each Adapter Board.
NOTE: If using multiple E-BUS Sensors or Modules, the
E-BUS Hub (ASM01635 or G033970) or E-BUS
Adapter Board (ASM01878) may be required.
NOTE: When conguring the GTC116 or HTN104 Series,
be sure to set the Parity to “NO PARITY, 1 STOP
BIT.”

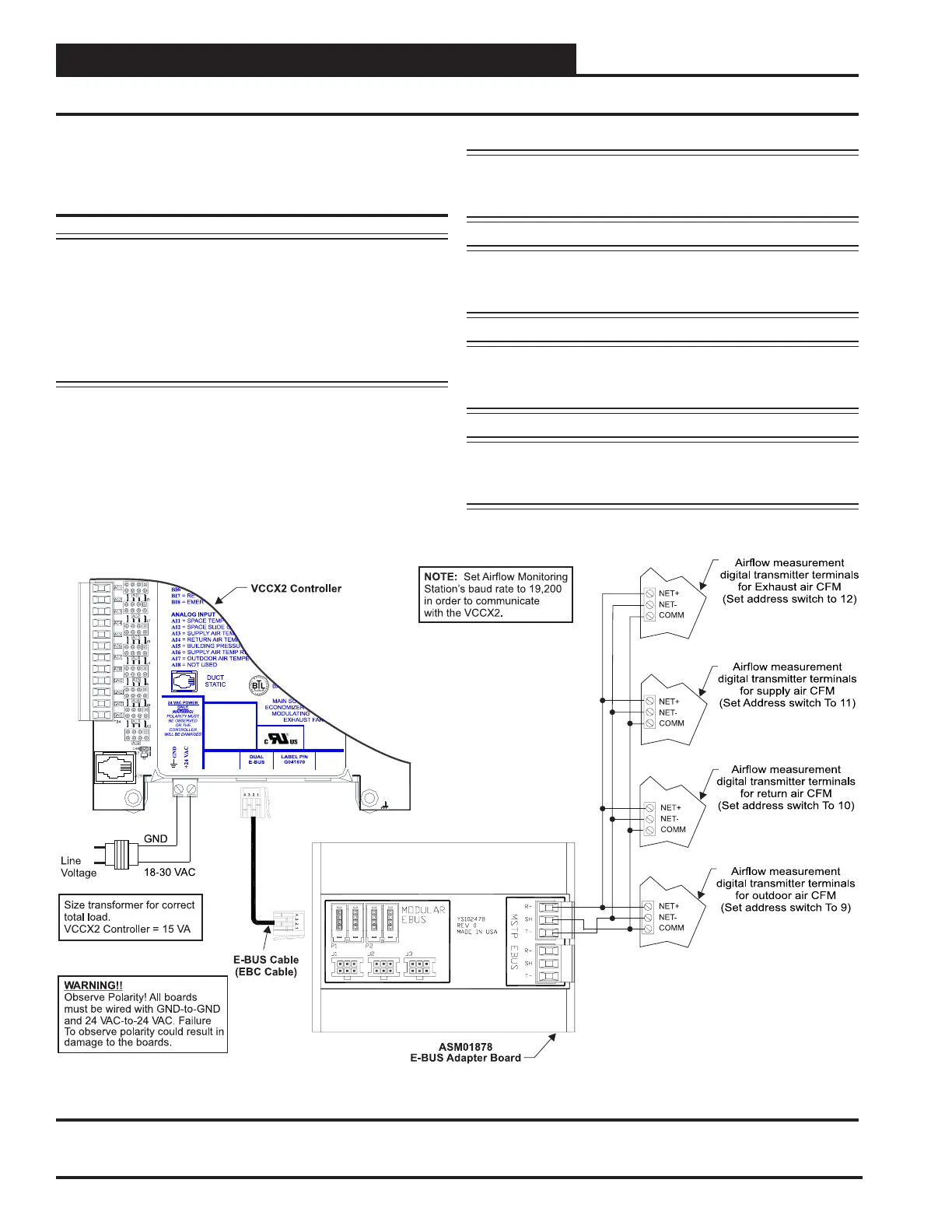

Figure 31: EBTRON
®
GTC116 or HTN104 Series, GreenTrol
TM
GA-200-N Series, and Paragon MicroTrans
EQ
Series Air Flow Measurement Digital Transmitter Wiring
WIRING
EBTRON
®
, GreenTrol
TM
, and Paragon Digital Transmitters
