AAON Orion VCCX2 - Figure 39: RSMZ Outputs Wiring; RSMZ Controller Outputs

58
VCCX2 Controller Technical Guide
RSMZ Controller Output Wiring
The RSMZ Controller provides the following features:
• Modulates the Compressors to satisfy the Suction Coil
(Saturated) Temperature. The Suction Coil (Saturated)
Temperature Setpoint is reset by the VCCX2 Controller
to maintain the Supply Air Temperature during Cooling
mode. During Dehumidication mode, it controls the
Compressors to the Suction (Saturation) Temperature
Setpoint.
• Modulates the Condenser Fan or Valve to maintain the
Head Pressure Setpoint.
• Monitors the performance of the DMQ Universal
Superheat Controller/Sensor (USHX) to maintain the
Superheat Setpoint of each evaporator coil.
• Provides alarms and safeties for the Compressor and
Condenser operation.
• Provides a 2 x 8 LCD character display and four
buttons that allow for status of system operation, system
setpoints, system congurations, sensors, and alarms,
and to change the module’s address, if necessary.

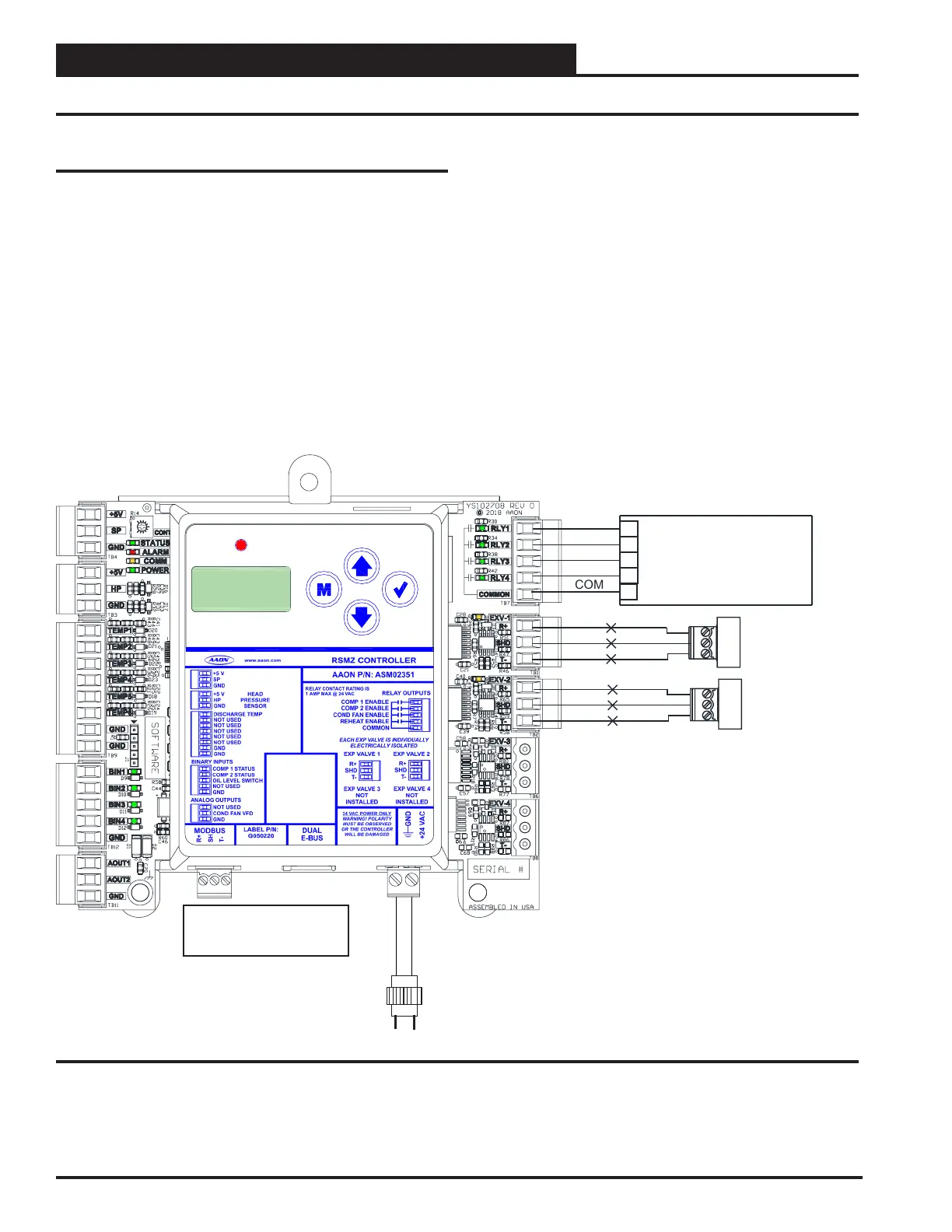

See Figure 39, this page for output wiring.
