VCCX2 Controller Technical Guide
Space Temperature Sensor
The ASM02227, ASM01638, ASM01642, ASM01643 Space
Temperature Sensor is typically used for constant volume HVAC
unit applications controlling one zone. The Space Temperature
Sensor is a 10K Type III thermistor sensor and should be mounted
approximately ve feet above the oor in the space that is to be
controlled.
The Space Temperature Sensor is available as a sensor only,
sensor with override button, sensor with slide adjust, and sensor
with slide adjust and override congurations.
See Figure 11, this page for complete Space Temperature Sensor
wiring details.

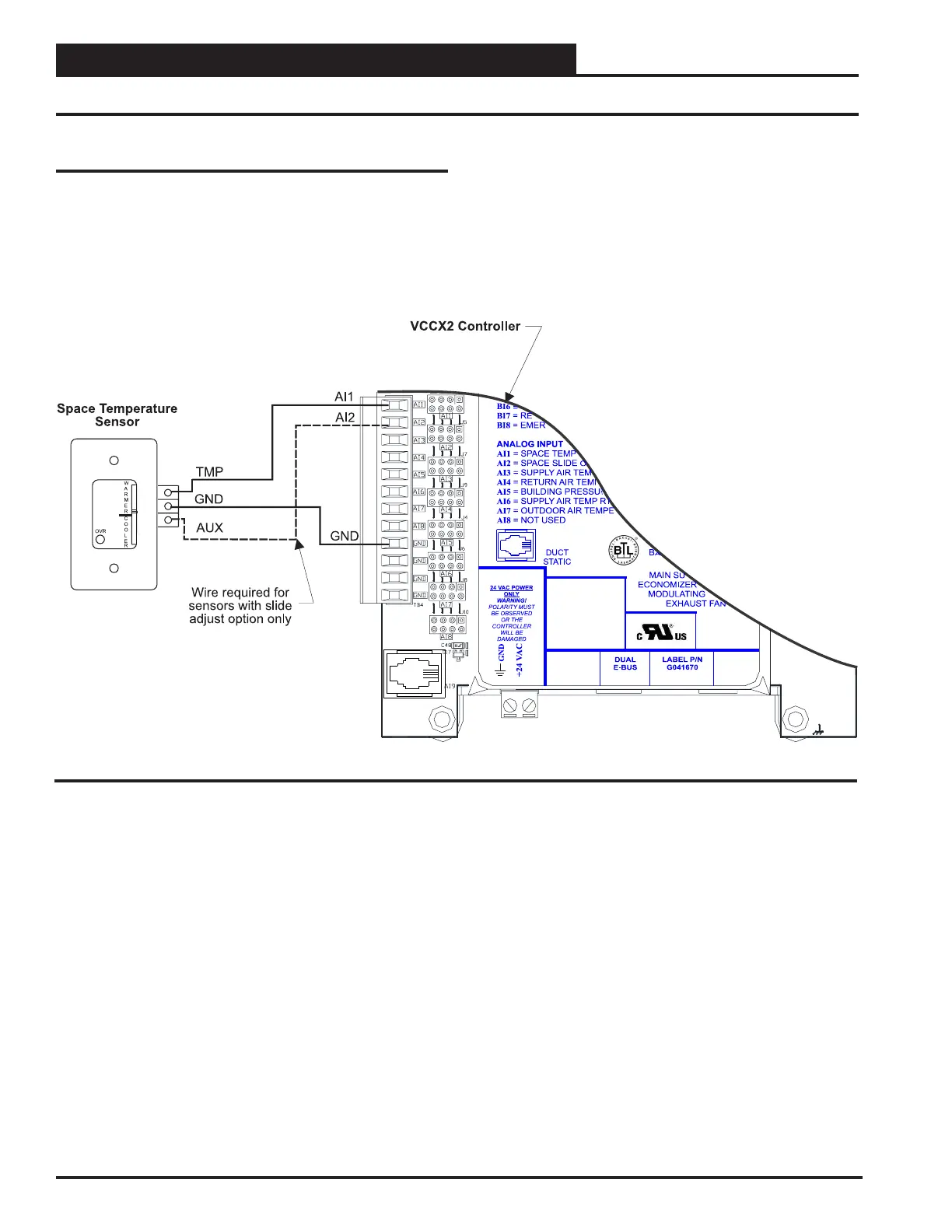

Figure 11: Space Temperature Sensor Wiring and Slide Adjust
WIRING
Space Temperature Sensor
