115
The fuse box shown in fig. 123 fig. 98
is located in the lower area next to the
pedal unit.
Enginecompartment
fusebox
The fuse box is located on the right
side of the enginecompartment, next
to the battery.

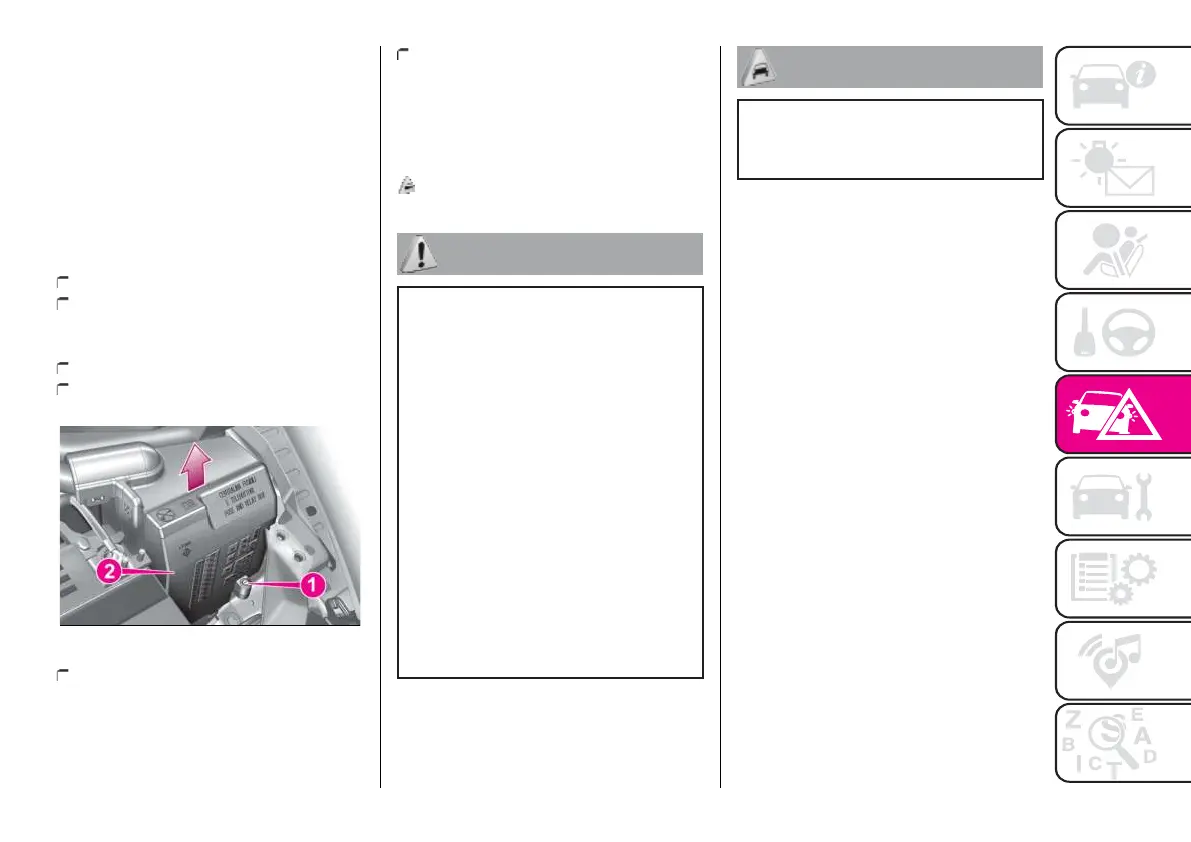

To access the fuses, proceed as
follows:
Fully press screw(1) fig. 122;
at the same time slowly rotate the
screw anticlockwise, until resistance is
encountered (do not overtighten);
slowly release thescrew;
opening is indicated by the entire
screw head coming out of its housing;
122AB0A0375C
remove cover (2), sliding it upwards
on the side guides, as indicated in the
figure.
after replacing thefuse, refit the
cover, making sure that it is closed
properly.
The number identifying the electrical
component corresponding to each fuse
is on the cover fig.124.
30)
WARNING
131) Contact an Abarth Dealership to have
a fuse replaced.
132) If the fuse blows again, contact an
Abarth Dealership.
133) Never replace a faulty fuse with metal
wires or anything else.
134) Never replace a fusewithanother
with a higher amp rating; RISK OFFIRE.
135) If a general protection fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact an Abarth Dealership.
136) Before replacing a fuse, make sure
that the ignition key has been removed
and that all the other services are switched
off and/or disengaged.
137) If a general protection fuse for
the safety systems(airbag system,
braking system), power unit systems
(engine system, transmission system) or
driving system blows, contact an Abarth
Dealership.
IMPORTANT
30) If you need to washthe engine
compartment, take care not to directly hit
the engine compartment fuseboxwith the
water jet.
