IN AN EMERGENCY
114
117AB0A0103C
open the protection (2) fig. 118
replace the snap-fitted bulb (3) fig. 118;
118AB0A0104C
close the cover (2)on the lens;
then refit the ceilinglight by inserting
it correctly in its housing, on one side
and then pressingon the other side
until it clicks into place.
FUSE
REPLACEMENT
Contact an AbarthDealership to have a
fuse replaced.
GENERALINFORMATION
Fuses protect theelectrical system:
they intervene (blow) in the event of
a failure or improperaction on the
system.
131)132)133)134)135)136)137)
Check the state of the corresponding
fuse when a device does not work: the
filament (1) fig. 119 should be intact.
If it is not, replace the blown fuse with
another with the same ampere rating
(same colour).

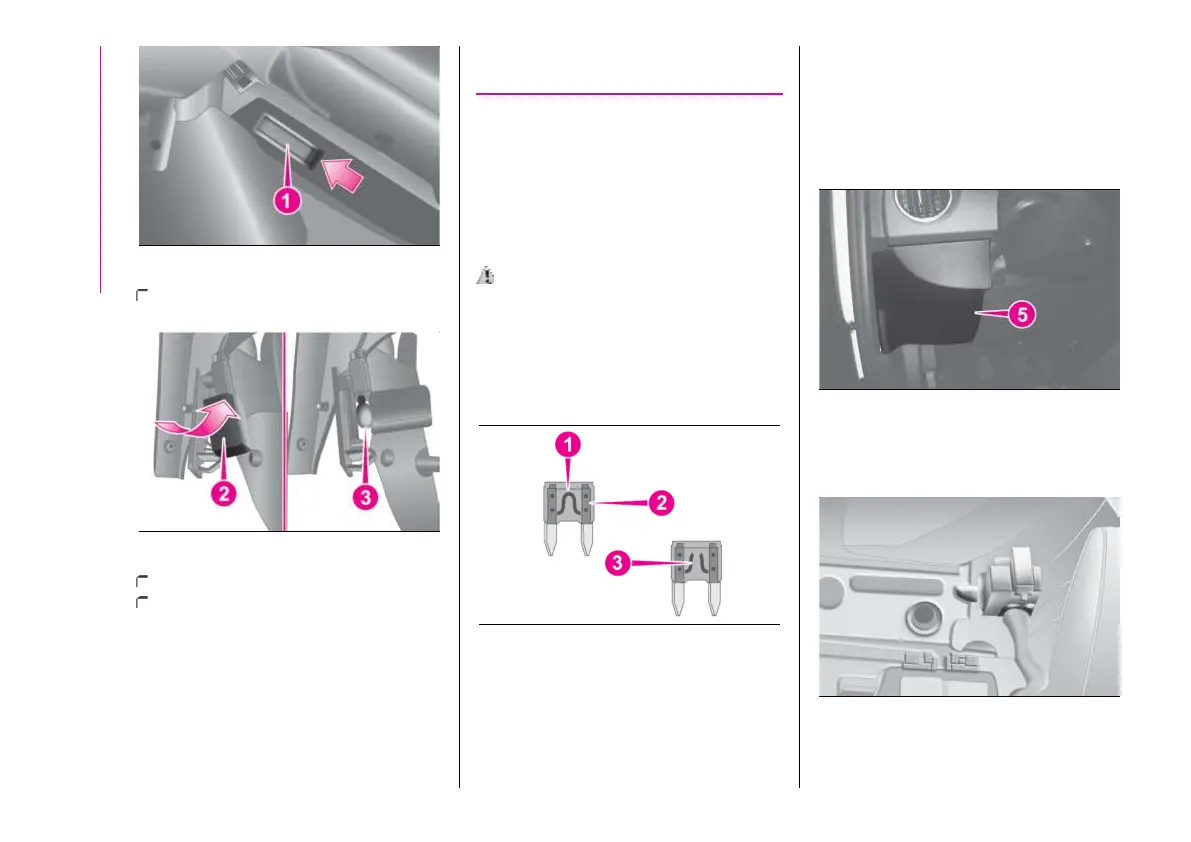

119AB0A0105C
2 = intact fuse;
3 = fuse with damaged filament.
To facilitate fuse replacement, use the
pliers hooked insidethe fuse box lid on
the dashboard left-hand side.
Refer to the tableson the following
pages to identify the protective fuse.
FUSELOCATION
Dashboard fusebox
To access the fuse you must remove
the press-fit cover(5) fig. 120.
120AB0A0291C
The 5A fuse for door mirror demisting is
located in the diagnosis socket area, as
shown in fig. 121.
121AB0A0317C
