ABB A170-M Series Original Operation Manual

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.9 Installing the cartridge group
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019

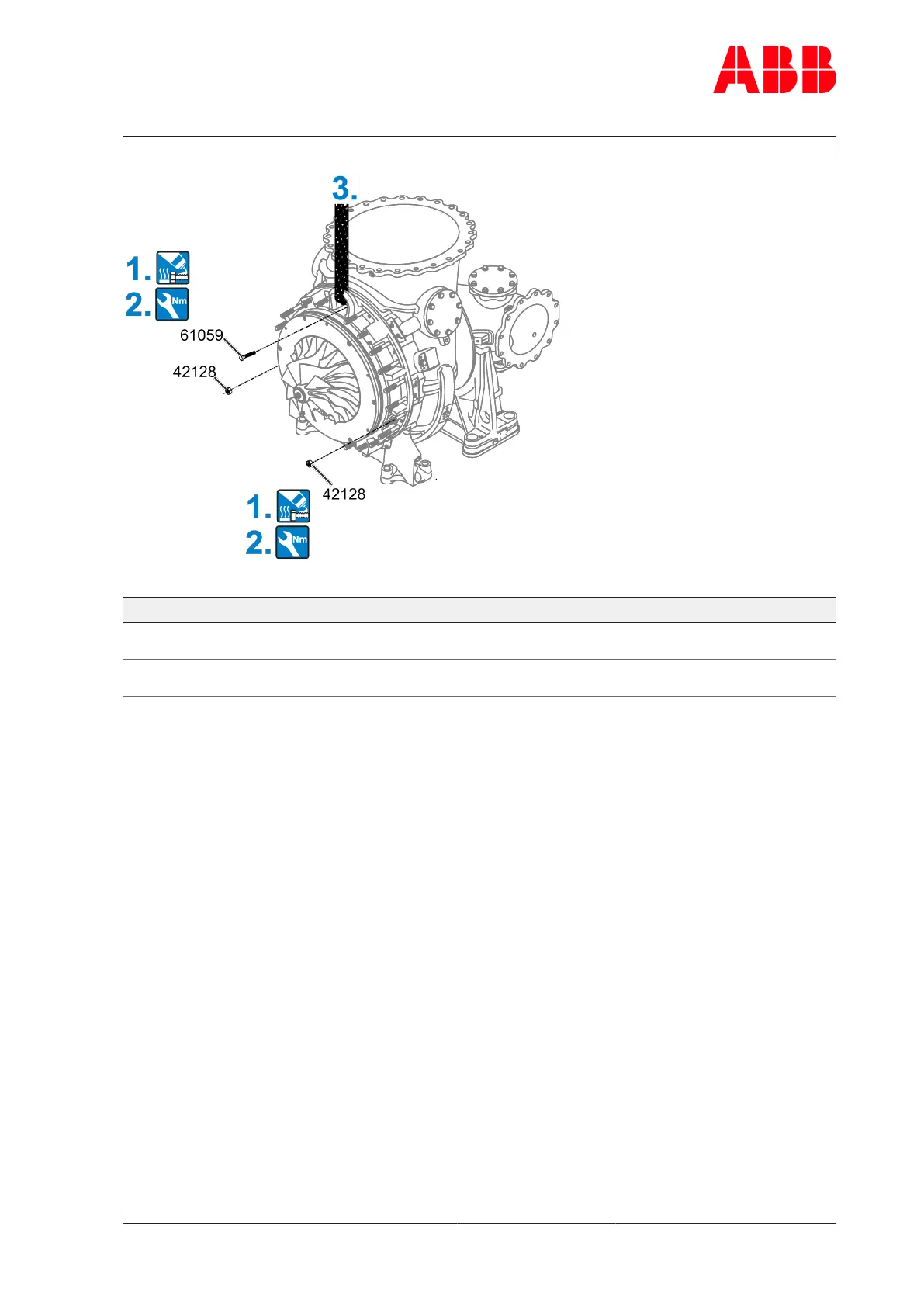

Fig.50: Installing the cartridge group 2
Part number A170-M A175-M
61059 / 42128 M22
415 Nm
M24
490 Nm
86505 M18x1.5
150 Nm
M18x1.5
150 Nm
Table37: Tightening torque (61059 / 42128 / 86505)
1. Coat thread of screw (61059) and two bolts for the nuts (42128) with high-temperature
grease.
2. Secure cartridge group with screw (61059) and nuts (42128).
3. Remove the lifting gear.
Page 77 / 108
