Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.6 Removing the cartridge group
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019
CAUTION
Clearance between blade tip and casing
Serious damage to machinery or property can result from the rubbing or
jamming of the blade tips on the casing.
u Check that the blades do not rub on the turbine diffuser during disas-
sembly/assembly by rotating the rotor.

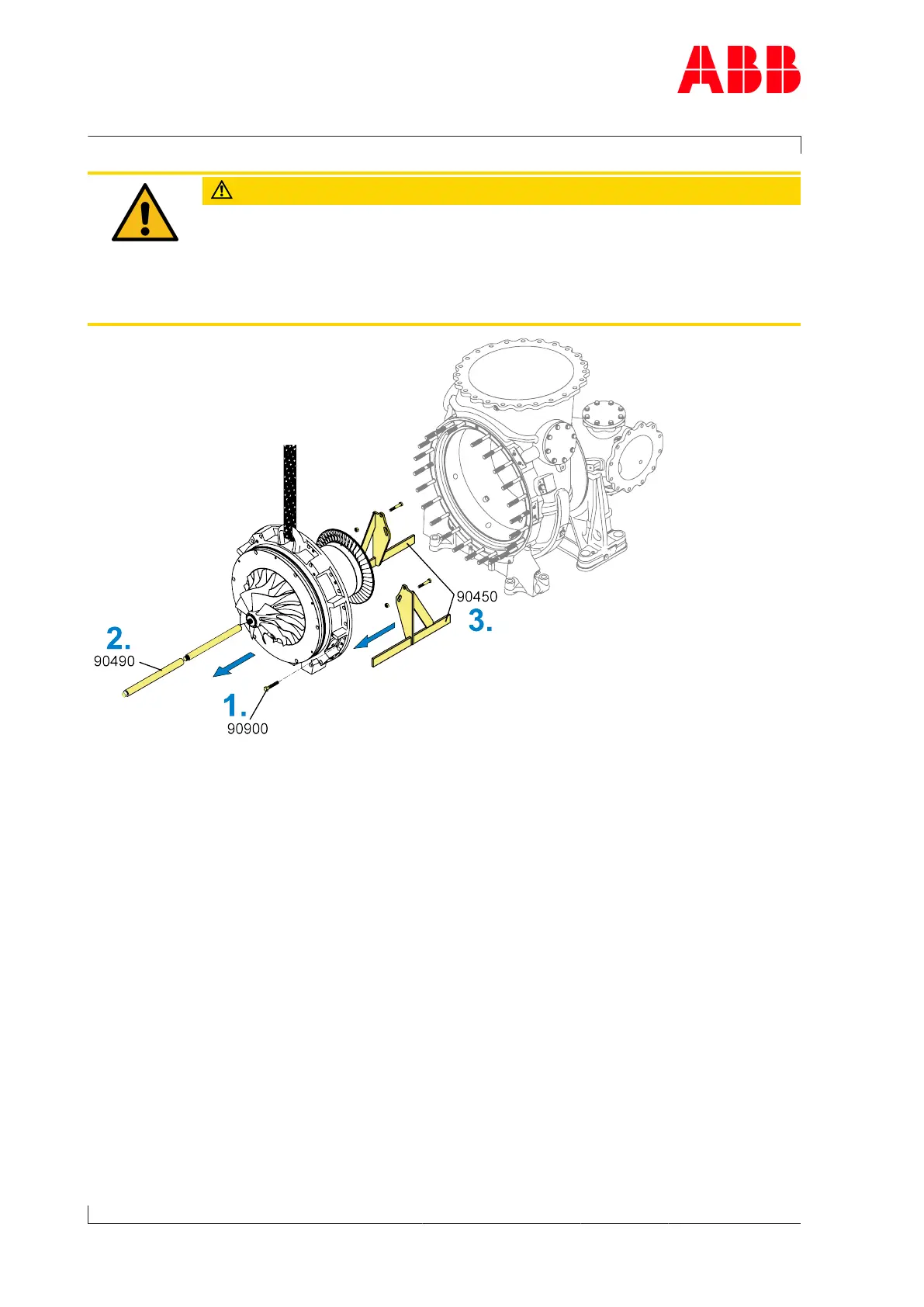

Fig.37: Removing cartridge group 2
1. Evenly press off cartridge group by screwing three press-off screws (90900) into the
designated holes.
2. Using two guide rods (90490), move out cartridge group.
3. Fit supports (90450) and put down cartridge group.
Page 68 / 108
