ABB A170-M Series Original Operation Manual

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019

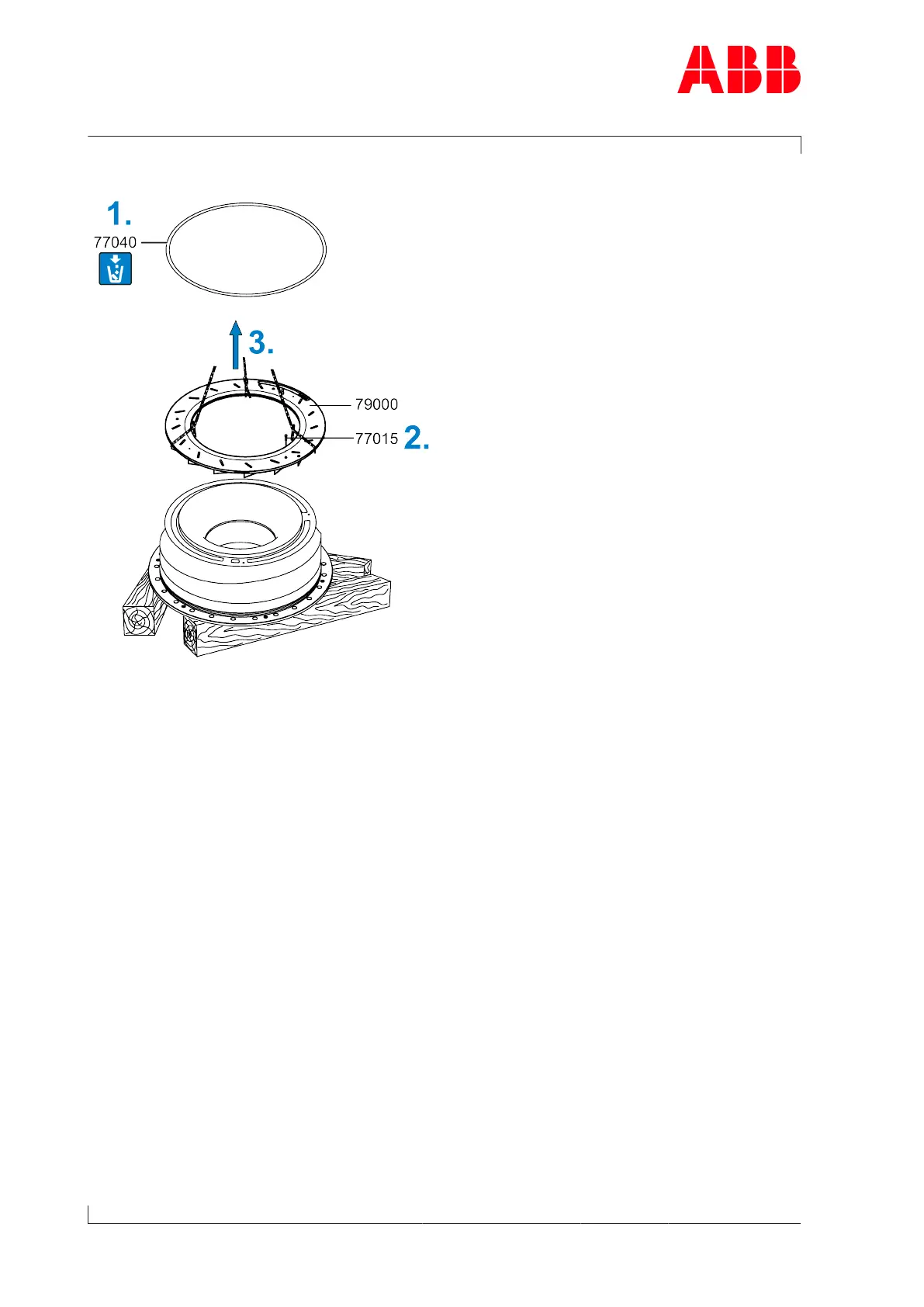

Removing the diffuser
Fig.33: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop diffuser(79000) with lifting gear and remove.
Page 64 / 108
