Operation Manual / 4 Product description / A100-M axial
1 Introduction / 1.4 Layout and function of the turbocharger
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019
1.4 Layout and function of the turbocharger

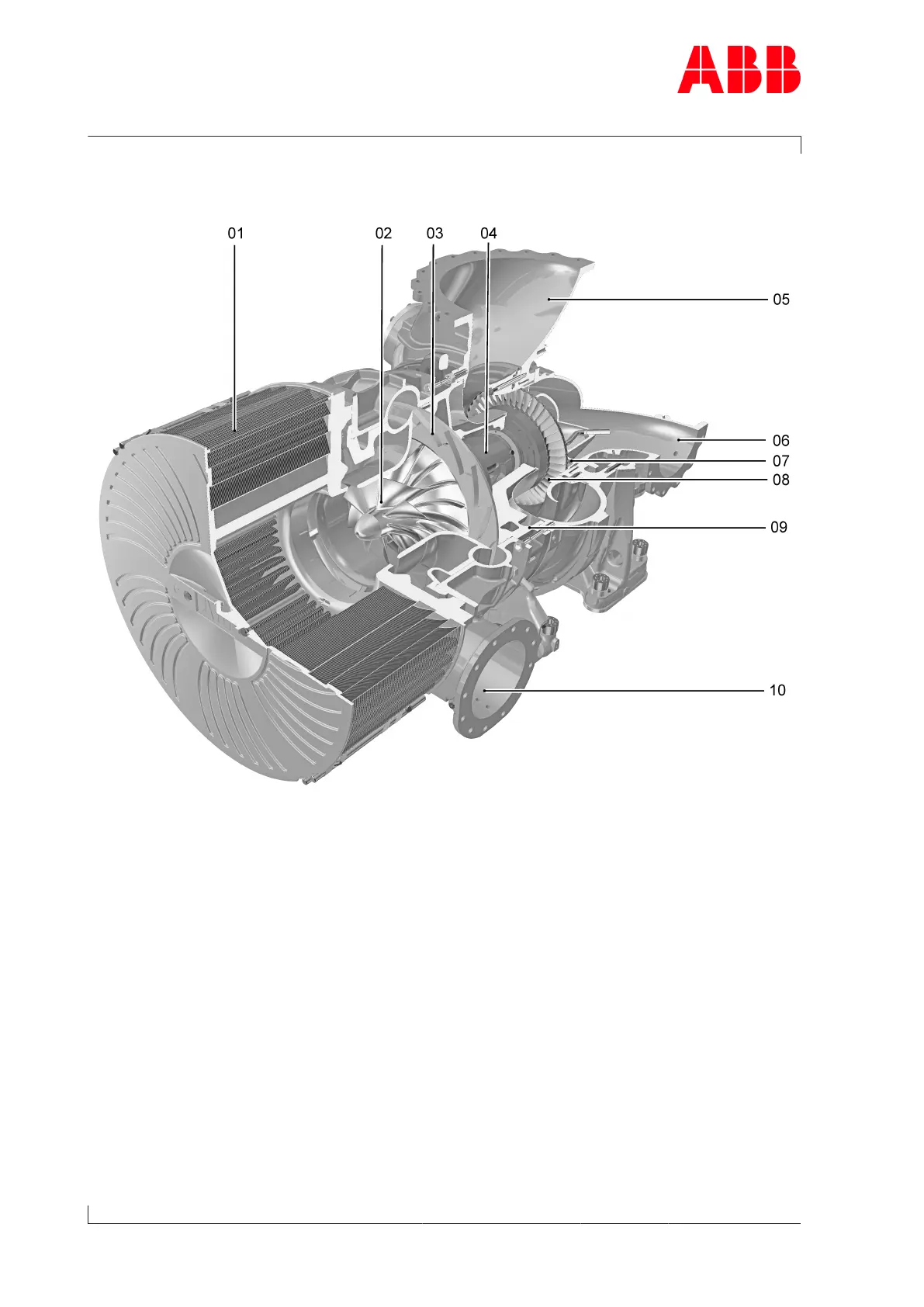

Fig.1: Layout and function
01 Filter silencer / air suction branch 06 Gas inlet casing
02 Compressor wheel 07 Nozzle ring
03 Diffuser 08 Turbine
04 Bearing bush 09 Bearing casing
05 Gas outlet casing 10 Compressor casing
