Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.9 Installing the cartridge group
© Copyright 2019 ABB. All rights reserved. HZTL4033_DE Revision C February 2019

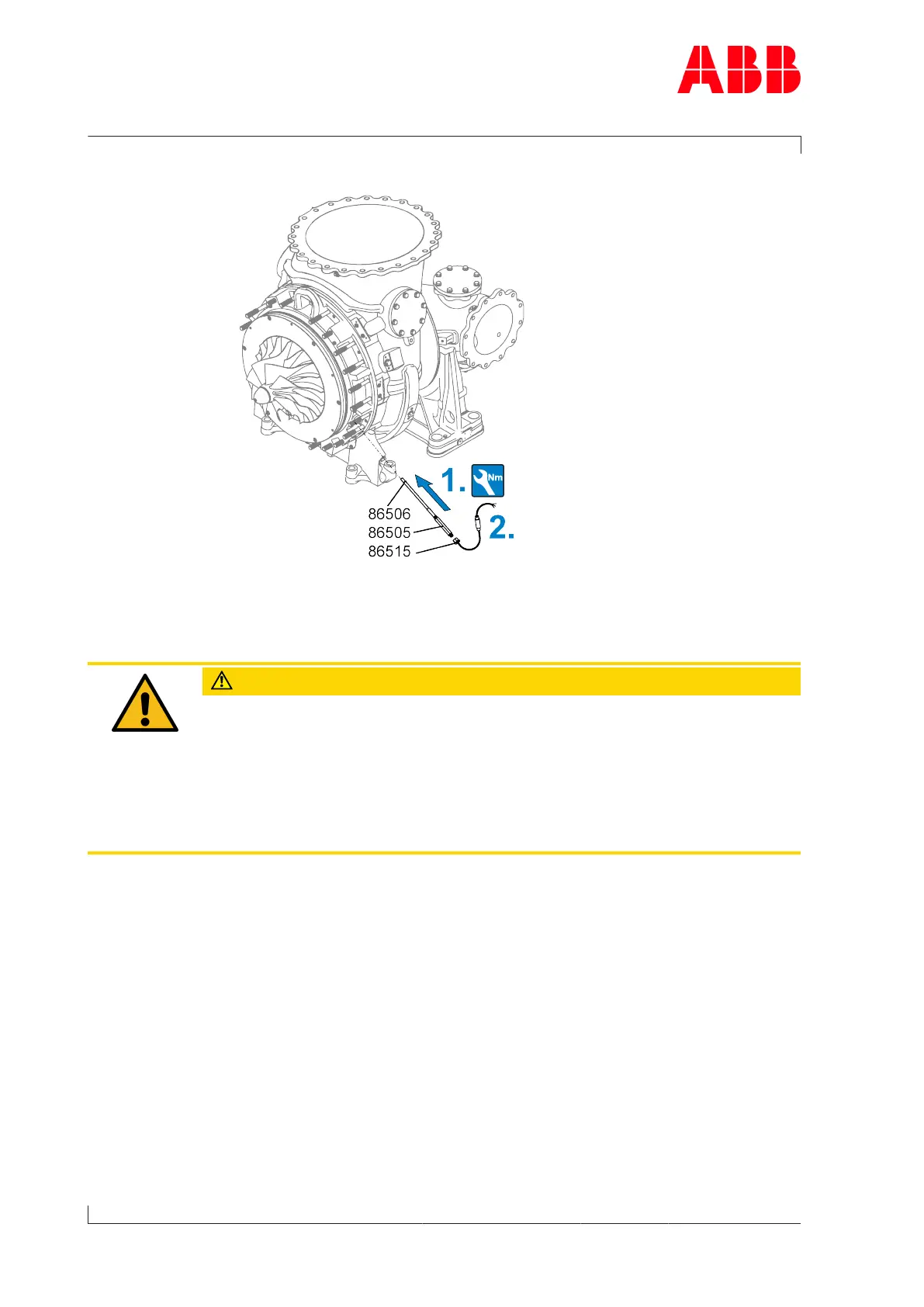

Fig.53: Installing the cartridge group 3
1. Screw in and tighten speed sensor (86505) with new O-ring (86506).
2. Insert cable connector (86515).
CAUTION
Oil orifice plates
An orifice plate for adjusting the oil pressure is fitted in each of the two oil
inlet channels in the bearing casing. When the cartridge group, the bearing
casing or the turbocharger is fitted to the engine, it must be ensured that
the orifice plates that are specified for the turbocharger have been installed
in the two oil inlet channels.
u Check correct installation of oil orifice plates.
u Remove temporary covers on oil connections.
u Fit all oil pipes according to instructions of enginebuilder.
Version with compressor wheel cooling
u Fit air supply line (see Compressor wheel cooling →5).
Page 80 / 108
