Turning and moving in wall insert

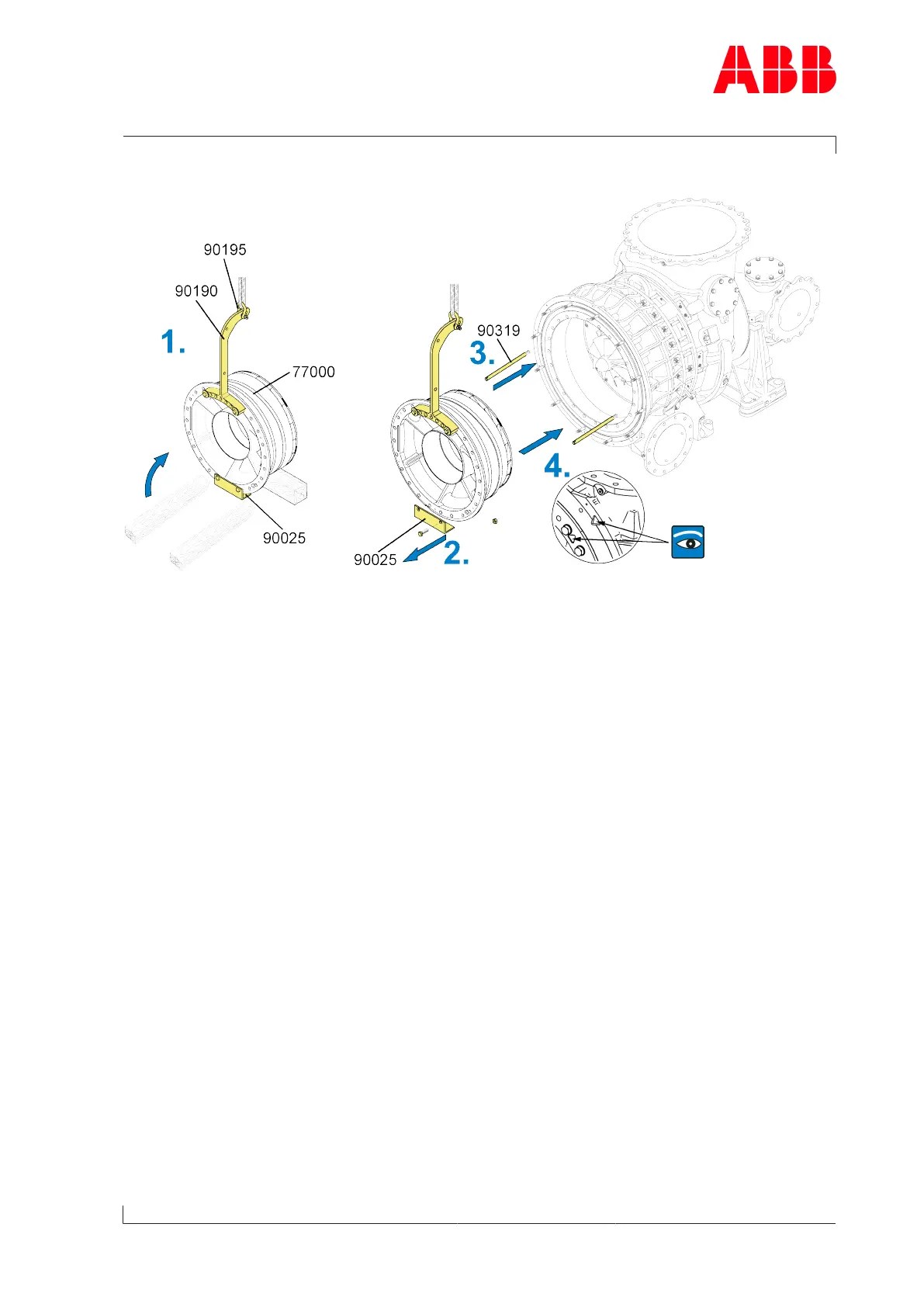

Fig.56: Turning and moving in wall insert
1. Fasten lifting device (90190 / 90195) to front of flange.
Carefully turn wall insert (77000) with fitted diffuser over the support angle (90025) and
pull up vertically.
2. Remove support angle (90025), bolts and nuts.
3. Fit guide studs (90319).
4. Carefully install the wall insert (77000) in the compressor casing. Make sure both mark-
ings are in the correct position.
