Transporting and turning wall insert

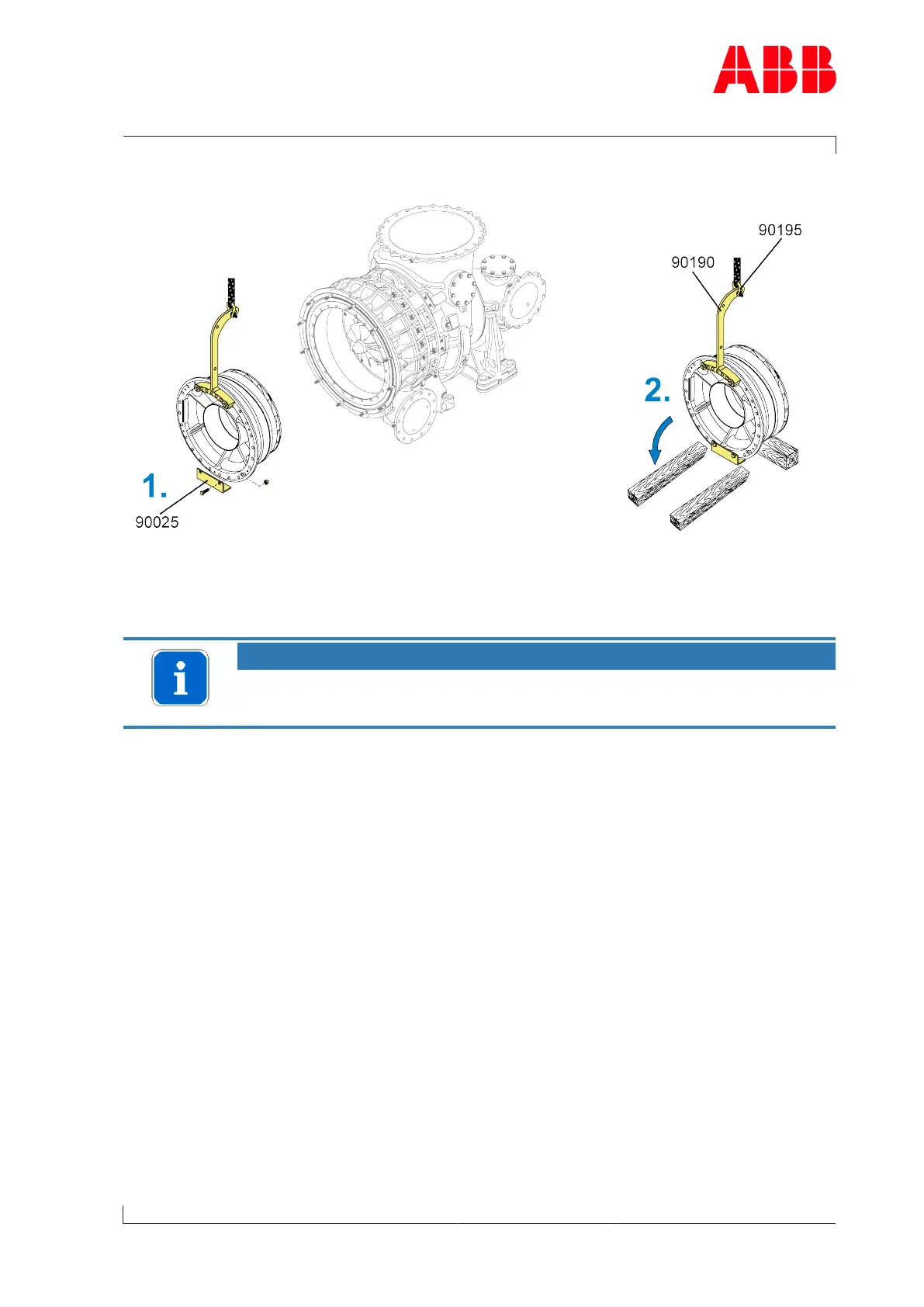

Fig.32: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
NOTICE
Reusing the lifting device
Place wall insert such that lifting device (90190/90195) can be removed.
