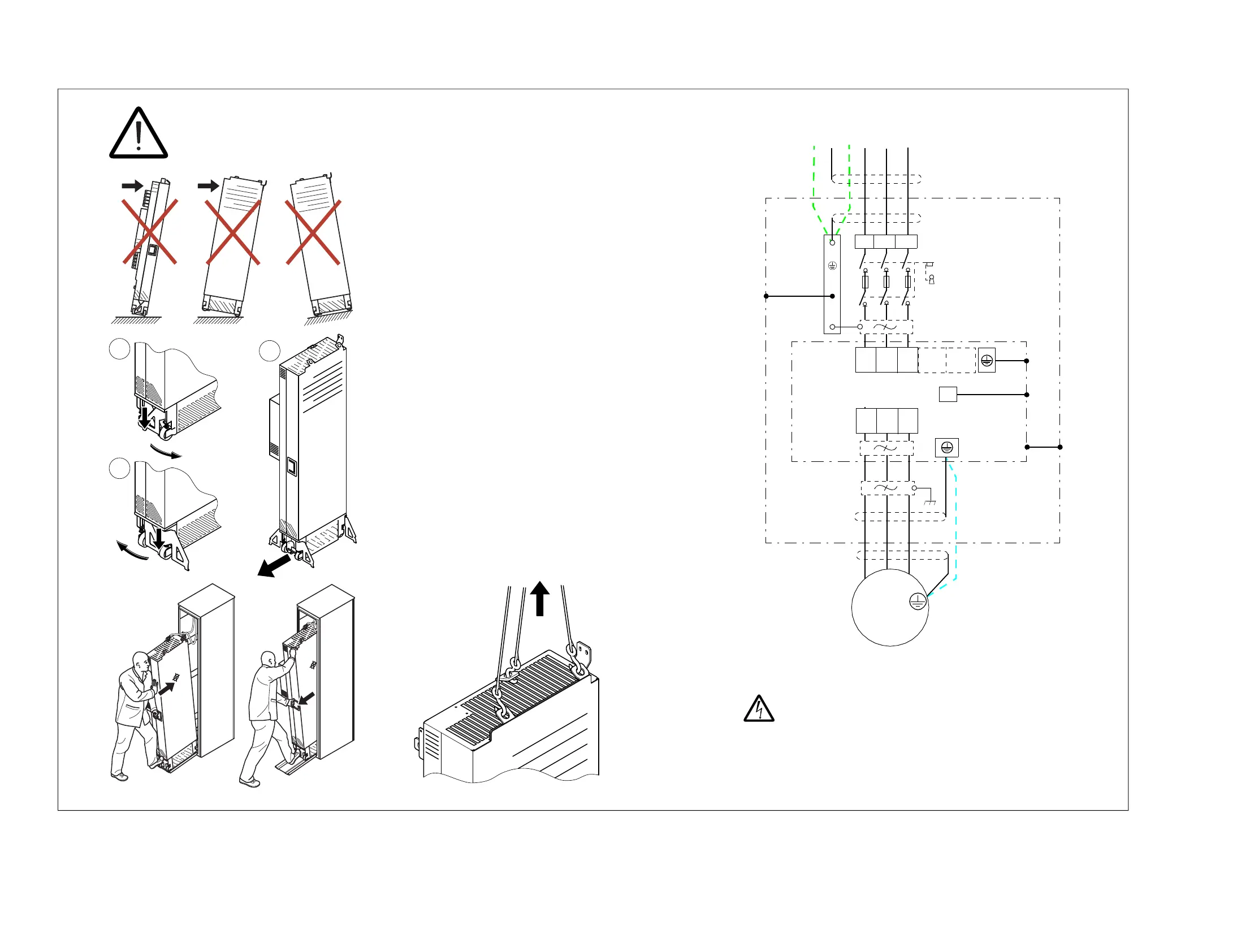

Handling the drive module, power cable connection diagram
1
2
3
WARNING! The UDC+ and UDC- terminals of the drive
module must not be used for any other than optional
external brake chopper connection.
INPUT
OUTPUT
ACQ580-34
U1
V1
W1
3 ~
M
(PE) PE (PE)
L1 L2 L3
L1 L2 L3
PE
U1
L1/
V1
L2/ L3/
W1
UDC- UDC+
T1/
U2
T2/
V2
T3/
W2
PE
230 Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide enclosure
