ABB ACQ580-34 - Installing the Drive Module and LCL Filter Module into a Rittal VX25 Enclosure

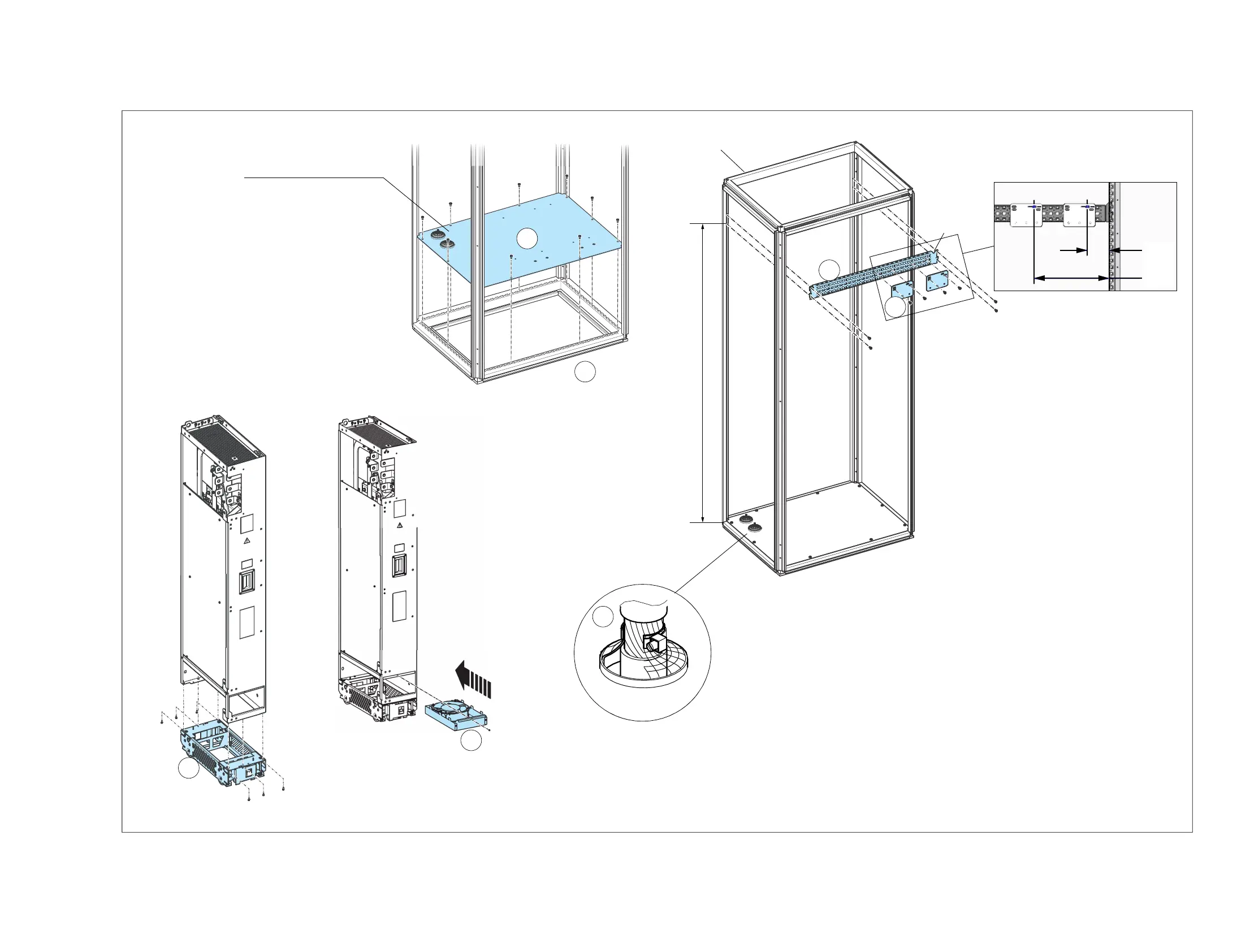

Installing the drive module and LCL filter module into a Rittal VX25 enclosure
See instructions in section Installing the drive module and LCL filter module into an enclosure (page 135).
Rittal 8806.000
Rittal 8617.140
1705.5 (67.15)
Tapping screw M6×12
Torx T30 8 N·m (71 lbf·in)
360 °
80.5
(3.17)
280.5
(11.04)
non-ABB part (see dimension drawings)
3
4
5
5
3
7
6
Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide enclosure 231
