￭ Base variant (ACS380-04xN)
The base variant has a type code as follows: ACS380-04xN. It is supplied without an
extension module.

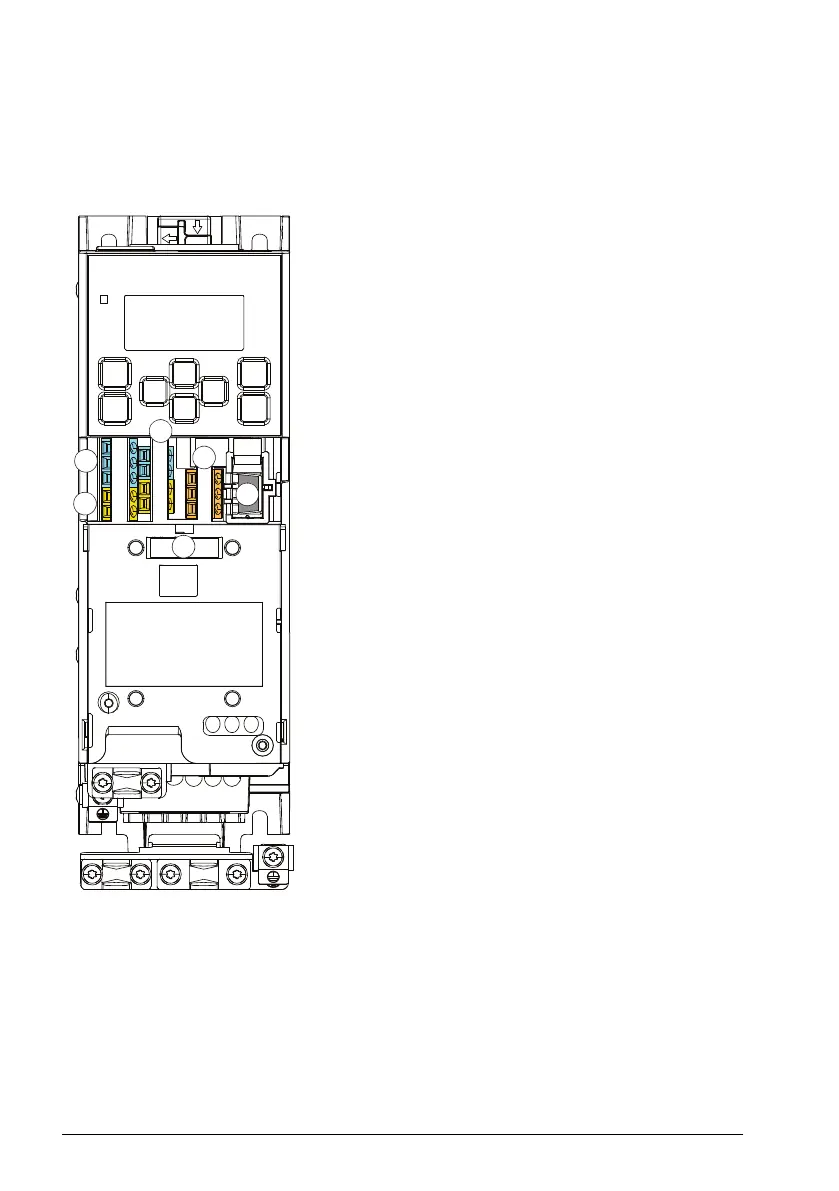

Connections:
RC
RA
RB
+24V DGND DCOM SGND S+
DI1
DI2
S1
S2
1
2
3
4
5
6
1. Auxiliary voltage outputs
2. Digital inputs
3. Safe torque off connections
4. Relay output connection
5. Cold configuration connection for CCA-01
6. Option module slot 1
Option modules
The drive supports option modules (optional extension modules). For a list of option
modules, refer to Type designation key (page 37).
34 Operation principle and hardware description

ABB ACS380 Specifications

General

Mounting	Wall-mounted
Enclosure Class	IP20
Built-in Features	Braking chopper
Communication	Modbus RTU
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, ground fault
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Humidity	5 to 95% relative humidity, non-condensing
Control Method	Scalar control, vector control
