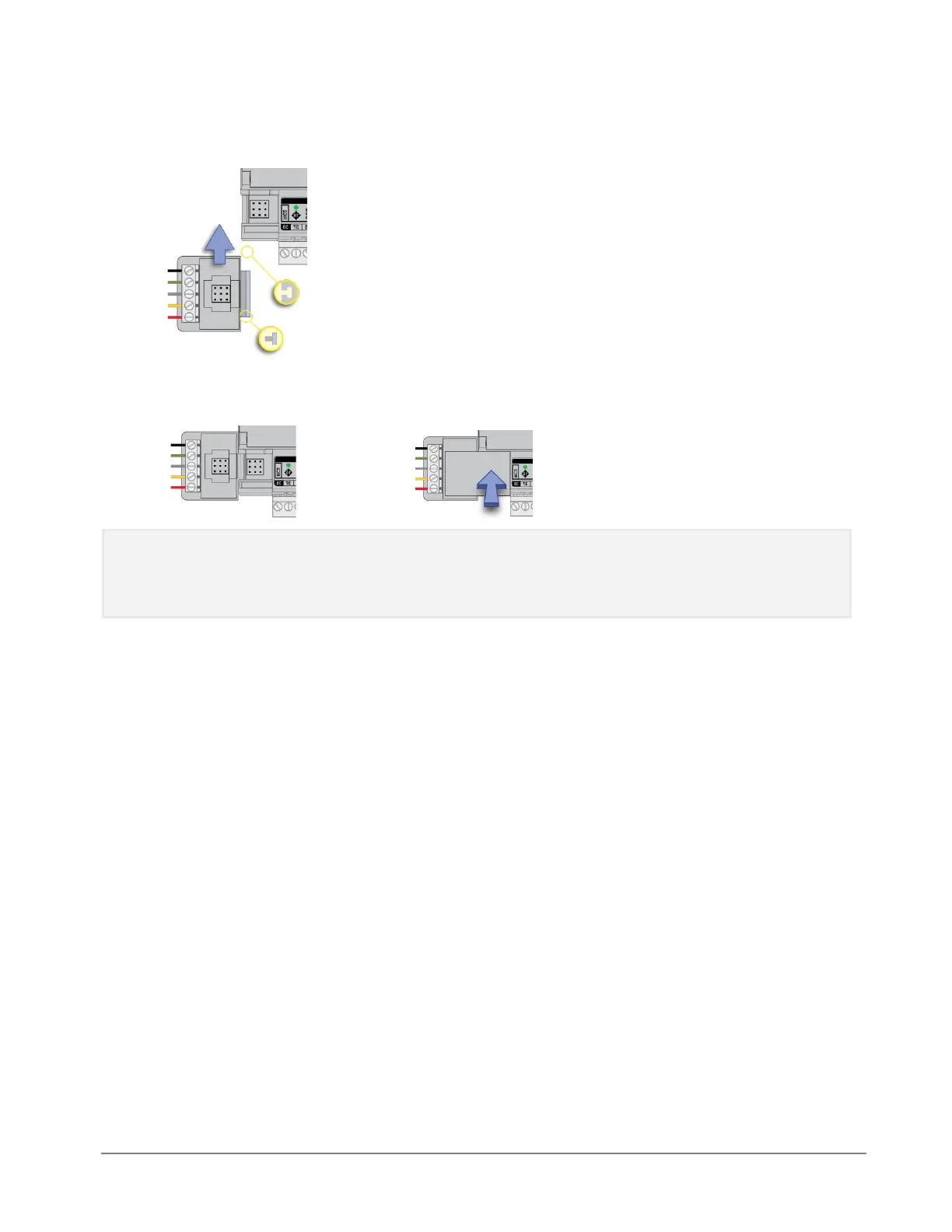

Slide the other RMC connector into the Left-Hand T-slot of the remote FLX.
Insert the second interconnect
Note The termination block can only be used on the right-hand interlink connector of the last FLX unit on the
FLX bus.
While it is possible, in a multi-tier system, to connect intermediate tiers from right to left to ease
installation, the final tier must be wired from left to right so that the FLX bus can be terminated on the
RHS connector of the last FLX on the bus
