ABB EasyLine EL3000 User Manual

EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 69
Gas connections Magnos206 (model EL3020)

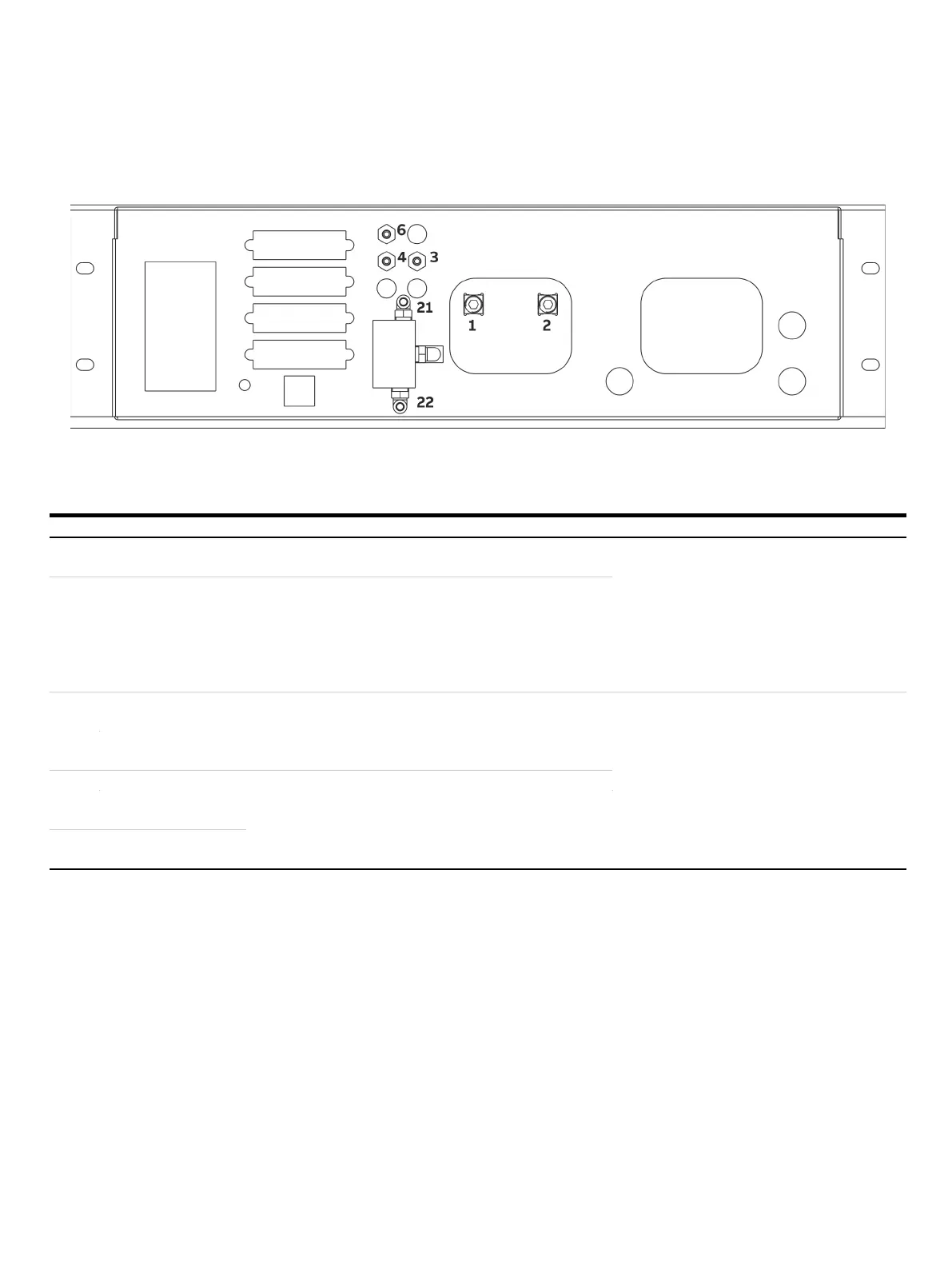

Figure 20: Gas connections Magnos206 (model EL3020)
Magnos206: Gas Connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-in socket (PP) with hose nozzles for
hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
2
Sample gas outlet
—
3
Sample gas outlet
For ‘Integrated gas feed’ option, factory-connected to 1 sample gas
inlet
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
4
Sample gas inlet
For ‘Integrated gas feed’ option with flow sensor only
(without solenoid valve)
6
Pressure sensor
—
21
Sample gas inlet
On solenoid valve with ‘integral gas feed’ option with solenoid valve,
pump, filter, capillary and flow sensor
Screwed fittings with hose nozzles (PVDF) for
hoses
with
4 mm inside diameter
(included in scope of supply)
22
Test gas inlet
Note
The pressure sensor (see Pressure sensor on page 36) is installed as an option.
For a precise pressure correction as well as for measurements in suppressed measuring ranges, the sensor and sample gas outlet
have to be connected to each other via a T-piece and with the use of short conductors.
The lines must be as short as possible or – in the case of a greater length – have a sufficiently large inside diameter (min. 10 mm) so
that the flow effect is minimized.
