ABB FPBA-01 PROFIBUS DP User Manual

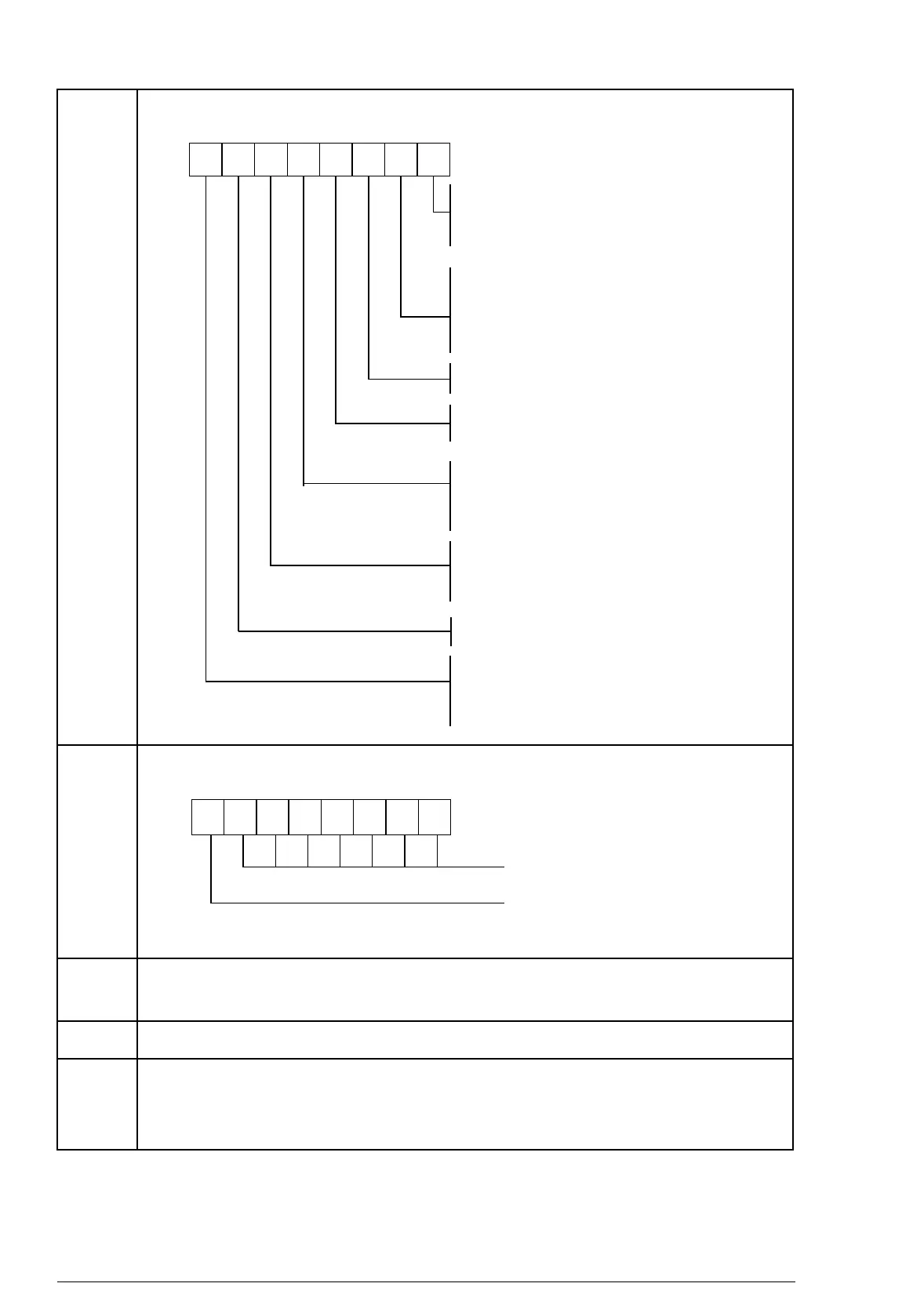

124 Communication protocol
1 Station_Status_2
2 Station_Status_3
3 Diag.Master_Add
The address of the master that parameterized this slave
4…5 Ident_Number (for FPBA-01: 0959h)
6
2)
Ext_Diag_Data (0x02) (DP-V0 only)
The number of bytes (including this byte) reserved for Extended
Diagnosis
x0xxx1xx
Diag.Prm_Req (Set by Slave)
Slave requires re-configuration
and re-parameterization
Diag.Stat_Diag (Set by Slave)
Static diagnosis. Slave
(temporarily) unable to provide
valid data.
Always set to 1 by slave
Diag.WD_On (Set by Slave)
Watchdog on
Diag.Freeze_Mode
(Set by Slave) Freeze
command received by slave
Diag.Sync_Mode (Set by Slave)
Sync command received by
slave
Reserved
Diag.Deactivated
(Set by Master, reset by Slave)
Slave is inactive
MSB LSB
x0000000
MSB LSB
Reserved
Diag.Ext_Diag_Overflow
(Set by slave)
