3.3 Inspection activities
3.3.1 Inspecting the oil level in axis-1 gearbox
Location of gearbox

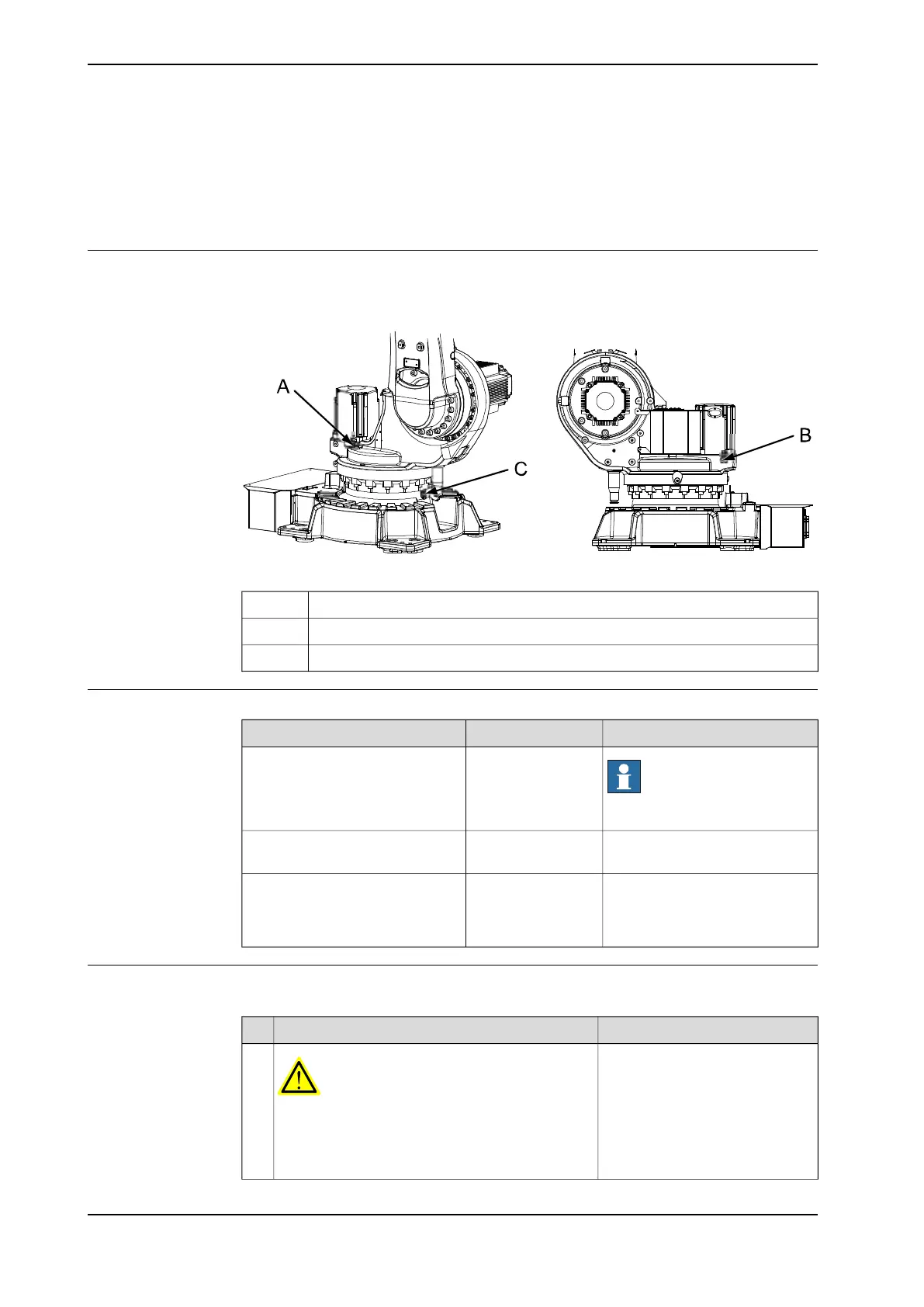

The axis-1 gearbox is located between the frame and base. See oil plugs in the
following figure.
xx0600002958
Oil plug, fillingA
Oil plug, inspectionB
Oil plug, drainingC
Required equipment
NoteArt. no.Equipment
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 149.
Lubricating oil
Content is defined in section
Standard tools on page 346.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Inspecting the oil level in axis-1 gearbox
Use this procedure to inspect the oil level in the axis-1 gearbox.
NoteAction
WARNING
Handling gearbox oil involves several safety risks.
Before proceeding, please read the safety informa-
tion in the section Safety risks during work with
gearbox lubricants (oil or grease) on page 37.
