ABB IRB 6620 - Lifting the Robot with Lifting and Turning Tool

2.5.2 Lifting the robot with lifting and turning tool
The lifting and turning tool

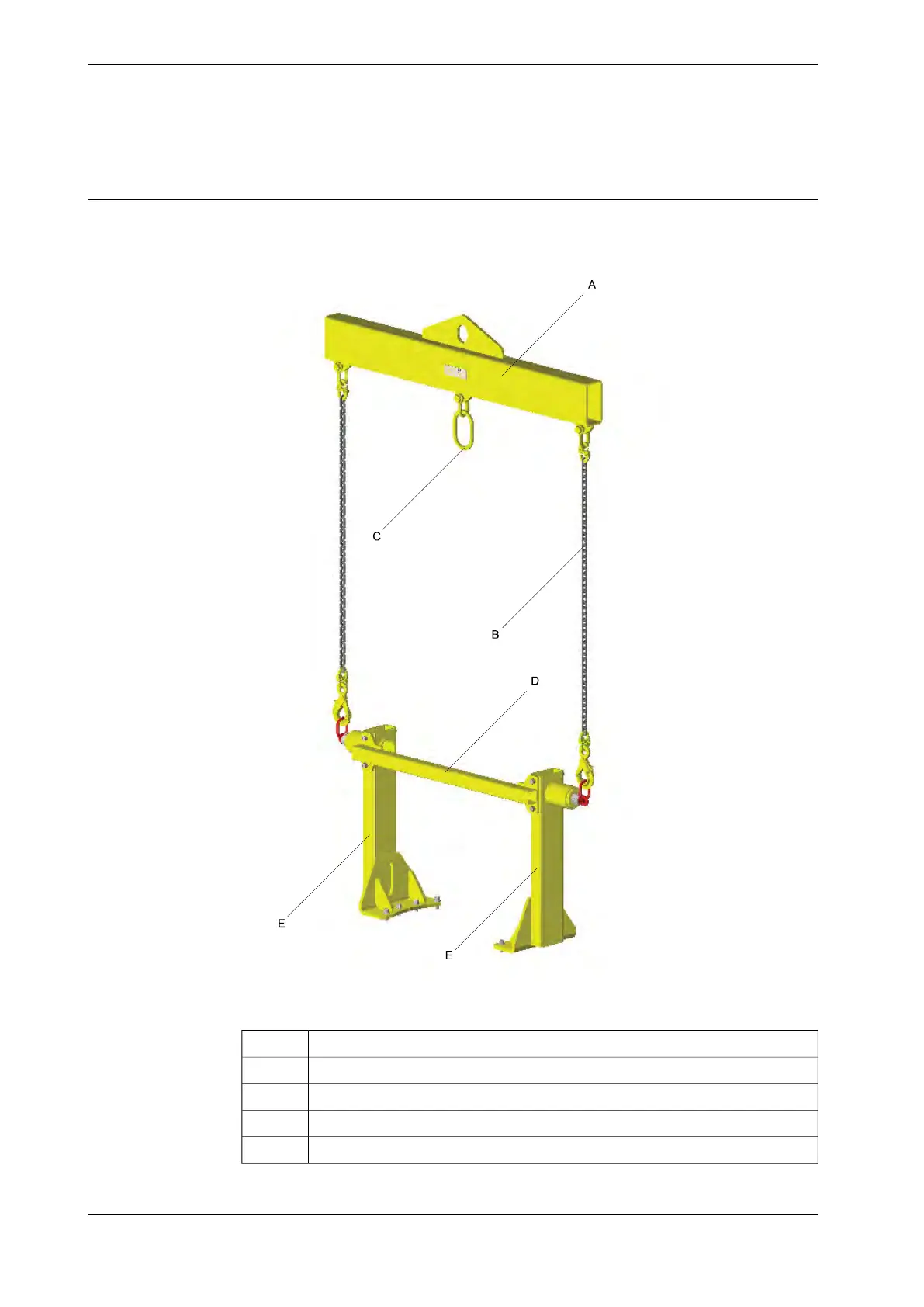

The lifting and turning tool 3HAC025792-001is used for lifting and turning of the
IRB 6620.
xx0900000325
Upper lifting beamA
ChainsB
Lifting eyeC
Lower lifting beamD
Lifting hold (Left and Right)E
