Fitting the fork lift accessory set
NoteAction
Tightening torque: 300 Nm

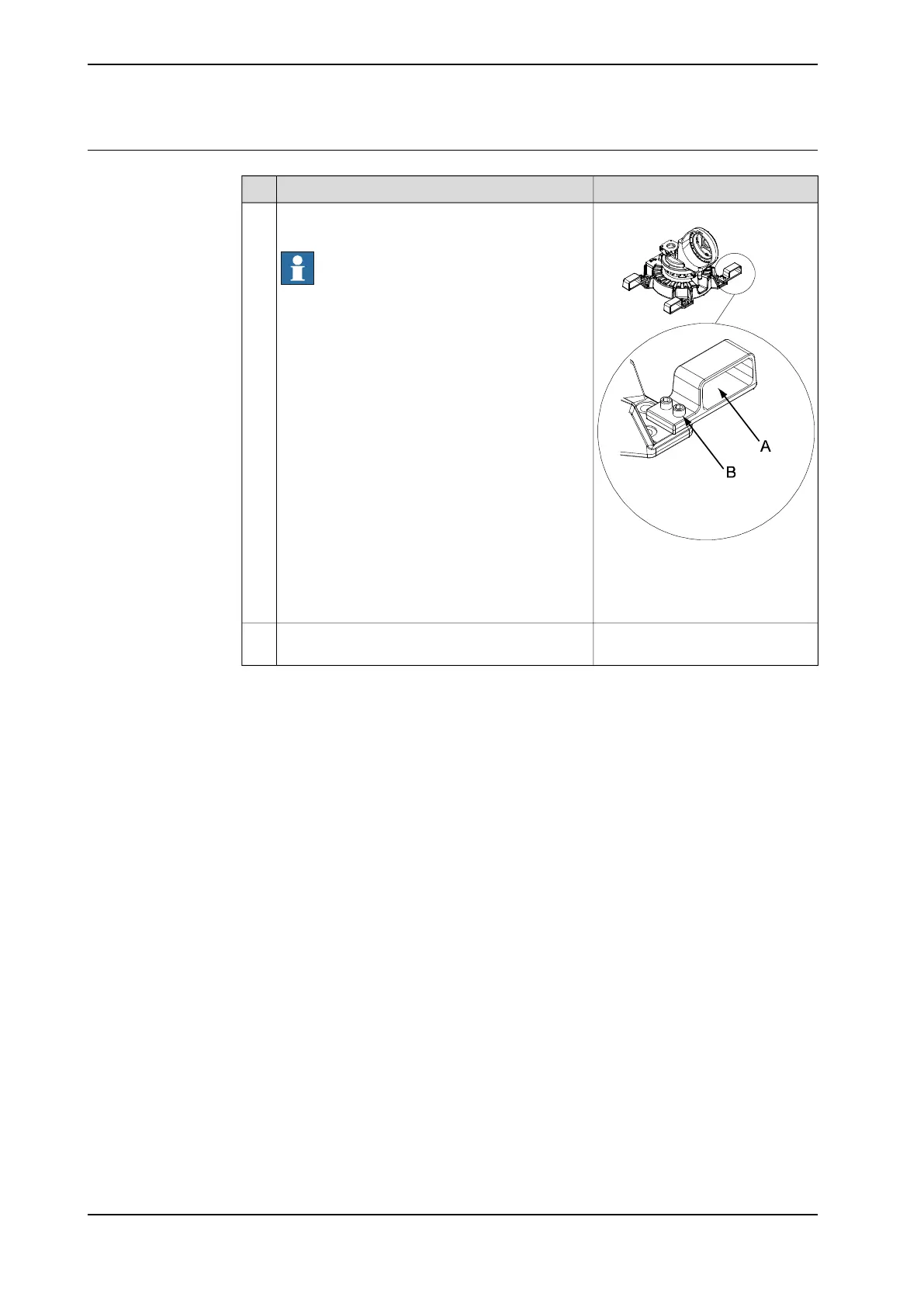

xx0600002930
A Fork lift pocket (4 pcs)
B Attachment screw M20x60
quality 8.8 (2 pcs x4)
Fit the four fork lift pockets on the base of the ro-
bot with its attachment screws.
Note
Before fitting any attachment screws, make sure
they are not damaged in any way. Replace dam-
aged screws.
1
Verify that all four fork lift pockets are properly
secured before lifting.
2
