A071164 V1 EN

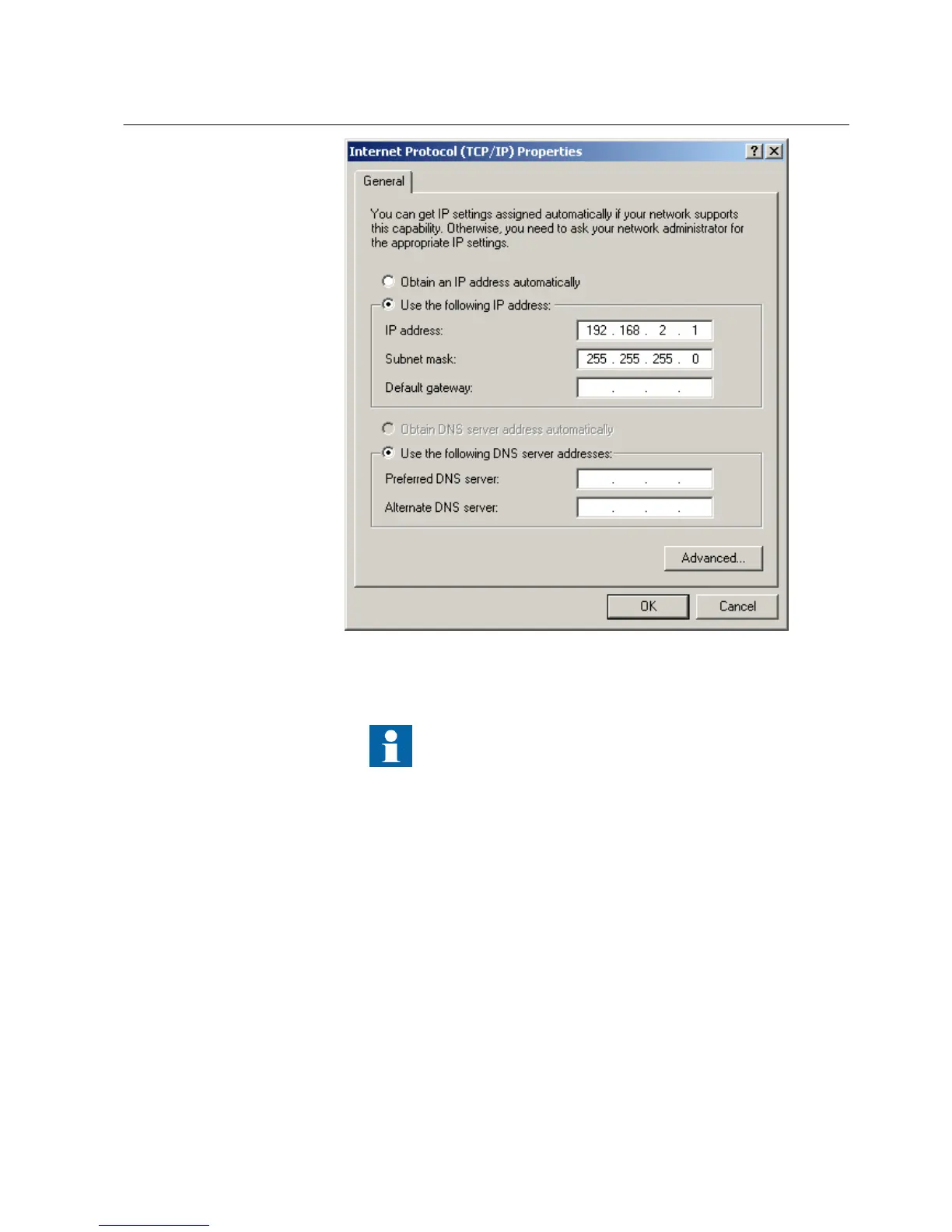

Figure 65: Setting IP address and subnet mask
5. Close all open windows by clicking OK and start PCM600.
Administrator rights are requested to change the configuration
as described above.
Setting IED's IP address in PCM600
In PCM600 the IED's IP address can be defined either via the first window of the
wizard by including a new IED in the project or by entering the IED's IP address in
the Object Properties window.
1. Select the IED to which you want to define the IP address.
2. Open the Object Properties window.
3. Place the cursor in the IP Address row and enter the IP address.
The used method depends on the time at which the IP address is available. Defining
IP address in the Object Properties windows allows changing the IP address at any
time.
1MRS756708 A Section 8
Commissioning
615 series 97
Operation Manual

ABB REF615 Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	DIN-rail mounting
Operating Temperature Range	-25°C to +55°C
Protection Functions	Overcurrent, Earth-fault, Thermal overload
Inputs	3-phase current, 3-phase voltage
Enclosure	IP54 (front), IP20 (back)
