ABB REF615 - 6.4 Changing IED Functionality; 6.4.1 Defining and Managing Setting Groups

Use the button as a shortcut for clearing. The first three-second
press clears the indications. The second three-second press clears the
alarm LEDs. If new indications have appeared between the first and
the second press, they are cleared first.
6.4 Changing IED functionality
6.4.1 Defining setting group
6.4.1.1 Activating a setting group
IED settings are planned in advance for different operation conditions by calculating
setting values to different setting groups. The active setting group can be changed by
the IED application or manually from the menu.
1.
Select Main Menu/Settings/Setting group/Active group and press .
A071150 V2 EN

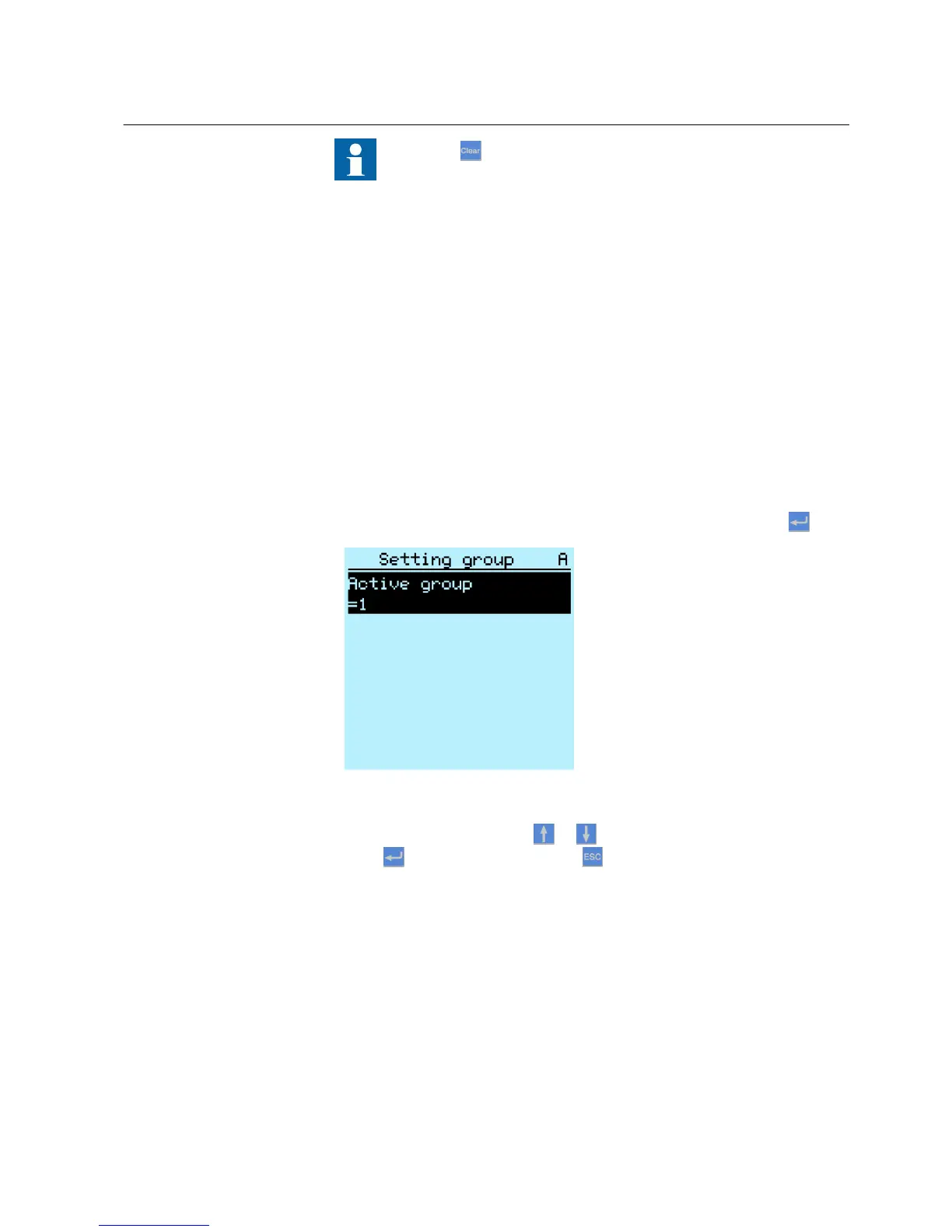

Figure 53: Active setting group
2.
Select the setting group with or .
3.
Press to confirm the selection or to cancel.
