6.1.1.2 Monitoring an internal IED fault
The flashing green LED indicates an internal IED fault. Internal IED fault messages
are shown in a dialog box.
A071144 V2 EN

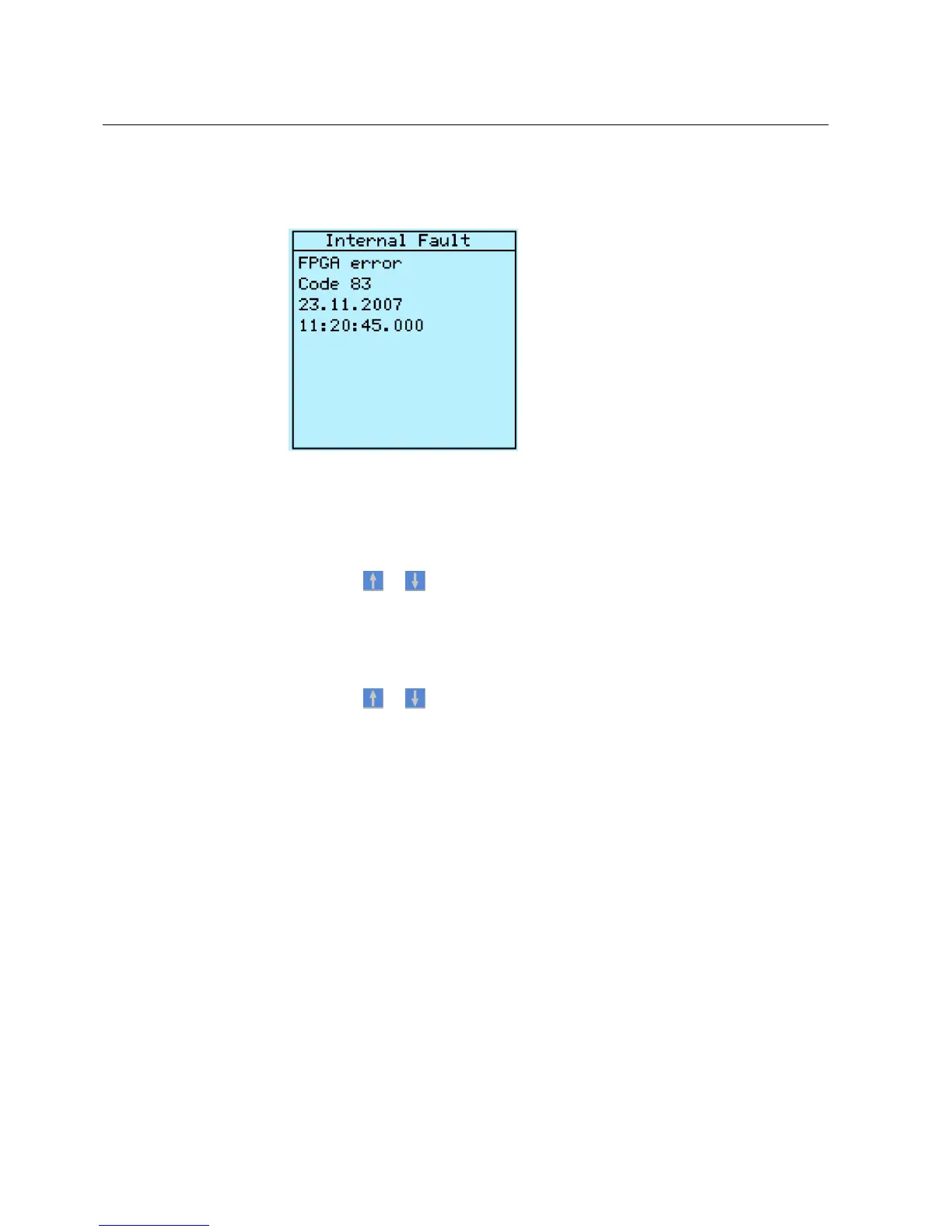

Figure 45: Fault indication
1. Select Main menu/Monitoring/IED status/Self-supervision to monitor the
latest fault indication.
2.
Press or to scroll the view.
6.1.1.3 Monitoring condition monitoring data
1. Select Main Menu/Monitoring/I/O status/Condition monitoring.
2.
Press or to scroll the view.
With PCM600 the user can map output signals from condition monitoring related
function blocks to the appropriate destinations.
6.1.2 Measured and calculated values
Measurement view in Main Menu/Measurements shows the momentary actual
values for various power system measurements.
All values show the momentary measurement value and some include also demand
values calculated from set period.
6.1.2.1 Measured values
Measured values can be accessed through the LHMI or WHMI.
