ABB REF615 User Manual

A070858 V2 EN

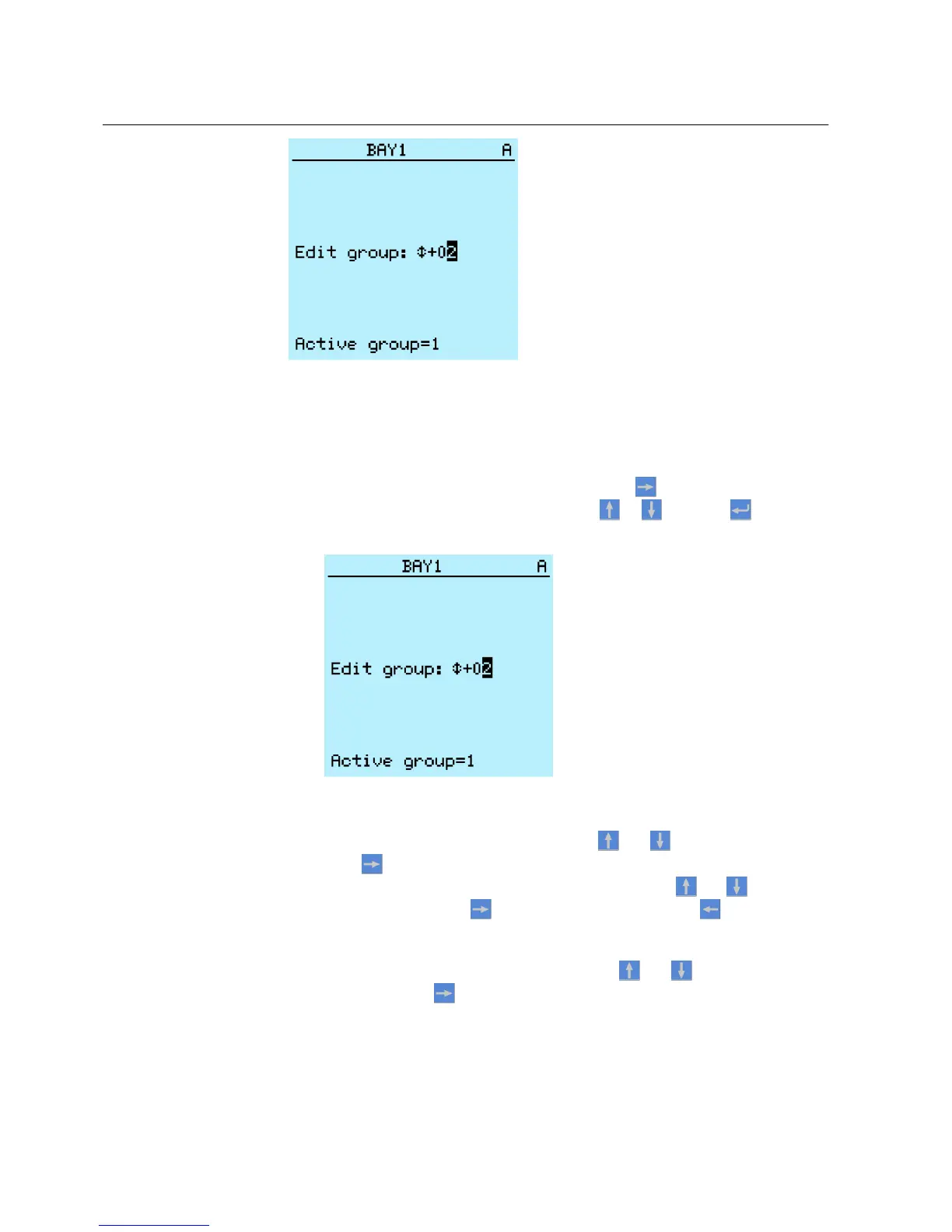

Figure 67: Selecting a setting group
Browsing and editing setting group values
1.
Select Main Menu/Settings/Settings and press .
2.
Select the setting group to be viewed with or and press to confirm
the selection.
A071166 V2 EN
Figure 68: Selecting setting group
3.
To browse the settings, scroll the list with and and to select a setting
press .
4.
To browse different function blocks, scroll the list with and and to select
a function block press . To move back to the list, press .
The function block list is shown in the content area of the display. On the left
in the header, you see the current setting group, and on the right the menu path.
5.
To browse the parameters, scroll the list with
and and to select a
parameter, press .
The setting group values are indicated with #.
Section 8 1MRS756708 A
Commissioning
106 615 series
Operation Manual

ABB REF615 Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	DIN-rail mounting
Operating Temperature Range	-25°C to +55°C
Protection Functions	Overcurrent, Earth-fault, Thermal overload
Inputs	3-phase current, 3-phase voltage
Enclosure	IP54 (front), IP20 (back)
