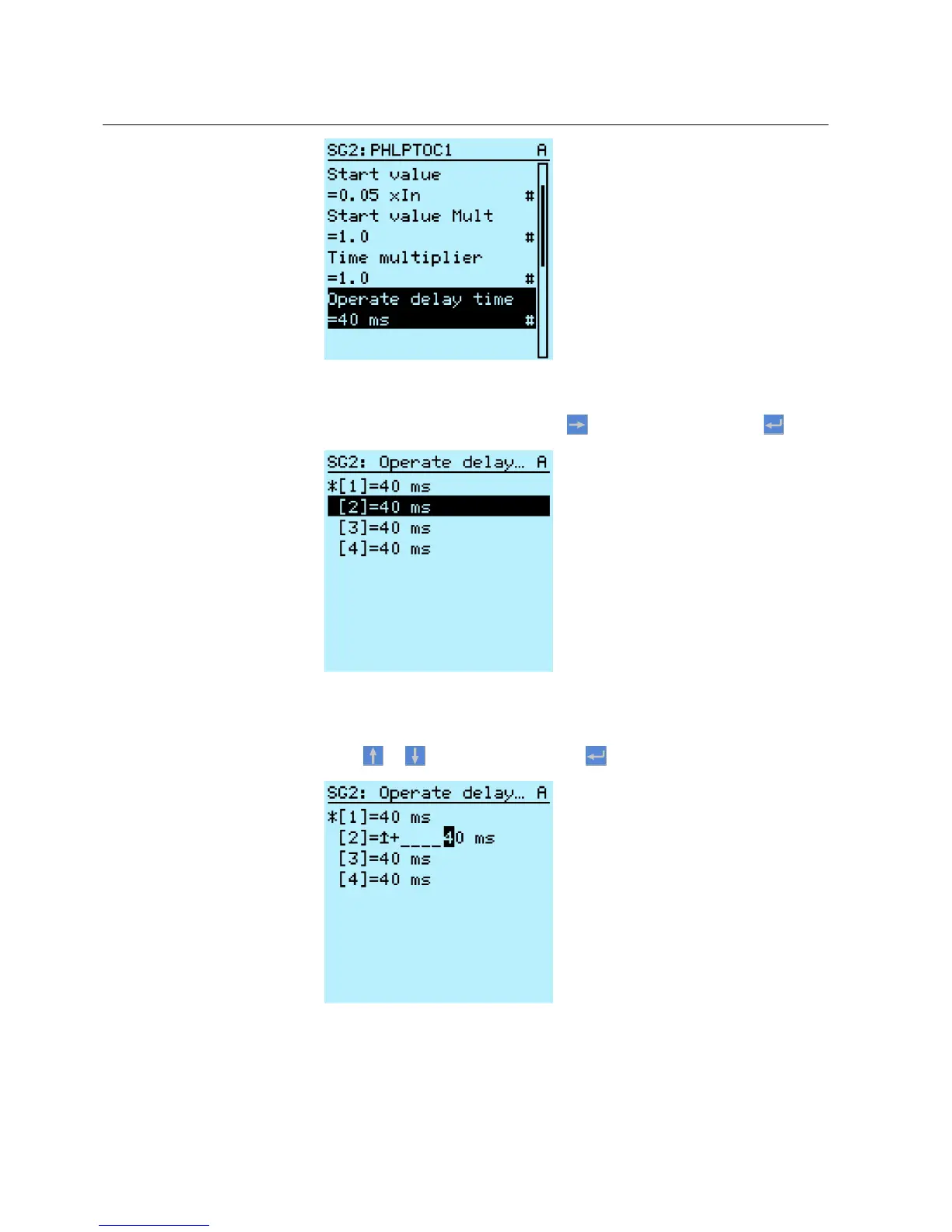

Figure 57: Setting group parameter
6.
To select a setting group value, press
and to edit the value press .
A071168 V3 EN
Figure 58: Selecting setting group value
Only values within the selected setting group can be changed.
7.
Press or to change the value and to confirm the selection.
A070922 V3 EN
Figure 59: Editing setting group value
The active setting group is indicated with an asterisk * .
Section 6 1MRS756708 A
Operating procedures
78 615 series
Operation Manual

ABB REF615 Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Mounting	DIN-rail mounting
Operating Temperature Range	-25°C to +55°C
Protection Functions	Overcurrent, Earth-fault, Thermal overload
Inputs	3-phase current, 3-phase voltage
Enclosure	IP54 (front), IP20 (back)
