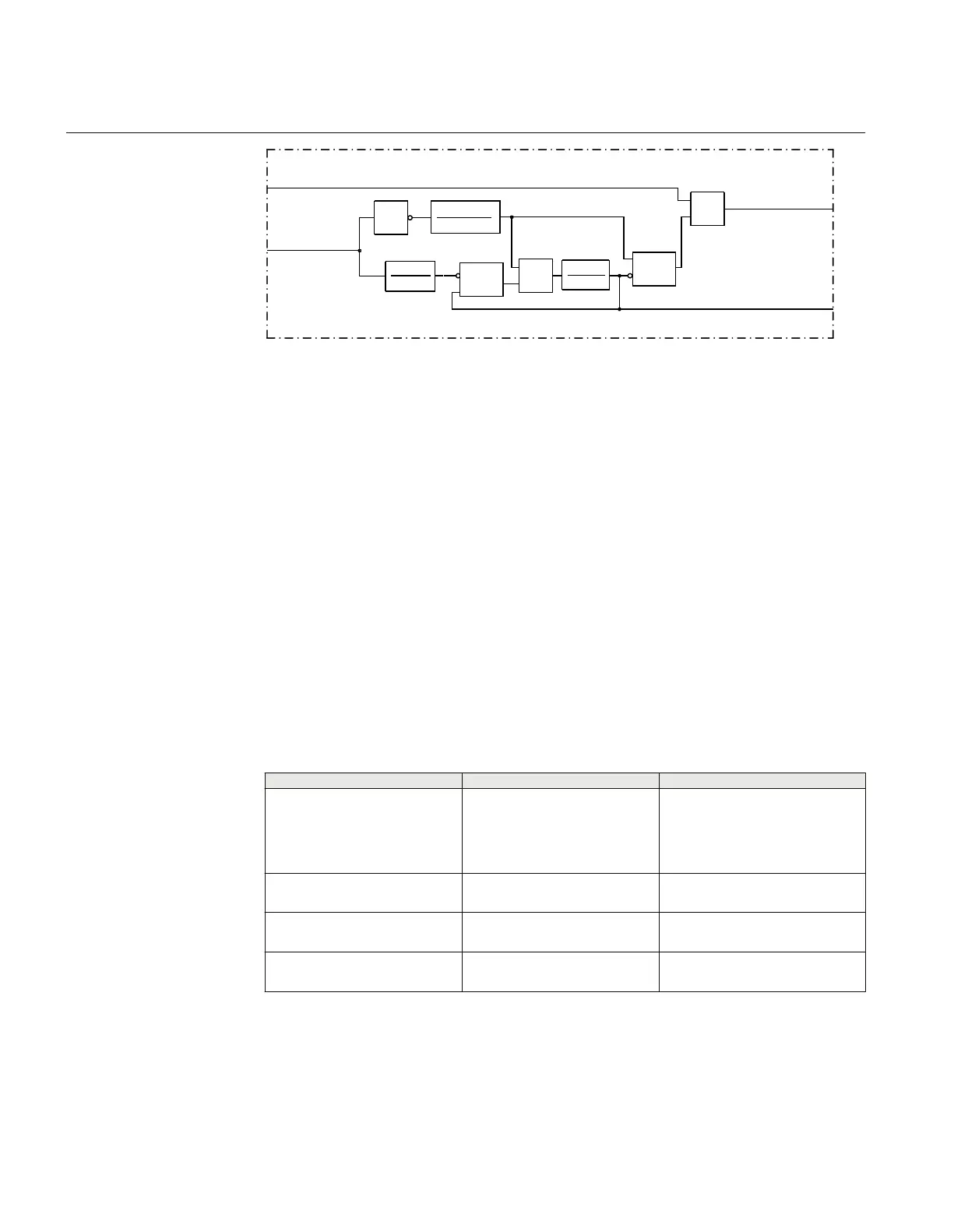

Figure 247: Guard signal logic with unblocking scheme
The unblocking function can be set in three operation modes (setting Unblock):
Disabled: The unblocking function is out of operation
No restart: Communication failure shorter than tSecurity will be ignored
If CR_GUARD disappears, a CRL signal will be transferred to the trip logic
There will not be any information in case of communication failure (LCG)
Restart Communication failure shorter than tSecurity will be ignored
It sends a defined (150 ms) CRL after the disappearance of the CR_GUARD signal
The function will activate LCG output in case of communication failure
If the communication failure comes and goes (<200 ms) there will not be recurrent
signaling
12.5.7 Technical data
Table 356: ECPSCH (85) technical data
Function
Range or value Accuracy
Scheme type Disabled
Intertrip
Permissive UR
Permissive OR
Blocking
-
Communication scheme
coordination time
(0.000-60.000) s ± 0.5% ± 25 ms
Minimum duration of a send
signal
(0.000-60.000) s ± 0.5% ± 25 ms
Security timer for loss of carrier
guard detection
(0.000-60.000) s ± 0.5% ± 25 ms
