Table 23: FNKEYTY1 Non group settings (basic)
Name Values (Range) Unit Step Default Description
Type Disabled
Menu shortcut
Control
-
- Disabled Function key type
MenuShortcut Menu shortcut for
function key
5.5 Operation principle
5.5.1 Local HMI
ANSI12000175 V1 EN

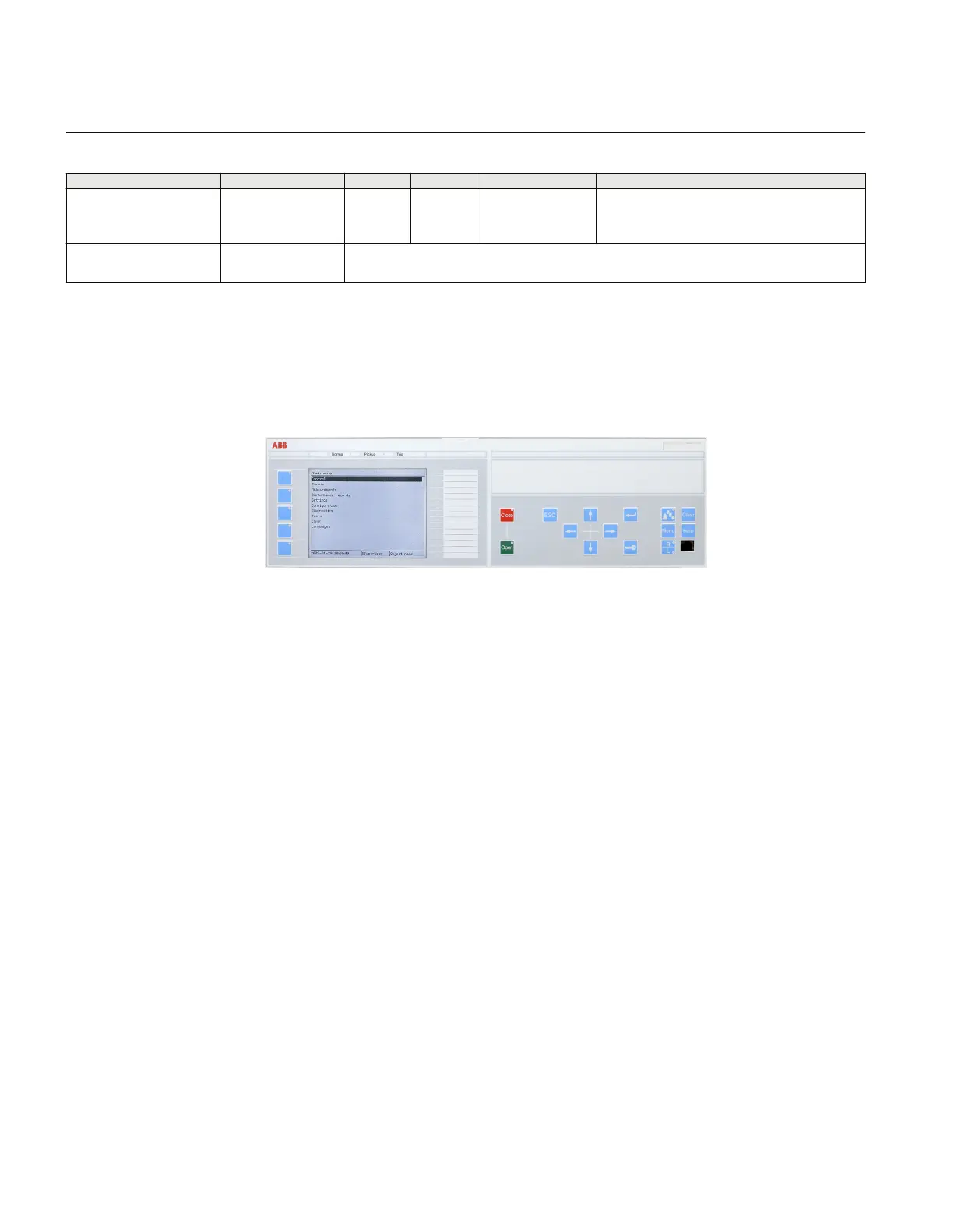

Figure 7: Local human-machine interface
The LHMI of the IED contains the following elements:
• Display (LCD)
• Buttons
• LED indicators
• Communication port for PCM600
The LHMI is used for setting, monitoring and controlling.
5.5.1.1 Display
The LHMI includes a graphical monochrome display with a resolution of 320 x 240
pixels. The character size can vary.
The display view is divided into four basic areas.
