IEC13000045 V1 EN

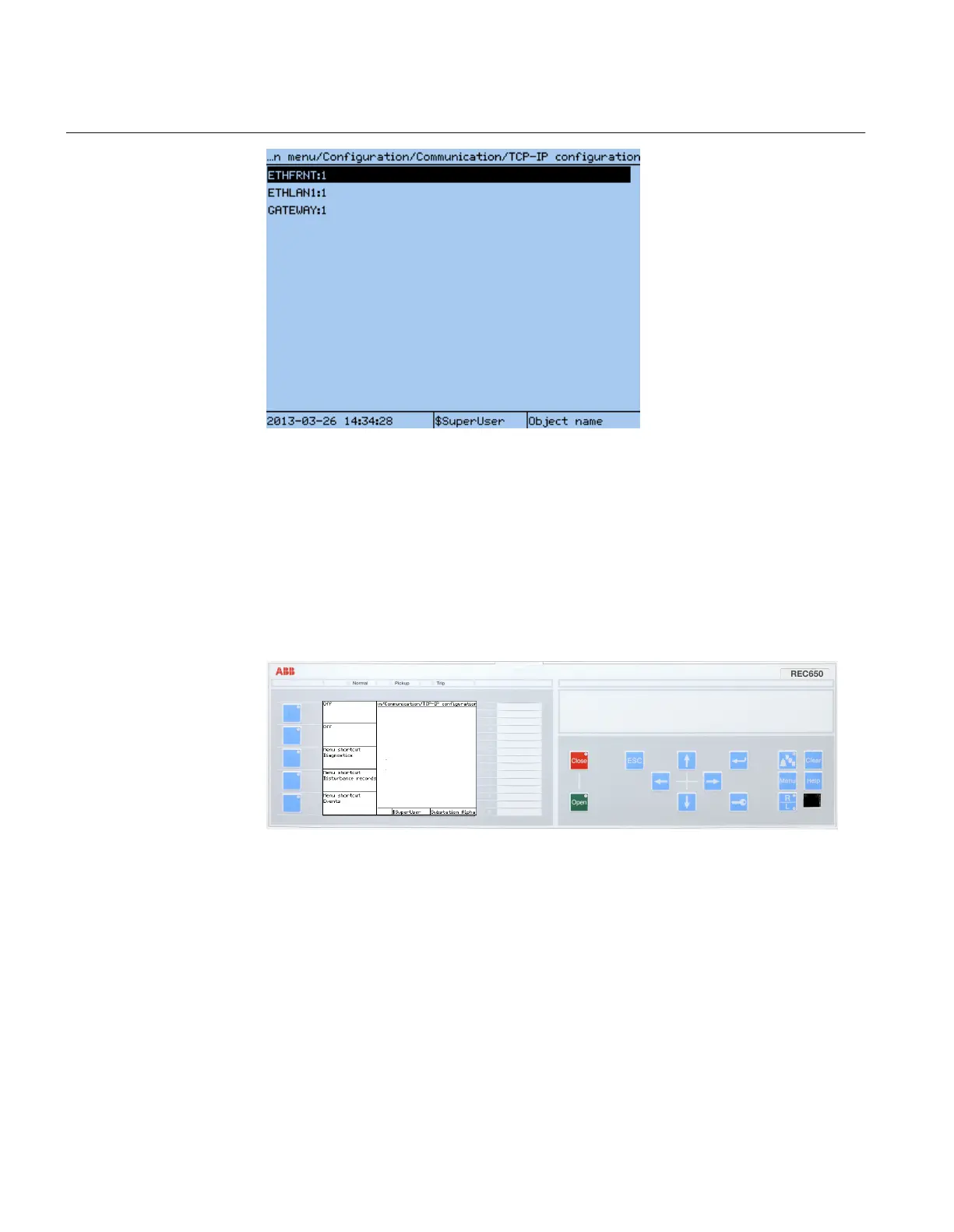

Figure 9: Truncated path
The number before the function instance, for example ETHFRNT:1, indicates the
instance number.
The function button panel shows on request what actions are possible with the function
buttons. Each function button has a LED indication that can be used as a feedback signal
for the function button control action. The LED is connected to the required signal with
PCM600.
ANSI12000025 V1 EN
Figure 10: Function button panel
The alarm LED panel shows on request the alarm text labels for the alarm LEDs. Three
alarm LED pages are available.
Section 5 1MRK 506 335-UUS A
Local Human-Machine-Interface LHMI
76
Technical manual
