29SCU200 INSITE ENERGY MANAGEMENT SYSTEM
• Wiring
Connection of SCU200 is based on the type of electric line available.
In case of DC network, connect the correspondent cables to the 24 VDC input. Otherwise, in case of AC
network, INS-PS-1 must be coupled to power SCU200.

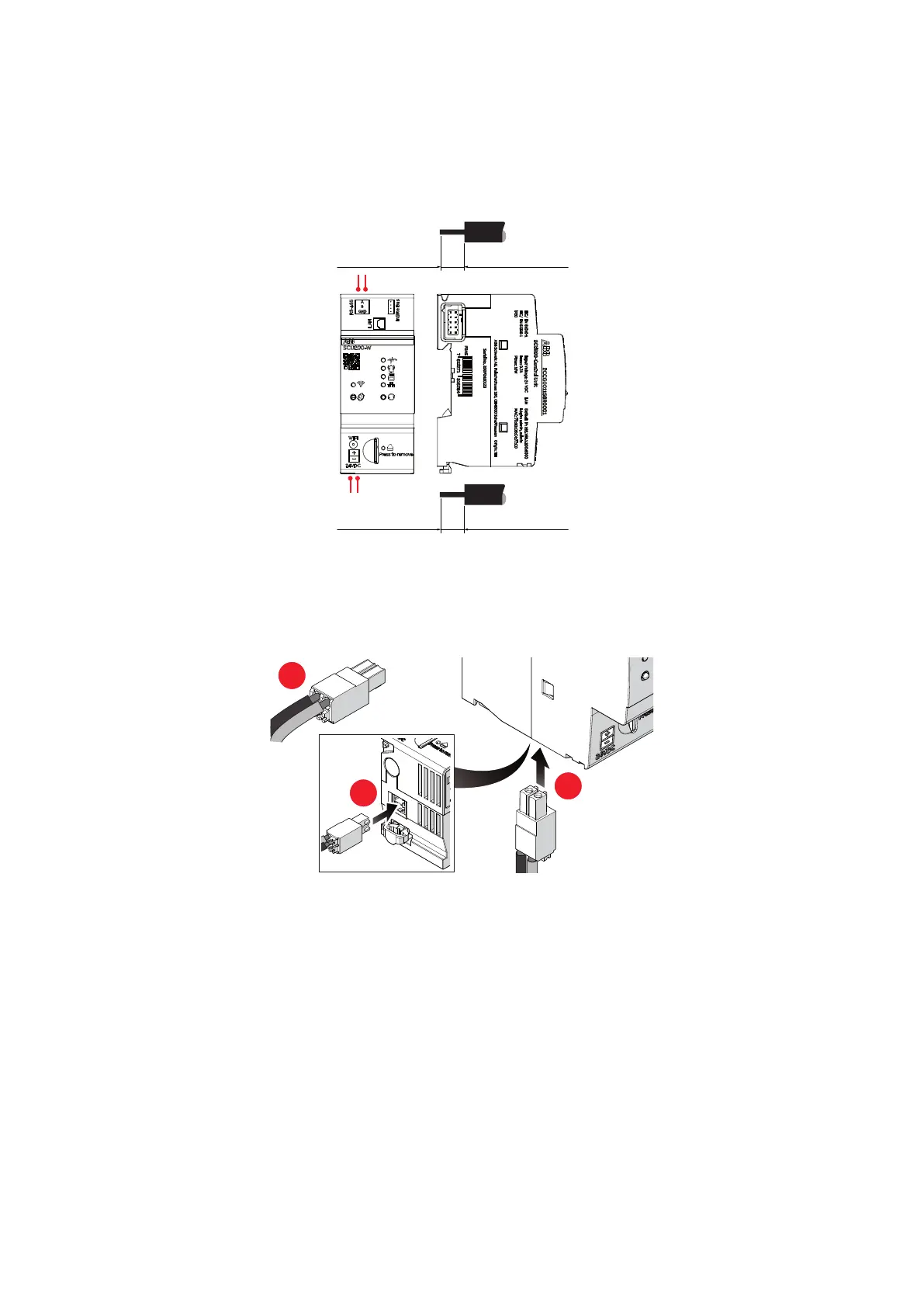

To supply the SCU200 with 24 VDC, first connect the cables to the adapter and then plug this is in the
connection port to 24 VDC of the SCU200.
1
2
3
10 mm
8...9 mm
max. 1.5 mm
2
AWG 28-16
max. 1 mm
2
AWG 28-17
